Name	Francis Scott Key Bridge

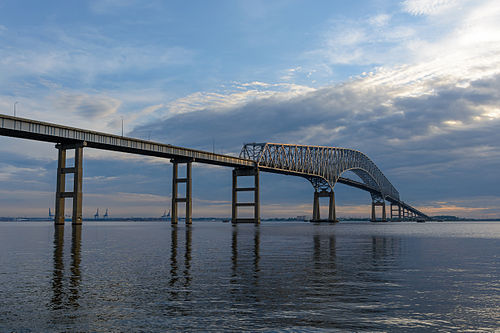

Caption	The Francis Scott Key Bridge crossing the Patapsco River
Coordinates	39.2025°N 76.5233°W
Carries	Maryland Route 695 (Baltimore Beltway)
Crosses	Patapsco River
Locale	Baltimore, Baltimore County, Dundalk
Owner	Maryland Transportation Authority
Designer	Modjeski and Masters
Design	Cantilever truss bridge
Material	Steel
Length	1,200 m
Mainspan	269 m
Clearance	55 m
Opened	1977

Key Bridge (Baltimore) is a major cantilever truss bridge spanning the Patapsco River in the Port of Baltimore, carrying Maryland Route 695 around Baltimore. Named for Francis Scott Key, the bridge provides a high-clearance shipping channel to the Sparrows Point and South Baltimore industrial areas and connects neighborhoods such as Dundalk and Lyndhurst. It is a critical link in regional transportation networks serving commuter, commercial, and maritime traffic, and it has featured in engineering studies and local cultural works.

History

The bridge project originated amid 1950s–1960s regional planning coordinated by the Maryland State Roads Commission and the Federal Highway Administration to complete the Beltway around Baltimore. Early proposals responded to industrial growth at Sparrows Point and increasing vessel sizes visiting the Port of Baltimore. Construction was approved during the administration of Governor Marvin Mandel and funded through state bonds and federal-aid highway programs administered by the Maryland Transportation Authority. The bridge opened to traffic in 1977 during the term of Mayor William Donald Schaefer, replacing earlier low-clearance crossings and shifting truck patterns that had long served Interstate 95 and U.S. Route 40 corridors.

Design and construction

Designed by the engineering firm Modjeski and Masters with fabrication by American steel producers linked to the Bethlehem Steel era, the structure uses a cantilever truss form common to mid-20th-century long-span crossings, sharing conceptual lineage with the Forth Bridge, Delaware Memorial Bridge, and Quebec Bridge. Architects and engineers coordinated with the U.S. Coast Guard and the Army Corps of Engineers to provide navigation clearances consistent with deep-draft vessels servicing the Chesapeake Bay and the Port of Baltimore terminals. Construction methods included large-scale erection of truss units from falsework and pontoons, heavy lift operations by marine cranes, and welding and riveting practices prevalent before wide adoption of continuous welded plate girder techniques.

Specifications and engineering

The bridge is a steel cantilever truss carrying six lanes of Maryland Route 695 across a main navigation span offering approximately 185 feet of vertical clearance, designed to accommodate vessels frequenting the Sparrows Point shipyards and the Seagirt Marine Terminal. Its mainspan and approach spans employ a truss depth profile calculated for wind loads defined by American Association of State Highway and Transportation Officials standards and for live loads derived from the American Railway Engineering and Maintenance-of-Way Association equivalency methods adapted for highway design. Load-bearing components include truss top chords, diagonal web members, and massive anchor piers founded on deep pile groups installed in the Patapsco River channel, with corrosion protection strategies involving coatings and cathodic measures informed by studies from the National Cooperative Highway Research Program.

Operations and tolling

Operated by the Maryland Transportation Authority, the crossing functions as a tolled facility integrated into regional revenue systems, with electronic toll collection utilizing transponders similar to E-ZPass implementations used statewide and interoperable with neighboring systems such as those administered by the Virginia Department of Transportation and the New Jersey Turnpike Authority. Toll policy has been subject to legislative action by the Maryland General Assembly, and revenues support maintenance, capital improvements, and debt service connected to bond issuances under state statutes overseen by the Maryland Department of Transportation. Traffic volumes reflect commuter peaks associated with employment centers including Johns Hopkins Bayview Medical Center, Martin State Airport, and industrial employers formerly at Bethlehem Sparrows Point Shipyard.

Incidents and maintenance

The bridge has been the site of notable incidents involving ship collisions and vehicular accidents requiring coordination among the Maryland Transportation Authority Police, the U.S. Coast Guard, and local emergency services such as the Baltimore County Fire Department. Periodic structural inspections follow protocols set by the Federal Highway Administration and utilize nondestructive evaluation techniques highlighted by the National Transportation Safety Board in case studies. Maintenance campaigns have addressed fatigue cracking, protective coating renewal, and deck rehabilitation funded through state capital programs; major rehabilitation projects have involved lane-width adjustments, seismic retrofit elements referenced in American Society of Civil Engineers guidance, and installation of modern monitoring systems informed by research at institutions like the Johns Hopkins University.

Cultural significance and media appearances

The bridge features in regional identity and has appeared in photographic work, documentary films, and broadcast news coverage related to the Port of Baltimore and Baltimore civic life, alongside landmarks such as the Inner Harbor (Baltimore), Fort McHenry National Monument and Historic Shrine, and the Oriole Park at Camden Yards. It figures in artistic depictions by local photographers and in print reporting by outlets including the Baltimore Sun and regional television affiliates, and it serves as a visual marker in logistics narratives concerning the Chesapeake Bay shipping lanes. Community groups, historical societies, and transportation scholars cite the bridge in discussions of mid-century infrastructure development and regional economic history tied to the legacy of Bethlehem Steel and maritime commerce.
