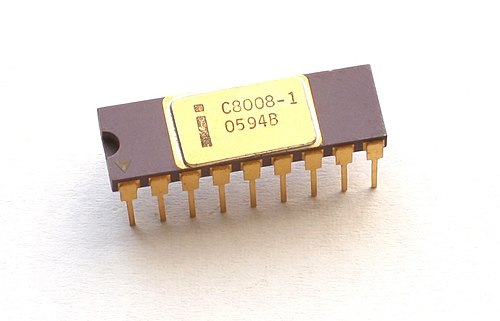

Intel 8008

Intel 8008
Konstantin Lanzet · CC BY-SA 4.0 · source
Name	Intel 8008
Designer	Federico Faggin, Ted Hoff, Masatoshi Shima
Introduced	1972
Bits	8-bit
Data width	8 bits
Address width	14-bit (external)
Clock	200–800 kHz (typical)
Transistors	3,500 (approx.)
Package	18-pin DIP

Intel 8008 The Intel 8008 was one of the earliest commercial 8-bit microprocessors, introduced in 1972 by Intel Corporation. It followed the earlier Intel 4004 design lineage and influenced subsequent designs from Motorola, Zilog, and Texas Instruments. The chip played a role in the emergence of personal computing alongside systems from MITS, Altair, and hobbyist projects driven by communities such as Homebrew Computer Club.

History

Development of the 8008 began after Busicom commissioned an integrated circuit design that led to the Intel 4004, with engineers Federico Faggin, Ted Hoff, and Masatoshi Shima contributing to the expanded design that became the 8008. Intel announced the device in 1972 amid competition from firms like Motorola and Texas Instruments, and during the same era as projects by Hewlett-Packard and National Semiconductor. The 8008's release coincided with the rise of microcomputer ventures such as Scelbi, MITS, and Processor Technology, and with industry events including the First Microprocessor Conference and trade shows like COMDEX. Early adopters included companies building terminals for DEC and experimental systems at universities like Stanford and MIT.

Architecture

The 8008 implemented an 8-bit accumulator-based architecture with registers and an external 14-bit address bus supporting up to 16 KB of memory. Its internal design evolved from mask-programmed logic used on the 4004 and incorporated bipolar transistor-transistor logic techniques known within companies such as Fairchild Semiconductor and Texas Instruments. The microarchitecture featured an ALU capable of arithmetic and logical operations, a small set of general-purpose registers, and a stack pointer for call/return sequences—concepts also used in later designs by Zilog and Motorola in products like the Z80 and Motorola 6800. The 8008 required external timing and support chips akin to families like Intel MCS-8.

Instruction set

The instruction set of the 8008 offered byte-oriented operations, branching, and subroutine-call instructions similar in spirit to instruction encodings later seen in the Z80 and Intel 8080. It provided load/store-like accumulator transfers, register-to-register moves, immediate arithmetic, logical operations, and conditional jumps influenced by earlier minicomputer architectures from DEC and PDP-8 design traditions. Stack and subroutine facilities supported nested calls and returns, parallels can be drawn to call semantics in the MOS Technology 6502 and branch conventions used by Motorola 6800 programmers. The opcode density and addressing modes constrained compiler writers at organizations such as Microsoft (early microcomputer toolchains) and academic compiler projects at University of California, Berkeley.

Implementation and packaging

Manufactured on early planar silicon processes, the 8008 used a 18-pin dual in-line package (DIP) that limited available signals, necessitating multiplexed buses and external timing circuitry similar to techniques used by Intel in subsequent MCS families. The pinout required external support chips for clock generation, memory interfacing, and I/O buffering—tasks later simplified by peripheral ICs from Intel, National Semiconductor, and Signetics. Production and test flows mirrored semiconductor industry practices at fabs affiliated with firms like RCA and AMD that later produced second-source processors. Packaging constraints influenced system design choices in microcomputers produced by companies such as Scelbi and Mark-8 builders.

Performance and comparisons

Clocking in at a few hundred kilohertz, the 8008's raw instruction throughput was modest compared with mid-1970s successors: the Intel 8080 offered higher clock rates and more orthogonal addressing, while the Motorola 6800 delivered different register sets and bus architecture. Compared with the MOS Technology 6502, introduced later, the 8008 lagged in cost-to-performance ratio and ease of system design. Contemporary comparisons were frequent in trade journals published by IEEE and ACM, and in product reviews in magazines such as Popular Electronics and Byte. Performance limitations spurred rapid innovation by companies including Intel and Zilog to meet demands from OEMs like Tandy Corporation and Radio Shack.

Applications and legacy

The 8008 found use in early terminals, cash registers, industrial controllers, and hobbyist microcomputers developed by firms such as Scelbi and individuals inspired by magazines like Radio-Electronics. Its architectural ideas influenced the design path leading to the Intel 8080, Z80, and later x86 family, shaping software ecosystems that included early operating systems from small software houses and toolchains from companies like Microsoft. The chip occupies a place in computing history alongside milestones such as the Altair 8800 launch and the formation of user groups like the Homebrew Computer Club, and it is preserved in collections of institutions such as the Computer History Museum and exhibits at Smithsonian Institution.
