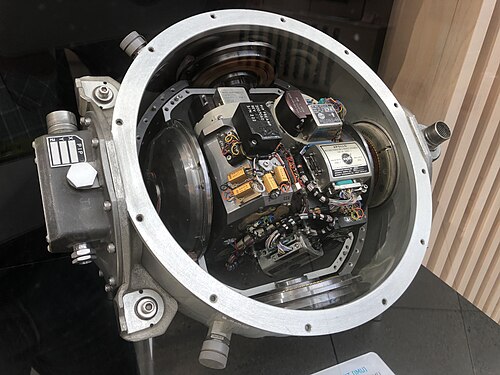

Inertial Measurement Unit
ArnoldReinhold · CC BY-SA 4.0 · source
Name	Inertial Measurement Unit
Type	Navigation sensor
Invented	Early 20th century
Inventor	Multiple
Used by	Aerospace, maritime, automotive, robotics

Inertial Measurement Unit

An Inertial Measurement Unit (IMU) is a compact sensor assembly that measures specific force, angular rate, and sometimes magnetic field to estimate motion and orientation. IMUs are integral to navigation systems, guidance computers, and control loops across platforms such as aircraft, spacecraft, ships, and autonomous vehicles. Modern IMUs range from high-performance laser-gyro suites used on satellites to microelectromechanical systems (MEMS) used in consumer electronics.

Introduction

An IMU typically integrates accelerometers, gyroscopes, and occasionally magnetometers into a unified package so that downstream systems such as flight control computers and navigation systems can compute velocity, attitude, and position. High-precision IMUs interface with systems like inertial navigation systems employed by platforms from Lockheed Martin and Northrop Grumman to Boeing and Airbus, while MEMS IMUs are mass-produced by firms such as STMicroelectronics, Bosch, and Analog Devices. IMUs are critical for autonomous systems developed by organizations including Tesla, Inc., SpaceX, and Boston Dynamics.

Components

Core components found in IMUs include: - Accelerometers: measure linear acceleration along axes using technologies licensed or produced by companies like Honeywell, Raytheon Technologies, and research institutions such as Massachusetts Institute of Technology. - Gyroscopes: measure angular rate and come in forms such as ring laser gyros developed by entities like British Aerospace affiliates, fiber optic gyros pioneered in research at Bell Labs, and MEMS gyros commercialized by InvenSense. - Magnetometers (optional): provide heading references with suppliers including Honeywell Aerospace and Northrop Grumman. - Signal conditioning and inertial navigation processors: implemented using processors designed by Intel, ARM Holdings, and embedded systems groups at Texas Instruments.

Mechanical and electronic subcomponents include mounting structures used in platforms by General Dynamics Land Systems and thermal control units comparable to those in spacecraft from NASA centers and contractors such as Blue Origin.

Principles of Operation

IMUs operate by transducing inertial forces into electrical signals that represent acceleration and angular velocity. Accelerometers exploit proof-mass displacement measured by capacitive, piezoelectric, or piezoresistive sensing pioneered in labs like Caltech and Stanford University. Gyroscopes exploit conservation of angular momentum, the Sagnac effect as used in ring laser gyros from teams at Oxford University, or Coriolis-induced motion in MEMS devices developed at University of California, Berkeley. Sensor fusion algorithms implemented in flight software from U.S. Department of Defense contractors and research groups at Carnegie Mellon University combine raw accelerometer and gyro outputs using techniques such as Kalman filtering conceived by researchers at NASA Jet Propulsion Laboratory and improvements by scholars at Princeton University.

Performance Metrics and Error Sources

Key performance metrics include bias instability, scale factor stability, noise density, bandwidth, and dynamic range—parameters documented in datasheets from Honeywell and Thales Group. Error sources comprise sensor bias, scale factor errors, misalignment, thermal drift (addressed by thermal vacuum testing at facilities like Johnson Space Center), random walk, and vibration-induced errors encountered by systems such as F/A-18 Hornet avionics and Arleigh Burke-class destroyer navigation suites. Error modeling and mitigation techniques derive from work at institutions including MIT Lincoln Laboratory and standards set by organizations such as IEEE and ISO.

Calibration and Alignment

Calibration corrects bias, scale, and misalignment using procedures employed by contractors like BAE Systems and research teams at Imperial College London. Techniques range from laboratory-based three-axis turntable characterization used in manufacturing plants of Thales Alenia Space to in-field aided calibration using GPS signals provided by Global Positioning System satellites and augmentation systems from Russian Aerospace Forces and European Space Agency. Alignment to reference frames often leverages star trackers on spacecraft from Ball Aerospace or magnetometer heading references cross-checked against data from NOAA.

Applications

IMUs are deployed across many domains: inertial navigation in aircraft such as the Boeing 787, attitude control of spacecraft like those built by SpaceX and Arianespace, missile guidance in systems produced by Lockheed Martin Missiles and Fire Control, stabilization of marine vessels including Royal Navy frigates, and motion sensing in consumer products from Apple Inc. and Samsung Electronics. Robotics platforms from Boston Dynamics and autonomous ground vehicles in programs at DARPA rely on IMUs combined with sensors from Velodyne Lidar and cameras like those developed by Sony Corporation. Geophysical and surveying applications use IMUs in instruments from Trimble Inc. and for field campaigns coordinated by institutions such as Scripps Institution of Oceanography.

History and Development

Foundational research into inertial sensing began with gyroscopic inventions in the 19th century and continued with navigation systems developed by entities like Vickers (company) and Sperry Corporation in the early 20th century. Progress accelerated during World War II with systems integrated on platforms from Royal Air Force and United States Navy vessels. The space age spurred high-precision IMU development for programs such as Apollo program and satellites from Intelsat, with contributors including Sperry Rand and Honeywell. Later miniaturization leveraged semiconductor MEMS advances at institutions like California Institute of Technology and industrialized by firms such as Analog Devices and InvenSense, enabling ubiquitous IMU use in consumer electronics and autonomous systems across the 21st century.
