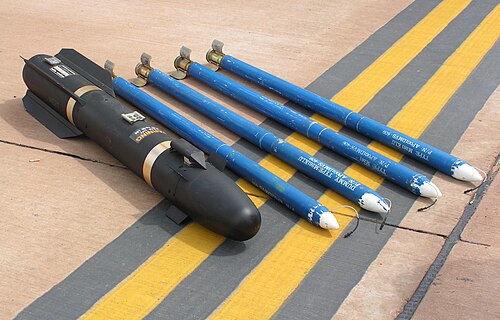

Hydra 70

Hydra 70
User:Dammit · CC BY-SA 2.5 nl · source
Name	Hydra 70
Type	70 mm unguided rocket
Origin	United States
Service	1970s–present
Used by	See Users and Operators
Manufacturer	General Dynamics, Nammo, Rheinmetall, BAE Systems
Weight	~9 kg (rocket motor)
Length	~1.63 m
Diameter	70 mm

Hydra 70 The Hydra 70 is a family of 70 mm (2.75 in) unguided rockets developed in the United States for rotary-wing and fixed-wing aircraft, adapting a lineage that includes the 2.75-inch Folding-Fin Aerial Rocket. It has been integrated onto platforms such as the AH-64 Apache, UH-60 Black Hawk, A-10 Thunderbolt II, F-16 Fighting Falcon and used in conflicts including the Gulf War, Iraq War and War in Afghanistan. Producers and integrators include General Dynamics, Nammo, BAE Systems, Rheinmetall and Northrop Grumman, with deployment doctrines influenced by forces like the United States Army, United States Air Force and NATO allies.

Design and Development

The design traces roots to earlier rocket systems fielded by the United States Navy and United States Marine Corps as part of post‑World War II aerial-rocket development programs led by manufacturers such as Aerojet and Thiokol, and later consolidated by defense contractors including General Dynamics and Lockheed Martin. Development emphasized compatibility with legacy launchers like the LAU-68, LAU-61 and M261 rocket pods used on helicopters such as the Bell AH-1 Cobra, Bell UH-1 Iroquois and Sikorsky UH-60 Black Hawk as well as fixed-wing aircraft including the Fairchild Republic A-10 and General Dynamics F-16. Engineering work focused on warhead modularity, solid-propellant motor reliability, and folding-fin stabilization to ensure effectiveness in counterinsurgency operations exemplified by doctrines from the United States Marine Corps and United States Army Aviation.

Specifications and Variants

The baseline rocket motor provides a common propulsion unit compatible with multiple warhead types and fuzing options; dimensions approximate 1.63 m length and 70 mm diameter with motor mass around 9 kg. Variants include training rounds, high-explosive fragmentation warheads, flechette, anti‑armor shaped charges, illumination, smoke, and practice cartridges developed by firms like Nammo, Nammo Raufoss, and Rheinmetall Denel Munition. Launchers and pods such as the LAU-10, LAU-61, LAU-68 and M260/M261 series support salvo and ripple firing patterns used by platforms like the AH-64, Bell AH-1Z Viper, McDonnell Douglas AV-8B Harrier II and Boeing AV-8B derivatives. Guided derivatives include the Advanced Precision Kill Weapon System produced in cooperation with Lockheed Martin, BAE Systems and Raytheon.

Warheads and Fuzing

Warhead options include high-explosive fragmentation for use against personnel and light materiel, shaped-charge anti‑armor warheads for use against armored vehicles, and specialized munitions such as the M257 smoke, M276 illumination, and training inert rounds. Fuzing options span point-detonating, proximity, and delay types developed to engage targets in environments ranging from urban operations in Baghdad to desert engagements in Kuwait; manufacturers and design authorities include Picatinny Arsenal, United States Army Armament Research, Development and Engineering Center, and international ordnance firms. Newer warhead concepts have been tested to meet requirements set by NATO partners, the United States Defense Advanced Research Projects Agency and allied research establishments.

Launch Platforms and Integration

Integration has been accomplished on a wide range of aircraft and launchers: helicopters like the AH-64 Apache, AH-1 Cobra, UH-60 Black Hawk, CH-47 Chinook; fixed-wing aircraft including the A-10 Thunderbolt II, F-16 Fighting Falcon, AV-8B Harrier II, and light attack platforms such as the Embraer EMB 314 Super Tucano. Naval vessels including patrol craft and littoral combat ships have used stabilized launchers derived from LAU-series pods, and ground vehicles and remote weapon stations have been configured to fire rocket pods in expeditionary roles exemplified by developments from General Dynamics Land Systems and Kongsberg. Integration programs have involved avionics suites from Honeywell, mission systems by Northrop Grumman, and weapons integration centers at Edwards Air Force Base and Yuma Proving Ground.

Operational History

Employed extensively during Operation Desert Storm, Operation Iraqi Freedom, and Operation Enduring Freedom, these rockets provided close air support, suppression of enemy air defenses, and area interdiction in cooperation with units such as the 101st Airborne Division, Marine Expeditionary Units, and coalition air forces including the Royal Air Force and Australian Defence Force. Combat usage included engagements against armored vehicles, fortifications and insurgent positions in urban and desert theaters, with tactics developed alongside doctrine from United States Central Command, NATO rapid reaction forces, and interservice close air support coordinators. Testing and evaluations took place at ranges such as Nellis Air Force Base and White Sands Missile Range, with after‑action reports informing modernization programs.

Users and Operators

Primary operators include the United States Army, United States Marine Corps and United States Air Force, with international operators among NATO members such as the United Kingdom, France, Germany, Italy, Spain and Norway, as well as non‑NATO users including Israel, Saudi Arabia, United Arab Emirates, Australia, Japan and South Korea. Defense procurement and sustainment programs have involved agencies like the Defense Logistics Agency, Ministries of Defence across Europe and Asia, and contractors including BAE Systems, Rheinmetall, Nammo and Thales for localized supply and maintenance.

Accuracy, Guidance, and Modernization

Efforts to improve accuracy produced semi‑active and laser‑guided variants such as the Advanced Precision Kill Weapon System developed with Lockheed Martin, Raytheon and Northrop Grumman, integrating seekers similar to those used on guided bombs and missiles deployed by the United States Air Force and United States Navy. Modernization programs focus on precision guidance kits, networked targeting from systems like JTACs and AWACS, and integration with targeting pods from companies such as L3Harris and Leonardo, responding to lessons from asymmetric conflicts and precision‑strike initiatives driven by the Office of the Under Secretary of Defense for Research and Engineering and NATO modernization directives.
