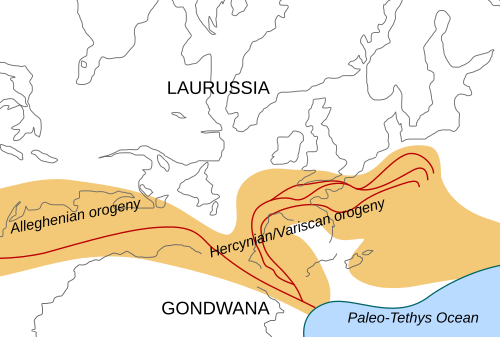

Hercynian orogeny

Hercynian orogeny
Woudloper · CC BY-SA 1.0 · source
Name	Hercynian orogeny
Period	Late Paleozoic
Type	Orogenic belt
Location	Europe; North Africa; eastern North America

Hercynian orogeny The Hercynian orogeny was a Late Paleozoic mountain-building episode that profoundly reshaped the continents now known as Europe, North Africa, and eastern North America. It resulted from the convergence and collision of Paleozoic microcontinents and major plates linked to the assembly of the supercontinent Pangaea, producing extensive deformation, metamorphism, magmatism, and basin development across regions such as the Massif Central, the Bohemian Massif, the Cantabrian Zone, and the Appalachian Mountains. Studies of the event draw on evidence from structural geology, isotopic geochronology, paleomagnetism, and sedimentary basin analysis involving institutions like the British Geological Survey, the Geological Survey of Spain, and the Geological Survey of Canada.

Overview

The orogeny marks a composite collision involving terranes and microplates including the Armorican Block, the Avalonia terrane, and fragments of the Baltic Shield, with interactions among the Rheic Ocean and the Variscan Belt margins. Prominent researchers and institutions that advanced understanding include Eduard Suess-era syntheses and later syntheses by geologists at the University of Cambridge, Université de Rennes, and the University of Göttingen. Regional expressions were documented in classical fieldwork across the Massif Armoricain, the Cantabrian Mountains, the Eifel, and the Bohemian Massif, and informed by mapping campaigns from the Service géologique national and the United States Geological Survey.

Tectonic Setting and Phases

Tectonic models invoke closure of the Rheic Ocean and accretion of the Armorican microcontinent against Gondwana-derived margins including parts of Laurussia and the Cathaysian Block, progressing through distinct phases recognized in stratigraphic and structural records. Early convergence involved subduction and arc magmatism documented in granitic suites near the Sierra de Guadarrama and the Massif Central, followed by continental collision producing crustal thickening in the Bohemian Massif and large-scale thrusting recorded in the Cantabrian Zone. Terminal collapse and extensional rebound during Permian times reactivated structures seen in the Rhine Graben and influenced volcanism in regions like the Eifel volcanic fields. Key proponents of phase-based models include researchers affiliated with the University of Salamanca, RWTH Aachen University, and the Geological Survey of Belgium.

Geological and Metamorphic Features

Metamorphic gradients range from greenschist to amphibolite and locally granulite facies across the orogenic belt, with high-pressure relics reported in the Silesian Unit and contact aureoles adjacent to batholiths such as the Coimbra Batholith. Structural fabrics include pervasive cleavage, major thrust sheets like the Central Iberian Zone nappes, and widespread ductile shear zones exemplified by the Variscan shear belts of western France. Igneous associations include calc-alkaline and peraluminous granites, syn- to post-tectonic granodiorites, and mafic-ultramafic bodies linked to subduction processes, emplaced contemporaneously with metamorphism recorded by metamorphic assemblages in the Bohemian Massif and the Massif Central.

Regional Expressions (Europe, North Africa, Americas)

Europe: The orogeny's imprints are preserved in the Massif Central, Armorican Massif, Cantabrian Mountains, Bohemian Massif, Saxothuringian Zone, and the Rhenish Massif, with classic localities studied by teams from the University of Coimbra and the Sorbonne. North Africa: Correlative deformation affected the northern margins of Gondwana including the Rif, the Atlas Mountains, and areas mapped by the Institut Scientifique and national surveys in Morocco and Algeria. Americas: Equivalent Late Paleozoic deformation is recorded in the central and southern sectors of the Appalachian Mountains, notably in the Alleghanian orogeny-related sequences, and in terranes examined by the Geological Survey of Canada and the United States Geological Survey.

Paleogeography and Plate Reconstructions

Plate reconstructions situate microcontinents such as Avalonia between major plates during the Ordovician to Carboniferous, with closure of the Rheic Ocean and final amalgamation into Pangaea during the Carboniferous-Permian. Paleomagnetic data from rocks of the Bohemian Massif, Armorica, and the Appalachian orogen are integrated with models advanced by groups at the Institute of Earth Sciences (Iceland) and the Max Planck Institute for Chemistry to refine latitudinal positions and relative rotations of the involved plates. Reconstructions rely on stratigraphic correlations with sequences in the Cantabria region, isotopic signatures tied to the U–Pb systems, and basin-fill comparisons across the Iberian Peninsula and the British Isles.

Economic Geology and Mineralization

Orogen-related mineral deposits include orogenic gold occurrences in the Massif Central and the Central Iberian Zone, massive sulfide deposits near the Cornubian Batholith, and skarn and porphyry systems adjacent to Variscan intrusions studied by the Mineralogical Society of Great Britain and Ireland. Base-metal occurrences, lead-zinc veins, and tin-tungsten mineralization have been exploited historically in regions like Cornwall, the Bavarian Forest, and the Sierra Morena, with mining records held by institutions such as the British Museum and national geological surveys. Hydrocarbon-bearing basins influenced by Variscan tectonics include foreland basins documented in the North Sea Basin and Permo-Carboniferous units explored by energy companies and research centers including TotalEnergies-funded studies.

Chronology and Geochronology Studies

Temporal constraints derive from radiometric dating techniques including U–Pb zircon geochronology, ^40Ar/^39Ar dating of micas and amphiboles, and Rb–Sr whole-rock systems applied to synorogenic granitoids and metamorphic rocks across the belt. Key ages cluster in the Devonian to Permian interval, with peak deformation commonly dated to the Late Carboniferous; pioneering dates were produced by laboratories at ETH Zurich, the University of Minnesota, and the Smithsonian Institution. Integrated chronostratigraphic frameworks combine biostratigraphy using faunas from the Rhinestreet Formation and isotopic calibration from sequences studied by the Natural History Museum, London and the Museo Geominero.

Category:Orogenies
