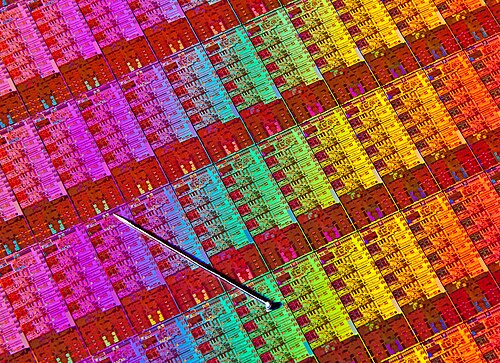

Haswell microarchitecture
Intel Free Press · CC BY 2.0 · source
Name	Haswell
Date	2013
Designer	Intel
Architecture	x86-64
Microarchitecture	Haswell
Process	22 nm
Cores	2–18
Socket	LGA 1150, LGA 2011-3, BGA

Haswell microarchitecture is a fourth-generation Intel Core microarchitecture introduced by Intel Corporation in 2013. It succeeded the Ivy Bridge microarchitecture and preceded the Broadwell microarchitecture in Intel's roadmap, targeting desktop computer, laptop, and server markets. Haswell combined refinements to out-of-order execution, branch prediction, and SIMD units with new power-management features to improve performance per watt for consumer and enterprise platforms such as Ultrabook designs and data center deployments.

Overview

Haswell was announced alongside product families including Core i7, Core i5, and Core i3 for clients and Xeon variants for servers, aligning with Intel's tick–tock cadence that previously paired Ivy Bridge and Broadwell microarchitecture. The design targeted competition from Advanced Micro Devices and was positioned against contemporaneous offerings from vendors in the PC industry and mobile computing markets. Major platform introductions using Haswell included systems by Dell, HP Inc., Lenovo, Apple Inc., and Microsoft Corporation Surface devices.

Design and microarchitecture

The Haswell pipeline extended concepts from Nehalem and Sandy Bridge families: wider instruction dispatch, deeper out-of-order windows, and enhanced micro-op cache mechanisms originally refined in earlier Intel cores. It retained a 22 nm tri-gate transistor process developed at Intel fabs such as those in Oregon and Arizona, and integrated an on-die system agent combining the memory controller and PCI Express links used by platforms including LGA 1150 and LGA 2011-3. Haswell introduced an improved AVX2 instruction set and doubled Fused Multiply-Add resources, benefiting workloads common to High-Performance Computing centers and content-production suites from companies like Adobe Systems and Autodesk. The microarchitecture increased the size of the L1, L2, and L3 caches in certain SKUs and refined the branch predictor elements traced back to research at institutions like University of California, Berkeley and Massachusetts Institute of Technology that influenced speculative execution strategies.

Performance and power features

Haswell emphasized energy efficiency through new power domains and dynamic power gating coordinated by Intel's on-die power management, enabling aggressive idle-state savings for devices such as Ultrabook notebooks from Acer and Asus. The design included integrated voltage regulator support in some packages and improved Turbo Boost algorithms allowing higher single-thread frequencies under thermal constraints in systems by Intel partners like Alienware and Razer Inc.. Vector extensions like AVX2 and integer instruction improvements increased throughput for workloads run by Microsoft Azure and Amazon Web Services instances using Xeon models. Graphics performance was upgraded with Intel HD and Iris implementations to better support APIs such as DirectX and OpenGL used by titles from Electronic Arts, Activision Blizzard, and Valve Corporation.

Variants and product implementation

Haswell shipped across a broad SKU matrix: consumer desktop computer chips for gaming rigs by ASUS Republic of Gamers and MSI, mobile U-series parts for ultra-thin notebooks from Samsung Electronics and Sony Corporation, and server-grade Xeon E3/E5 variants for enterprise customers including Cisco Systems and Dell EMC. Special SKUs included low-power Y-series parts for fanless designs in devices by Lenovo and integrated-package BGA models in compact systems by Intel NUC partners. Platform chipsets paired with Haswell included Intel 8-series controllers used on motherboards by manufacturers such as Gigabyte Technology and ASRock, while workstation and server implementations were validated by independent labs and consortiums like SPEC.

Security and vulnerabilities

As with several contemporary microarchitectures, Haswell's speculative execution and caching mechanisms were subject to research that uncovered classes of vulnerabilities affecting transient execution, leading to mitigations coordinated by Intel Corporation with major operating system vendors including Microsoft Corporation, Red Hat, and Canonical (company). Public disclosures and security advisory workflows involved organizations such as CERT Coordination Center and academic groups from University of Pennsylvania and Graz University of Technology, prompting microcode updates and firmware changes distributed via OEMs like HP Inc. and Dell. Patches impacted performance in some server workloads, a concern for operators of infrastructure by Google and Facebook, which implemented mitigations in large-scale deployments.

Reception and legacy

Industry reviewers from outlets like AnandTech, Tom's Hardware, and PC Magazine praised Haswell for improved single-thread performance and power efficiency that enabled thinner notebooks from vendors such as Apple Inc. and revitalized integrated graphics capability for casual gaming and media playback. In enterprise environments, Haswell-based Xeon platforms powered virtualization and cloud services by providers including Amazon Web Services and Microsoft Azure for several years. The architecture influenced subsequent Intel designs including Broadwell microarchitecture and informed debates within standards bodies and research groups at institutions such as Carnegie Mellon University and ETH Zurich regarding speculative execution security and microarchitecture transparency. Haswell remains a reference point in processor history for the trade-offs between performance, power, and security in modern microprocessors.
