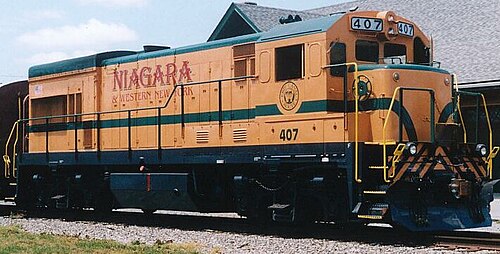

GE U18B

GE U18B
User:BMRR · CC BY-SA 2.5 · source
Name	GE U18B
Powertype	Diesel-electric
Builder	General Electric
Builddate	1974–1976
Totalproduction	74
Aarwheels	B-B
Primemover	GE 7FDL-8
Enginetype	Four-stroke V8 diesel
Poweroutput	1,800 hp
Disposition	Some preserved, most retired or scrapped

GE U18B is a four-axle diesel-electric road switcher built by General Electric for North American railroad service during the mid-1970s. Designed for light to medium freight and branch-line duties, it combined a compact GE 7FDL prime mover with GE]']s electrical transmission technology, aiming to compete with models from Electro-Motive Division and Alco. The model saw service with several regional and major carriers and later migrations into leasing fleets and shortline operations.

Design and Development

GE developed the U18B as part of its Universal series to address needs identified by Chicago and North Western Railway, Missouri Pacific Railroad, and other Class I carriers during the 1970s diesel roster renewals. Drawing on lessons from the U23B and U30B programs, GE scaled the 7FDL family to an eight-cylinder layout to meet 1,800 horsepower ratings while retaining the B-B truck arrangement used on earlier Universal Series units. Engineering emphasized interchangeability with common GE components found in locomotives delivered to Southern Pacific Company, Penn Central Transportation Company, and Conrail predecessors, facilitating parts logistics across multiple maintenance facilities. The U18B incorporated electrical systems linked to GE's established generator and traction motor designs, mirroring approaches used in locomotives serving Santa Fe and Union Pacific Railroad routes.

Specifications

The U18B's powerplant was the GE 7FDL-8, an eight-cylinder, four-stroke V engine derived from the broader 7FDL family used in a variety of GE road units. The locomotive produced 1,800 brake horsepower, delivered through a GE main alternator to four GE traction motors mounted on two B-B trucks similar to those on GE B-B designs used by Canadian Pacific Railway and Baltimore and Ohio Railroad. Dimensions and weight placed it within the light road-switcher category favored by regional railroads and shortline railroads for branch-line service. Onboard systems featured train air braking compatible with Freight car standards, multiple-unit control systems compatible with AAR practice, and a standard cab layout comparable to GE's other Universal series cabs seen on units ordered by Seaboard System Railroad and Gulf, Mobile and Ohio Railroad.

Production and Service History

GE built 74 units between 1974 and 1976 for a mix of Class I customers and leasing companies. Early operators included Denver and Rio Grande Western Railroad-era purchasers and regional carriers responding to roster modernization programs following mergers such as those involving Illinois Central and Missouri–Kansas–Texas Railroad. In revenue service the U18B handled local freight, branch-line turns, and transfer runs on secondary mainlines; its modest axle load and four-axle arrangement made it suitable for lighter track conditions found on lines formerly operated by Central of Georgia Railway and Lehigh Valley Railroad. Through the late 1970s and 1980s units migrated into shortline service with operators like Genesee & Wyoming, Short Line subsidiaries, and independent leasing firms that supplied equipment to Amtrak corridors or industrial customers. Many units were retired, sold for parts, or rebuilt during the deregulation and consolidation waves following the Staggers Rail Act era reshaping of freight operations.

Variants and Modifications

Although GE did not produce a wide family of factory variants of the U18B, several units underwent aftermarket modifications and rebuilds. Shops at GE Transportation divisions, regional diesel shops at Morrison-Knudsen, and contractor facilities such as those affiliated with National Railway Equipment Company performed repowering, microprocessor control retrofits, and dynamic braking installations on a subset of U18Bs to meet evolving service demands. Leasing companies applied rebuilt electrical systems to integrate multiple-unit operation compatibility with contemporary EMD and GE fleets, and some units received upgraded cabs influenced by ergonomic changes implemented on later models used by CSX Transportation and Norfolk Southern Railway subsidiaries. Specific rebuild programs mirrored efforts seen in programs for U23B and U30B rebuilds undertaken during the 1980s and 1990s.

Preservation and Museum Units

A handful of U18B examples survive in preservation and museum custody, often displayed alongside contemporaneous diesel models from Electro-Motive Division and Alco collections. Preserved units appear at small railroad museums, tourist railroad rosters, and corporate heritage collections maintained by regional historical societies that also curate artifacts related to rail transport history in locales previously served by Class I roads. Several units occupy static display positions or operate on excursion schedules run by volunteer groups and municipal heritage organizations, contributing to public interpretation efforts concerning 1970s-era dieselization and North American freight railroading transitions.
