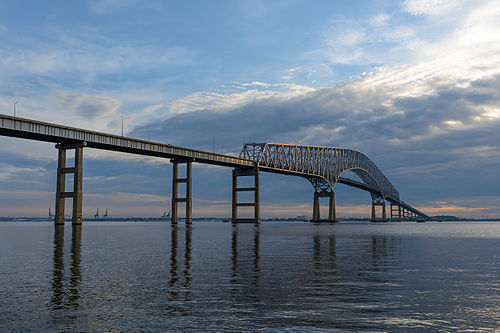

Francis Scott Key Bridge (Baltimore)

Francis Scott Key Bridge (Baltimore)
Patorjk · CC BY-SA 4.0 · source
Name	Francis Scott Key Bridge
Carries	Interstate 695 (Baltimore Beltway)
Crosses	Patapsco River (South) / Baltimore Harbor
Locale	Baltimore, Maryland
Other name	Key Bridge
Owner	Maryland Transportation Authority
Maint	Maryland Transportation Authority
Design	Continuous truss bridge
Material	Steel
Length	1,200 m (approx.)
Mainspan	1,200 ft (approx.)
Below	185 ft
Begin	1972
Complete	1977
Open	March 1977

Francis Scott Key Bridge (Baltimore) is a continuous truss bridge carrying Interstate 695 across the Patapsco River and Baltimore Harbor in Maryland. Named for Francis Scott Key, the author of "The Star-Spangled Banner", the bridge links southeastern Baltimore County with the city of Baltimore and serves as a critical component of the Baltimore Beltway network. It is managed by the Maryland Transportation Authority and is noted for its clearance for maritime traffic and its role in regional freight, commuter, and port access.

History

Planning for a high-clearance crossing of the lower Patapsco River grew from postwar expansion of the Port of Baltimore, increasing automobile and truck traffic on the Interstate Highway System, and state initiatives following the creation of the Maryland Transportation Authority and the passage of federal highway acts during the 1950s and 1960s. The bridge was proposed as part of the Interstate 695 Beltway improvements to relieve congestion on earlier crossings such as the Baltimore Harbor Tunnel, Fort McHenry Tunnel, and surface routes near Baltimore City. Groundbreaking followed approvals from the Federal Highway Administration and coordination with the United States Army Corps of Engineers for navigational clearances. Construction occurred in the 1970s and the structure opened to traffic in March 1977 during a period of urban and port modernization that also saw developments at Seagirt Marine Terminal and Sparrows Point shipyards.

Design and construction

Engineers selected a continuous truss configuration to achieve the long clear span required for maritime access to the Franklin Wharf and deepwater terminals serving container and bulk vessels, balancing structural rigidity with economic use of steel. The design team collaborated with major contractors experienced on large truss projects linked to industrial harbors, influenced by earlier American truss bridges and modern standards from the American Association of State Highway and Transportation Officials. Construction involved cofferdam work for piers, incremental launching and assembly of truss sections, and installation of expansion joints and bearings suited for thermal and seismic movements consistent with regional codes. Coordination with the United States Coast Guard and the Maryland Port Administration was essential to maintain navigational channels during erection.

Specifications and engineering

The bridge is a steel continuous truss with multiple spans and a central navigation span providing approximately 185 feet of vertical clearance above mean high water to accommodate large commercial ships calling at the Port of Baltimore terminals such as Seagirt Marine Terminal and Dundalk Marine Terminal. Its mainspan length and overall deck geometry were optimized for interstate traffic loads defined in the AASHTO LRFD Bridge Design Specifications and for heavy truck regimes serving regional distribution centers and intermodal facilities linked to the CSX Transportation and Norfolk Southern Railway networks. Structural elements include high-strength riveted and bolted steel members, steel floorbeams, and orthotropic deck components. The bridge incorporates navigational lighting and electronic monitoring systems for load and fatigue assessment managed by the Maryland Transportation Authority.

Traffic, usage, and tolling

As part of Interstate 695, the crossing carries commuter and through freight traffic circumnavigating Baltimore City, offering an alternative to downtown routes and the interstate tunnels. Traffic composition includes passenger vehicles, long-haul trucks servicing the Port of Baltimore and regional logistics centers, and local commuter flows toward southeastern suburbs such as Essex, Maryland and Dundalk. Tolling has been implemented and adjusted by the Maryland Transportation Authority, with electronic toll collection systems interoperable with regional programs and policies aligned to statewide revenue and maintenance funding. Traffic counts vary seasonally and with port activity; the crossing is a principal artery for detoured traffic when incidents close other harbor crossings.

Incidents and safety

The bridge has been the scene of notable incidents involving vessel strikes, vehicle collisions, and periodic structural inspections that revealed fatigue issues consistent with heavy truck flow on truss members. Emergency responses have involved the Maryland State Police, Baltimore County Fire Department, and the United States Coast Guard for marine-related events. After isolated accidents, service disruptions prompted temporary lane closures, structural assessments, and public safety advisories issued by the Maryland Transportation Authority. Lessons from incidents contributed to updated maritime approach channel controls, navigational aids, and reinforcement of collision protection for piers.

Maintenance and rehabilitation

Ongoing maintenance programs address corrosion protection, painting of steel members, replacement of bearings and expansion joints, deck resurfacing, and fatigue monitoring per asset-management practices influenced by the American Association of State Highway and Transportation Officials and federal bridge inspection standards. Rehabilitation projects have included targeted strengthening of truss components, upgrade of barrier systems, and modernization of inspection technologies such as structural health monitoring sensors. Funding for large-scale rehabilitation has come from state transportation budgets and toll revenues, coordinated with capital improvement plans affecting the Maryland Port Administration and regional freight corridors.

Cultural significance and in popular media

The bridge's name evokes Francis Scott Key and the patriotic resonance of "The Star-Spangled Banner", linking the structure to local heritage sites such as Fort McHenry National Monument and Historic Shrine and the broader historic narrative of Baltimore's role in the War of 1812. Iconography of the crossing appears in regional media coverage of port activity, transportation planning, and infrastructure debates; it has been featured in news reports by outlets covering events on the Patapsco River and in photographic archives documenting industrial landscapes around Baltimore Harbor. The bridge figures in civic discussions about mobility, maritime commerce, and the visual character of the harbor approaches.
