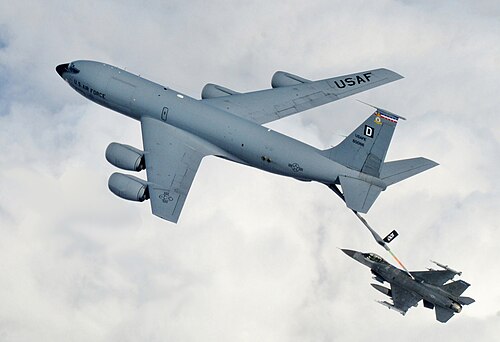

Caption	Aerial refueling boom during contact
Type	Aerial refueling device
Invented	1950s
Maker	Boeing, McDonnell Douglas
Used by	United States Air Force, Royal Air Force, People's Liberation Army Air Force
Wars	Vietnam War, Gulf War, Operation Enduring Freedom

Flying Boom The flying boom is a rigid, telescoping aerial refueling device used to transfer fuel between tanker and receiver aircraft during flight. It is central to United States Air Force strategic reach, enabling operations by aircraft such as the Boeing B-52 Stratofortress, Lockheed Martin F-22 Raptor, and McDonnell Douglas F-15 Eagle. Employed by tanker platforms like the Boeing KC-135 Stratotanker and Boeing KC-46 Pegasus, the boom couples with a receptacle on the receiver to deliver high-rate fuel transfer.

Overview

Aerial refueling using the flying boom links tanker platforms and receivers to extend range for assets including Northrop Grumman B-2 Spirit, Rockwell B-1 Lancer, and Fairchild Republic A-10 Thunderbolt II. The system contrasts with probe-and-drogue refueling used by aircraft such as the McDonnell Douglas F/A-18 Hornet and platforms from navies like the Royal Navy. Developed for rapid fuel throughput to support large strategic and tactical airframes, the boom integrates with avionics suites from manufacturers such as Honeywell International and Rockwell Collins to coordinate refueling envelopes.

History and Development

Early development traces to post‑World War II initiatives by companies like Boeing and Douglas Aircraft Company to meet requirements set by the United States Air Force and strategic planners involved in Strategic Air Command operations. Prototypes emerged in the 1950s alongside tanker conversions including the Boeing KC-97 Stratofreighter and later dedicated tankers such as the Boeing KC-135 Stratotanker. Cold War demands, exemplified by crises like the Berlin Airlift aftermath and missions during the Vietnam War, accelerated refinement of boom hydraulics, optics, and flight control integration. Upgrades in the 1990s and 2000s incorporated fly-by-wire and remote vision systems influenced by programs tied to McDonnell Douglas and later Boeing mergers.

Design and Components

The boom assembly comprises a rigid telescoping arm, aft-mounted actuators, a boom operator station, and coupling hardware that mates with a receiver's fuel receptacle such as those on Boeing F-15E Strike Eagle variants. Core subsystems include hydraulic actuators from suppliers like Parker Hannifin, control surfaces integrated with flight control computers from Honeywell International, and sensor suites that may reference avionics protocols developed by Raytheon Technologies. The operator station, historically a prone or seated position in tankers such as the KC-135 Stratotanker and KC-10 Extender, provides manual control with visual cues via optical periscopes or remote camera arrays pioneered in Boeing KC-46 Pegasus designs.

Operational Procedures

Refueling operations are planned through mission coordination among units like Air Mobility Command, wing operations centers, and flight crews from squadrons operating receivers such as the Lockheed Martin F-35 Lightning II or Sikorsky UH-60 Black Hawk in compatible roles. Standard procedures include rendezvous using navigation aids like Global Positioning System waypoints, establishment of refueling tracks, and communications on air-to-air frequencies standardized by bodies such as North Atlantic Treaty Organization. Boom operators guide the boom into the receiver’s receptacle, monitoring fuel flow and structural limits defined by OEM documentation from manufacturers including Boeing and Lockheed Martin.

Performance and Limitations

The flying boom enables high fuel transfer rates suited to large aircraft, supporting payloads and sortie rates critical to campaigns such as the Gulf War air campaign. Limitations include dependence on a dedicated boom operator, reduced flexibility compared to probe-and-drogue systems for naval aviators from carriers like those of the United States Navy, and physical mating constraints when dealing with non‑compatible receptacles on platforms from nations such as Russia or China. Environmental factors—icing, turbulence over regions like the North Atlantic Ocean, and battle damage from conflicts such as Operation Iraqi Freedom—affect operational ceilings and refueling envelopes.

Safety and Training

Safety protocols are governed by standards promulgated within organizations such as Air Mobility Command and implemented at institutions like the United States Air Force Air Education and Training Command where boom operator training occurs. Simulators and live training leverage curriculum elements from contractor programs by Boeing and avionics providers like Honeywell International to teach emergency disconnect, fuel-load management, and rendezvous procedures. Incidents have driven procedural updates involving coordination with agencies such as Federal Aviation Administration when civil airspace interfaces with tanker tracks near hubs like Ramstein Air Base and Edwards Air Force Base.

Variants and Applications

Variants include manned booms on tankers such as the Boeing KC-135 Stratotanker, McDonnell Douglas KC-10 Extender, and modernized systems on the Boeing KC-46 Pegasus, along with research concepts for autonomous or remotely piloted boom control influenced by programs at DARPA and industrial research by Northrop Grumman. Applications extend beyond strategic bomber support to aerial firefighting coordination platforms, air mobility missions for United States Air Force Special Operations Command, and cooperative refueling in multinational exercises like Red Flag and Exercise Pitch Black.
