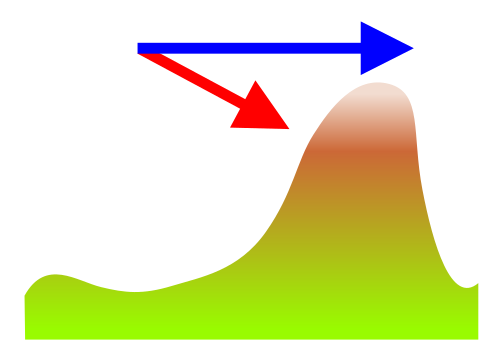

Enhanced Ground Proximity Warning System The Enhanced Ground Proximity Warning System provides automated terrain awareness and collision avoidance alerts to flight crews using digital terrain databases, barometric and radio altimeters, and navigation inputs to reduce controlled flight into terrain incidents. Developed by manufacturers including Honeywell International Inc., UTC Aerospace Systems, and BendixKing, the system interfaces with flight decks found on aircraft by Boeing, Airbus, Embraer, and Bombardier. Certification and operational adoption were influenced by directives from Federal Aviation Administration, European Union Aviation Safety Agency, and ICAO-related standards.

Overview and Purpose

The system augments legacy Ground Proximity Warning System functionality by incorporating global digital terrain elevation models, aircraft flight management system inputs, and predictive algorithms to provide forward-looking alerts. Operators such as American Airlines, British Airways, Qantas, Lufthansa, and Air France employ the system to mitigate controlled flight into terrain risk during approach, descent, and low-altitude operations. Regulators including the International Civil Aviation Organization, Federal Aviation Administration, and European Union Aviation Safety Agency mandate equipage and procedures for many commercial operations.

History and Development

Conceptual roots trace to the original Ground Proximity Warning System programs and flight-safety initiatives in the 1970s and 1980s involving companies like Honeywell International Inc. and Garrett AiResearch. Advances in digital mapping by organizations such as Navteq and TeleAtlas and GNSS developments by Global Positioning System stakeholders accelerated prototypes in the 1990s. Major safety studies by entities including the NTSB, Boeing Commercial Airplanes safety offices, and Flight Safety Foundation prompted updates that led to certification milestones with Federal Aviation Administration rulemaking and European Union Aviation Safety Agency guidance.

System Components and Operation

Core components include a terrain database loader, a GPS/Global Positioning System navigator, inertial reference or attitude and heading reference system inputs, a radio altimeter, and a dedicated processor unit supplied by firms like Honeywell International Inc. or Garmin. The processor executes algorithms derived from research at institutions such as Massachusetts Institute of Technology and Stanford University while drawing on operational criteria from International Civil Aviation Organization documents. Outputs feed warning annunciators, aural messages from the cockpit voice system architecture used by Boeing and Airbus, and visual overlays on primary flight display and head-up display equipment.

Alerting Modes and Messages

Alerting logic provides a spectrum of messages: cautionary amber advisories for terrain proximity, red warnings for imminent impact risk, and predictive pull-up commands when sink-rate and proximity thresholds are exceeded. Message vocabularies were standardized through interactions with Federal Aviation Administration advisory circulars and ICAO panels, and are similar to those used in Traffic Collision Avoidance System advisories. Manufacturers provide configurable annunciation schedules tailored to fleets operated by Delta Air Lines, United Airlines, Singapore Airlines, and Cathay Pacific to balance nuisance alerts against safety.

Integration with Avionics and Cockpit Displays

Integration occurs with flight management system databases, air data computer outputs, and cockpit display systems produced by suppliers such as Collins Aerospace and Rockwell Collins. Visual symbology can appear on multifunction displays, synthetic vision systems from vendors like Avidyne, and enhanced flight vision systems interoperating with HUDs on platforms such as Boeing 737, Airbus A320, and business jets by Gulfstream Aerospace. Data bus standards including ARINC 429 and ARINC 664 frame the message exchange.

Performance, Limitations, and Safety Impact

Evaluations by the National Transportation Safety Board and safety researchers at University of Cambridge and MIT Lincoln Laboratory show substantial reductions in CFIT incidents where equipage and crew training by organizations like FlightSafety International are maintained. Limitations stem from database latency, false alerts in steep terrain such as the Himalayas or Andes, and degraded performance when GNSS signals are jammed near facilities like Dulles International Airport or Heathrow Airport. Operational procedures promoted by ICAO and airline SOPs mitigate these limits through approach briefings and stabilized approach criteria defined by manufacturers and regulators.

Certification and Regulatory Requirements

Certification involves compliance with RTCA DO-178B/DO-178C software guidance, RTCA DO-254 hardware processes, and performance standards referenced in Federal Aviation Administration advisory circulars and European Union Aviation Safety Agency certification standards. Airlines procure equipment to meet mandates issued after accident investigations led by the NTSB and panels convened by ICAO. Continued airworthiness requires database updates from certified suppliers and maintenance practices aligned with Aircraft Maintenance Technician qualifications and organizational approvals like Part 145.
