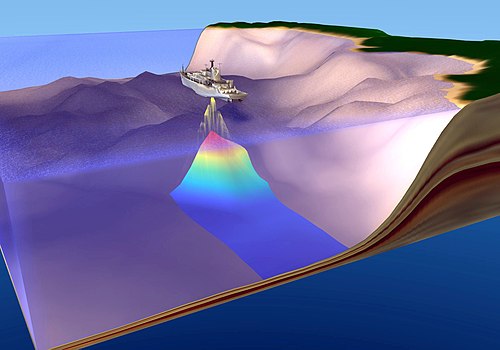

Echo sounding Echo sounding is an acoustic technique for measuring underwater distance by transmitting sound pulses and timing their echoes. It underpins bathymetric mapping, hydrographic surveying, and fisheries science by converting two-way travel time into depth using sound speed profiles. Development of echo sounding involved innovators, naval institutions, research vessels, and oceanographic campaigns that shaped modern sonar systems and maritime safety standards.

History

Early experiments that led to echo sounding involved pioneers such as Reginald Fessenden, whose work in the early 20th century intersected with developments at US Navy laboratories and commercial shipyards. Wartime demand during the First World War and Second World War accelerated deployment of echo-ranging devices alongside ASDIC and other submarine detection technologies. Postwar peacetime expansion linked echo sounding to institutions like the United States Coast and Geodetic Survey, Woods Hole Oceanographic Institution, and Scripps Institution of Oceanography for bathymetric charts and seabed mapping. International programs such as the International Hydrographic Organization initiatives and mapping efforts by national services including the British Admiralty and Geological Survey of Canada standardized methods. Major oceanographic expeditions, for example those aboard RRS Discovery and RV Calypso, used echo sounders in studies related to the Mid-Atlantic Ridge, Challenger Deep, and continental margins, informing treaties and navigation guidance produced by agencies like NOAA.

Principles and technology

Echo sounding converts the time delay of a reflected acoustic pulse into range using the local sound speed, which depends on temperature, salinity, and pressure measured by instruments such as the CTD rosette deployed from research vessels like RV Investigator. Transducer design evolved through work at establishments like Bell Labs and Naval Research Laboratory, employing piezoelectric materials including lead zirconate titanate developed with industrial partners. Signal processing concepts owe heritage to mathematicians and engineers affiliated with IEEE conferences and research groups within MIT and Caltech. Time-of-flight measurement techniques relate to methods in radar and lidar development, while beamforming and phased-array concepts were advanced in defense programs at institutions such as Raytheon and Boeing. Acoustic propagation theory draws on classic studies by Lord Rayleigh and later hydrodynamic modeling used by the Woods Hole Oceanographic Institution and Scripps Institution of Oceanography.

Types of echo sounders

Single-beam echo sounders, used by agencies including the United States Geological Survey and commercial surveyors, provide depth along a survey track. Multibeam echo sounders, developed by companies like Kongsberg and Teledyne, deliver swath bathymetry and are employed aboard research platforms such as RV Falkor and NOAAS Ronald H. Brown. Side-scan systems, associated with the United States Navy and deep-sea exploration firms, produce acoustic imagery of seabed texture used in collaborations with institutions like IFREMER and GEOMAR. Sub-bottom profilers from manufacturers used by geological surveys complement seismic reflection studies carried out by teams from Lamont–Doherty Earth Observatory and GEUS during continental-shelf investigations. Autonomous echo sounding implementations appear in AUV programs by MBARI and WHOI as well as in unmanned surface vessels developed by companies such as ASV Global.

Applications

Bathymetric charting by national hydrographic offices like the UK Hydrographic Office and Naval Hydrographic Office supports navigation, port construction, and the safety of merchant fleets operated under flags including Panama and Liberia. Fisheries science programs run by agencies such as the Food and Agriculture Organization and ICES use echo sounding for biomass estimation, informing management under regional bodies like the North Atlantic Fisheries Organization. Marine geology and geomorphology studies by research groups at Scripps Institution of Oceanography and Lamont–Doherty Earth Observatory identify features such as seamounts and submarine canyons relevant to offshore resource exploration by firms regulated under laws like the United Nations Convention on the Law of the Sea. Archaeological prospection by teams affiliated with universities including University of Southampton and Texas A&M University employ side-scan and multibeam surveys to locate wrecks and cultural heritage sites. Environmental monitoring projects coordinated with organizations like UNESCO and IUCN use echo sounding to assess habitat extent and change in areas such as the Great Barrier Reef and Baltic Sea.

Data processing and interpretation

Raw acoustic returns are processed using software frameworks developed by academic groups at University of New Hampshire and commercial packages from vendors such as QPS and Hypack. Sound velocity profiles measured with CTD and Expendable Bathythermograph casts from platforms like NOAA Ship Ronald H. Brown are incorporated to correct ray bending. Gridding and interpolation methods follow geospatial standards promulgated by organizations including OGC and mapping conventions used by the British Antarctic Survey. Backscatter analysis used in habitat classification links to methodologies published by researchers at CSIRO and NOAA and applied in projects supported by the European Marine Observation and Data Network.

Limitations and sources of error

Errors stem from uncertain sound speed in water masses influenced by currents studied by programs such as ARGO and temperature variability recorded by NOAA buoys. Platform motion and heave require inertial navigation systems and motion reference units developed by companies like Applanix and stabilization approaches used by navies including the Royal Navy. Multipath, seabed roughness, and beamwidth limitations affect returns in environments ranging from the Arctic Ocean to the Persian Gulf, complicating interpretation in hydrocarbon exploration overseen by agencies like BOEM. Biological scatterers and anthropogenic noise from shipping lanes managed by authorities such as IMO introduce additional uncertainty. Quality control standards by bodies such as the International Hydrographic Organization mitigate but cannot eliminate all error sources.
