ETCS The European Train Control System is a continental train protection and signalling initiative designed to harmonize rail transport safety and operations across national borders. It provides continuous or intermittent speed supervision, movement authority transmission, and in-cab signalling to replace diverse legacy systems like PZB, LZB, and KVB. ETCS aims to enable cross-border services for operators such as Deutsche Bahn, SNCF, Trenitalia, and ÖBB while supporting traffic flows on corridors like the Rhine-Alpine Corridor and the North Sea–Mediterranean Corridor.
Overview
ETCS integrates with European Rail Traffic Management System strategies promoted by the European Commission and coordinated by the European Union Agency for Railways. It defines trackside and onboard specifications to manage speed, braking curves, and movement authorities with interfaces to interlocking systems and traffic management platforms such as those run by Network Rail and SŽ. ETCS supports both legacy interoperability and migration paths for countries using systems like ASFA, ERTMS/ETCS-adjacent deployments, and national train protection implementations.
History and Development
Work on a harmonised system began after rail market liberalisation initiatives by the European Commission in the 1990s, with technical specifications produced by bodies including UNISIG and manufacturers such as Alstom, Siemens, and Thales Group. Early pilot projects involved corridors connecting operators like SNCB and PKP, and trials on test sites such as the Loetschberg and SRI test tracks. Political drivers included directives like the Railway Interoperability Directive and programmes managed by European Investment Bank funding for cross-border projects on routes used by Freightliner's and national passenger operators.
System Architecture and Components

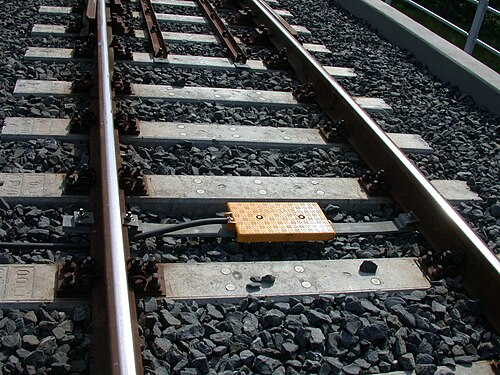

ETCS architecture comprises onboard units, trackside equipment, and radio/telecom subsystems. Onboard components include the European Vital Computer, Driver Machine Interface, odometry systems supplied by firms like Bombardier Transportation and CAF, and brake supervision modules integrated with electronic interlocking interfaces. Trackside elements include balises manufactured by suppliers such as Matisa and lineside electronic units, with radio links provided via GSM-R networks initially developed by Deutsche Telekom and network partners. The architecture interfaces with traffic management systems operated by RFI, Infrabel, and ProRail.
Levels and Operation Modes
ETCS specifies Levels 0–3 for incremental functionality. Level 1 uses spot transmission from balises to provide supervision compatible with existing signalling like PZB and KVB; Level 2 introduces continuous movement authority via radio with lineside signals retained; Level 3 proposes moving-block operation relying on train integrity and position reports, enabling capacity improvements on congested routes used by Eurostar and Thalys. Operational modes include Full Supervision, Permitted, and Staff Responsible modes used during degraded operations by infrastructure managers such as SBB and VY.
Implementation and Deployment
Deployment programs vary by country: phased rollouts on high-speed lines like LGV Nord and conventional corridors such as the Gotthard Base Tunnel route. Rolling stock retrofits have been undertaken by fleets from Renfe, SBB, DB Fernverkehr, and regional operators, often coordinated through projects funded by the European Regional Development Fund or national transport ministries. Challenges in deployment have included interoperability of onboard software stacks produced by vendors like Hitachi Rail and project management issues highlighted in assessments by European Court of Auditors.
Interoperability and Standards
Standards for ETCS are embedded in Technical Specifications for Interoperability developed under the European Union Agency for Railways and implemented by standardisation bodies including CENELEC and UNISIG consortia. Conformance testing occurs in laboratories such as ETS Test Labs and on open test lines used by Innotrack research programmes. Harmonisation efforts cover interfaces to national systems like Sistemas de Alerta y Señalización in Spain and ETCS-compatible overlays in countries with legacy systems.
Safety, Certification, and Performance
ETCS safety targets align with CENELEC standards EN 50126/50128/50129 for dependability and software assurance, with certification processes administered by national safety authorities such as ORA and SŽ-Infrastructure equivalents. Performance metrics include punctuality improvements observed on corridors managed by Trafikverket and capacity gains modeled for networks operated by ProRail and RFI. Ongoing research by institutions like University of Birmingham and Fraunhofer focuses on migration to Level 3, cybersecurity of GSM-R successors such as FRMCS, and lifecycle cost comparisons across vendors including Siemens Mobility and Alstom.
