Dy2Ti2O7

Dy2Ti2O7
Mjpgngras · CC BY-SA 4.0 · source
Name	Dysprosium titanate
Formula	Dy2Ti2O7
Molar mass	533.53 g·mol−1
Crystal system	Cubic
Space group	Fd-3m
Appearance	White to off-white powder
Density	~5.0 g·cm−3
Melting point	incongruent

Dy2Ti2O7 is a rare-earth pyrochlore oxide notable for its geometric frustration and emergent magnetic monopole excitations. First synthesized and characterized in the context of oxide chemistry and solid-state physics, the compound has been central to research in low-temperature magnetism, neutron scattering, and theoretical models of frustrated lattices. It occupies a role in materials science linking experimental platforms such as Brookhaven National Laboratory, Los Alamos National Laboratory, and Princeton University to theoretical work from groups at University of Cambridge, University of Oxford, and University of Tokyo.

Composition and Crystal Structure

Dy2Ti2O7 is a pyrochlore with the general formula A2B2O7 where A is a rare-earth cation and B is a transition-metal cation; in this case A = dysprosium and B = titanium. The structure belongs to the cubic space group Fd-3m and features interpenetrating networks of corner-sharing tetrahedra formed by A-site and B-site cations. The A-site dysprosium ions occupy the 16d Wyckoff positions and the B-site titanium ions occupy 16c positions, while oxygen atoms reside on 48f and 8b sites, producing the characteristic ordered oxygen sublattice. The structural arrangement creates a three-dimensional lattice of Dy3+ tetrahedra that underlies geometric frustration studied by groups at Columbia University, Harvard University, and Stanford University. Lattice parameters and ionic radii comparisons often reference data compilations from International Union of Crystallography and standards used at European Synchrotron Radiation Facility.

Synthesis and Preparation

Preparation of Dy2Ti2O7 typically follows solid-state reaction routes using stoichiometric mixtures of Dy2O3 and TiO2 heated at high temperatures in air or controlled atmospheres. Alternative methods include sol–gel synthesis, floating-zone crystal growth, and flux techniques employed by laboratories such as Oak Ridge National Laboratory to obtain large single crystals for scattering experiments. Careful control of starting oxide purity, calcination schedules, and cooling rates is critical to minimize antisite disorder and oxygen nonstoichiometry that can be probed by instruments at Argonne National Laboratory and DESY. Post-synthesis annealing under oxygen or inert gas is used by research teams at Max Planck Institute for Solid State Research to tune defect concentrations and lattice strain for comparative studies with related pyrochlores like those investigated at MIT and ETH Zurich.

Physical Properties

Dy2Ti2O7 exhibits insulating electrical behavior and a high dielectric constant at low temperatures, measured by groups at NIST and Bell Labs. The Dy3+ ions contribute large single-ion magnetic moments arising from strong spin–orbit coupling characteristic of heavy lanthanides cataloged by Los Alamos National Laboratory compilations. Thermal properties such as specific heat and thermal conductivity show pronounced features associated with magnetic entropy release and are routinely measured in dilution refrigerators at facilities including Riken and University of California, Berkeley. Structural probes—X-ray diffraction at Diamond Light Source and synchrotron beamlines at SOLEIL—confirm the cubic symmetry and enable comparison with pyrochlores like those studied at Tohoku University.

Magnetic Behavior and Spin Ice Phenomenon

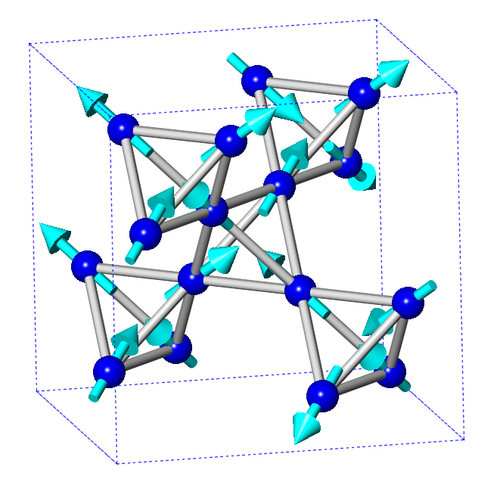

Dy2Ti2O7 is a canonical spin ice material where the Dy3+ moments obey local Ising anisotropy along the local <111> axes, producing a two-in/two-out arrangement on each tetrahedron analogous to the proton disorder in water ice first articulated by researchers inspired by work at CERN and Imperial College London. Long-range dipolar interactions and superexchange compete, creating extensive ground-state degeneracy studied by theoretical groups at Princeton University and Cornell University. Experiments using neutron scattering at Institut Laue–Langevin, muon spin rotation at Paul Scherrer Institute, and magnetization at Los Alamos National Laboratory revealed pinch-point correlations, residual entropy consistent with Pauling estimates, and emergent quasi-particle excitations described as magnetic monopoles in the literature originating from collaborations involving University of Warwick and Yale University. Field-driven transitions, low-temperature relaxation, and non-equilibrium dynamics have been mapped in phase diagrams by research teams at University of California, Santa Barbara and University of Edinburgh.

Experimental Techniques and Characterization

Characterization of Dy2Ti2O7 leverages neutron and X-ray scattering, muon spectroscopy, AC/DC magnetometry, specific heat calorimetry, and nuclear magnetic resonance performed at major facilities such as ISIS Neutron and Muon Source, Spallation Neutron Source, and European Muon Source collaborations. Single-crystal growth enables polarized neutron diffraction and inelastic neutron scattering to resolve spin correlations and excitations pursued by groups at Oak Ridge National Laboratory and Institut Laue–Langevin. Local structural disorder and oxygen vacancies are assessed using transmission electron microscopy at Harvard University and synchrotron X-ray absorption spectroscopy at SLAC National Accelerator Laboratory. Low-temperature transport and thermal measurements are performed in dilution refrigerators at Kavli Institute for Theoretical Physics-affiliated labs and national metrology institutes such as NIST.

Theoretical Models and Simulations

Theoretical descriptions of Dy2Ti2O7 combine classical dipolar spin ice models, nearest-neighbor exchange Hamiltonians, and Monte Carlo simulations developed by teams at University of Cambridge, University of California, Santa Barbara, and ENS Paris. Large-scale numerical studies using Ewald summation and loop algorithms implemented on high-performance clusters at Lawrence Berkeley National Laboratory and Argonne National Laboratory reproduce thermodynamic signatures and monopole dynamics. Extensions include quantum spin ice proposals explored by theorists at Perimeter Institute and mean-field and gauge-theory frameworks developed in collaborations involving University of Tokyo and University of Chicago. These theoretical efforts interface with experimental programs at Princeton University and Rutgers University to interpret phenomena such as monopole currents, Dirac strings, and glassy freezing.
