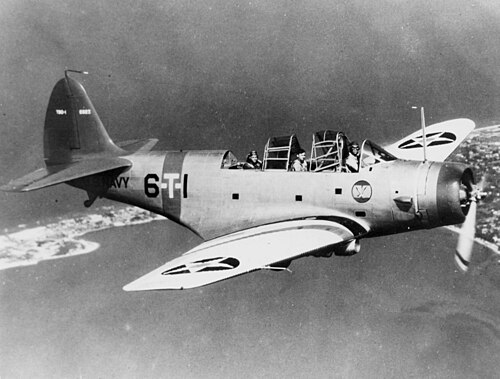

Caption	TBD-1 in flight aboard USS Lexington (CV-2)
Manufacturer	Douglas Aircraft Company
First flight	1935
Introduced	1937
Retired	1944
Primary user	United States Navy
Produced	129

Douglas TBD Devastator was a carrier-based torpedo bomber developed by the Douglas Aircraft Company in the mid-1930s for the United States Navy. Designed to replace older biplane torpedo bombers, the TBD combined an enclosed cockpit, folding wings, and an internal bomb bay to carry torpedoes and bombs for fleet operations. It saw service in the early years of World War II, most notably during the Battle of Midway and the Battle of the Coral Sea, where it suffered heavy losses against Imperial Japanese Navy fighters and anti-aircraft defenses.

Design and Development

Douglas Aircraft developed the TBD under Navy specification BuAer requirements to succeed aircraft such as the Martin T4M and the Great Lakes BG-1. The design featured an all-metal stressed-skin fuselage derived from Douglas experience with the Douglas DC-2 and DC-3 programs, semi-retractable landing gear influenced by Douglas DC-4 concepts, and a crew of three incorporating pilot, radioman, and turret gunner roles similar to configurations used on the Grumman F4F Wildcat and SBD Dauntless. Power was provided by the Pratt & Whitney XR-1830 radial engine series used across United States Army Air Corps and Royal Air Force types, while folding wing mechanisms took cues from carrier aircraft such as the Fairey Swordfish and Brewster F2A Buffalo. Development trials at Naval Air Station Anacostia and NAS North Island focused on low-speed handling, torpedo carriage under Mark 13 Torpedo constraints, and compatibility with USS Saratoga (CV-3) and USS Enterprise (CV-6) flight decks.

Operational History

The TBD entered service with squadrons assigned to carriers including USS Hornet (CV-8), USS Lexington (CV-2), and USS Yorktown (CV-5), participating in early Pacific engagements such as the Wake Island raid, the Battle of the Coral Sea, and the pivotal Battle of Midway. TBD squadrons operated alongside dive bombers and fighters from units like Scouting Squadron VS-6 and Bombing Squadron VB-6, executing coordinated strikes against Japanese aircraft carrier formations at places like Tulagi and Midway Atoll. During the Battle of Midway, Devastator crews attacked despite limited fighter escort from Grumman F4F Wildcat and inadequate coordination with Douglas SBD Dauntless dive-bombing runs; heavy attrition resulted from engagements with Mitsubishi A6M Zero fighters and concentrated anti-aircraft fire from warships including Akagi and Kaga. Operational critiques after these battles led the Bureau of Aeronautics and carrier air wing commanders to accelerate replacement programs, shifting torpedo-bomber roles to newer designs like the Grumman TBF Avenger.

Variants and Modifications

Production and service life saw a handful of variants and field modifications. The initial TBD-1 production series incorporated the Mark 13 Torpedo bay and a fixed forward-firing armament pattern; subsequent retrofits included changes to armor and self-sealing fuel tanks influenced by damage assessments from Pearl Harbor and early Pacific actions. Experimental conversions tested radio and navigation equipment akin to systems used by Douglas R4D transports and instrumentation developed by National Advisory Committee for Aeronautics personnel. Proposed TBD conversions to carry auxiliary fuel tanks paralleled range-extension efforts seen on Consolidated PBY Catalina and Lockheed Hudson aircraft, but most TBDs were phased out in favor of the TBF/TBM Avenger series produced by Grumman and General Motors.

Technical Specifications

Typical TBD-1 specifications included a crew of three, wingspan and folding-wing geometry compatible with carrier hangars such as those on USS Lexington (CV-2), and a maximum speed and climb performance characteristic of mid-1930s monoplane torpedo bombers. Powerplant details mirrored the Pratt & Whitney R-1830 Twin Wasp family, while armament normally comprised a single Mark 13 Torpedo or up to 1,200 pounds of bombs in the internal bay, defensive machine guns in dorsal and ventral mountings similar to arrangements on Heinkel He 111 and Fairey Swordfish. Avionics and radio sets were contemporaneous with equipment installed on US Navy patrol and scout aircraft, and structural features such as fixed tailhook and arresting gear interfaces met Fleet aircraft carrier standards of the 1930s and early 1940s.

Survivors and Preservation

No intact airworthy TBD Devastators survive; however, wreckage and component artifacts have been recovered from Midway Atoll lagoon wreck sites and preserved in collections at institutions like the National Museum of the United States Navy and the Smithsonian Institution National Air and Space Museum. Recovered elements have informed museum restorations, static reproductions, and scale models displayed alongside other carrier aircraft such as the Douglas SBD Dauntless and Grumman F4F Wildcat in exhibits at USS Midway Museum and Intrepid Sea, Air & Space Museum. Archaeological dives and conservation efforts involve collaboration among Naval History and Heritage Command, National Park Service, and private preservation groups documenting artifacts from Battle of Midway crash sites.
