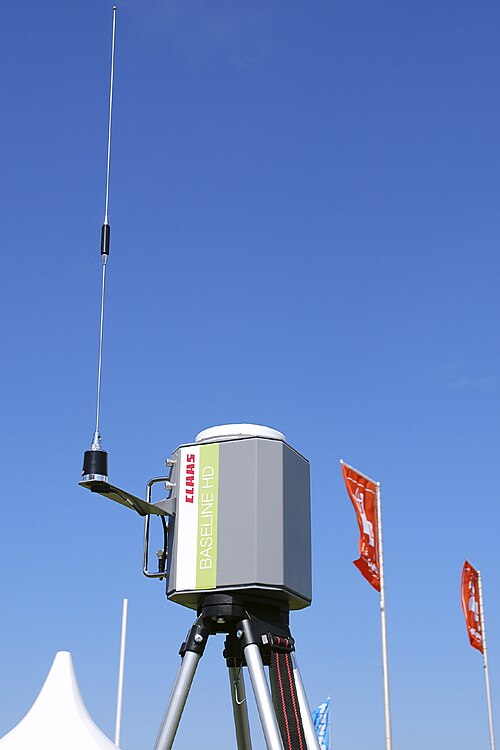

Differential GPS

Differential GPS
bdk · CC BY-SA 3.0 · source
Name	Differential GPS
Abbreviation	DGPS
Developed	1980s
Inventor	USCG, United States Coast Guard; Naval Research Laboratory
Initial use	maritime navigation
Related	Global Positioning System, GLONASS, Galileo, BeiDou

Differential GPS Differential GPS is a satellite-based augmentation technique that improves the positional accuracy of the Global Positioning System and comparable constellations such as GLONASS, Galileo, and BeiDou. By using networked reference receivers at surveyed locations—often operated by agencies like the United States Coast Guard or research organizations such as the Naval Research Laboratory—DGPS computes and broadcasts correction data to nearby user receivers, reducing errors from satellite ephemeris, clock biases, and atmospheric effects.

Overview

DGPS augments primary constellations—Global Positioning System, GLONASS, Galileo, BeiDou—with ground-based correction data delivered via radio beacons, cellular networks, or satellite links like WAAS. Reference stations at known geodetic points operated by bodies such as the United States Coast Guard, National Oceanic and Atmospheric Administration, and national mapping agencies generate correction messages that user equipment applies to raw pseudorange and carrier-phase measurements. Systems range from simple single-station beacon services to regional networks tied to datum realizations like the North American Datum.

History and Development

Early differential concepts emerged in geodesy and radio navigation projects associated with institutions such as the Naval Research Laboratory and the United States Coast Guard during the 1970s and 1980s. The maritime beacon DGPS services were standardized and proliferated following policies set by the International Maritime Organization and operationalized by national authorities including the United States Coast Guard and the Canadian Coast Guard. Parallel development occurred in aviation augmentation programs exemplified by WAAS and EGNOS, and by research collaborations involving universities such as MIT and Stanford University.

Technical Principles

DGPS operates by comparing measured satellite signals at a reference receiver with expected values computed from its surveyed coordinates and latest orbital data such as Broadcast Ephemeris and precise ephemerides provided by analysis centers like the International GNSS Service. The reference receiver computes pseudorange corrections and typically carrier-phase corrections; these corrections account for satellite clock errors, ephemeris errors, ionospheric and tropospheric delays, and multipath biases. Corrections are communicated using protocols developed by standards bodies including the Radio Technical Commission for Maritime Services and the International Civil Aviation Organization.

System Architectures and Types

Architectures include single-base-station DGPS services, regional networked real-time kinematic (RTK) providers, and wide-area augmentation systems (WAAS/EGNOS) that use master control centers and uplink stations. Single-station systems operate with beacons such as those historically run by the United States Coast Guard; network RTK solutions are implemented by commercial consortia and academic partnerships and often integrate with data formats like RTCM developed by the Radio Technical Commission for Maritime Services. Precise Point Positioning with corrections from services provided by agencies like the National Geodetic Survey represents another architectural approach.

Accuracy, Error Sources, and Limitations

Under ideal conditions, DGPS improves horizontal accuracy from tens of meters to sub-meter or decimeter levels; RTK can achieve centimeter-level precision used in surveying by entities like Federal Aviation Administration-certified operators. Residual errors arise from spatial decorrelation of ionospheric and tropospheric delays between reference and rover, multipath at the antenna, receiver noise, and latency in correction dissemination. Limitations include dependence on a visible satellite geometry often described by dilution-of-precision metrics used by analysis centers, vulnerability to radio interference, and susceptibility to spoofing and jamming addressed by security programs at agencies such as the Department of Homeland Security.

Applications

DGPS and RTK underpin maritime navigation for ports and pilotage administered by organizations like the International Maritime Organization, precision agriculture deployments by companies such as John Deere, construction and machine control projects managed by firms including Caterpillar, geodetic surveying conducted by national mapping agencies like the Ordnance Survey (Great Britain), and autonomous vehicle navigation experimented on by research labs at Carnegie Mellon University and MIT. Aviation approaches augmented by WAAS/EGNOS leverage similar differential concepts, influencing procedures coordinated by the Federal Aviation Administration and the European Aviation Safety Agency.

Implementation and Operation

Operational DGPS infrastructure typically involves surveyed reference monuments tied to national geodetic networks such as the National Spatial Reference System, dual-frequency GNSS receivers, correction generation servers, and broadcast transmitters over maritime MF/HF beacons, VHF data links, cellular networks, or satellite broadcast systems. Commercial providers and national agencies maintain monitoring networks and continuity oversight; routine tasks include antenna calibration, receiver firmware updates supplied by manufacturers like Trimble and Topcon, and quality control performed using software from vendors and research groups such as Leica Geosystems and university labs.

Regulatory and Standardization Framework

Standards and protocols are promulgated by bodies including the Radio Technical Commission for Maritime Services, the International Civil Aviation Organization, the European Union Aviation Safety Agency, and national authorities like the Federal Communications Commission and the National Institute of Standards and Technology. International services such as WAAS and EGNOS are implemented in coordination with the International Civil Aviation Organization navigation performance-based standards and interoperability guidelines developed by the International Telecommunication Union and the International GNSS Service.

Category:Satellite navigation
