Department of Defense Architecture Framework

The Department of Defense Architecture Framework provides an approach for describing, analyzing, and communicating complex systems engineering and information technology architectures across large organizations such as the United States Department of Defense, the National Aeronautics and Space Administration, and allied ministries like the Ministry of Defence (United Kingdom). It establishes viewpoints, models, and products intended to support acquisition programs, capability planning, and interoperability with partners including the North Atlantic Treaty Organization, the United States Air Force, and the United States Navy. The framework has influenced standards adopted by bodies such as the International Organization for Standardization and the Object Management Group.

Overview

DoDAF defines a set of viewpoints and models to represent architecture information so stakeholders — including program managers, systems engineers, and capability developers working with organizations like the Defense Advanced Research Projects Agency, United States Cyber Command, and the National Security Agency — can make decisions about design, procurement, and integration. The framework distinguishes operational, systems, services, data, and project perspectives to enable analysis for programs such as F-35 Lightning II, Ballistic Missile Defense System, and Joint Tactical Radio System. DoDAF aligns with model-driven approaches from the ISO/IEC 42010 standard and techniques used by practitioners in organizations like Lockheed Martin, Northrop Grumman, and Raytheon Technologies.

History and Development

DoDAF originated from earlier architecture efforts including the C4ISR Architecture Framework initiative led by offices within the United States Department of Defense and contributors from programs such as Joint Vision 2010 and Transformational Communications. Early releases in the late 1990s and 2003 codified artifacts used by acquisition programs like the Aegis Combat System and multinational exercises run with the North Atlantic Treaty Organization. Subsequent revisions, including DoDAF 2.0 and 2.02, incorporated concepts from Service-oriented architecture practice and standards from the Object Management Group such as Unified Modeling Language and Systems Modeling Language to better support projects like Global Information Grid modernization and collaborations with agencies such as the Defense Intelligence Agency.

Structure and Views

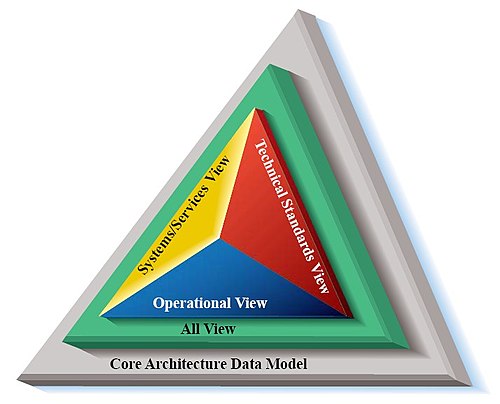

The framework organizes architecture content into viewpoint categories similar to those used by the Federal Enterprise Architecture and the Zachman Framework: operational, systems, services, technical, and capability viewpoints. Products describe operational nodes involved in scenarios like Operation Enduring Freedom, systems and services that support missions undertaken by entities such as the United States Marine Corps and United States Army, and data exchanges relevant to programs like the Distributed Common Ground System. Artifacts in DoDAF map to modeling constructs used in Unified Modeling Language diagrams and to information exchange specifications recognized by the National Institute of Standards and Technology and acquisition authorities in the Office of the Secretary of Defense.

Methodology and Governance

Governance of DoDAF is maintained by offices within the Office of the Secretary of Defense and coordinated with standards organizations such as the National Institute of Standards and Technology, the International Organization for Standardization, and the Object Management Group. Methodological guidance draws on systems engineering processes codified in standards like IEEE 12207 and ISO/IEC/IEEE 15288 and aligns with acquisition policies administered by entities such as the Defense Acquisition University and the Under Secretary of Defense for Acquisition and Sustainment. Review boards and interoperability test events frequently involve participants from industry primes such as Boeing and consortia organized around programs like Federated Mission Networking.

Applications and Implementation

Practitioners apply DoDAF to support capability-based planning for efforts such as AirSea Battle concepts, interoperability assurance for coalitions including NATO Response Force, and system-of-systems engineering for programs like the Global Command and Control System. Implementation occurs within program offices in the United States Space Force, United States Special Operations Command, and defense logistic organizations, and supports acquisition milestones overseen by the Defense Contract Management Agency and the Government Accountability Office in audit and oversight roles. DoDAF products are used to drive requirements, verify interfaces, and produce acquisition artifacts submitted to bodies like the Defense Information Systems Agency.

Tools and Notation

A wide ecosystem of modeling tools supports DoDAF products, including commercial offerings from Sparx Systems, IBM Rational, and No Magic, Inc. (now part of Dassault Systèmes), as well as open-source projects and toolchains integrating SysML and UML notations. Tool support facilitates generation of views required for programs such as Joint All-Domain Command and Control and enables exchange using formats interoperable with repositories maintained by organizations like the Defense Information Systems Agency and the National Geospatial-Intelligence Agency. Guidance also references ontology and metadata practices aligned with initiatives from the World Wide Web Consortium and the Library of Congress for cataloging architecture assets.

Critiques and Evolution

Critics have pointed to DoDAF's initial emphasis on many static products and the learning curve associated with producing exhaustive artifact sets for procurements managed by entities like the Government Accountability Office and the Congressional Budget Office. Revisions to the framework addressed these concerns by promoting capability-focused, model-driven approaches similar to those advocated by the Object Management Group and aligning with international practices seen in TOGAF and the European Defence Agency guidance. Ongoing evolution continues as architects supporting programs such as Project Maven and multinational interoperability efforts adapt DoDAF concepts to agile acquisition models used by organizations like the Defense Innovation Unit and industry partners including Palantir Technologies.

Category:United States Department of Defense standards
