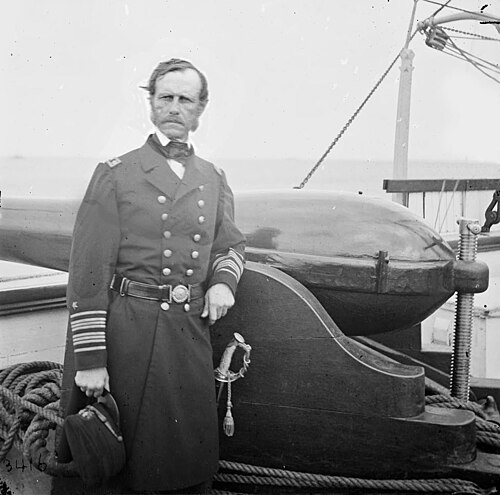

Dahlgren gun
Unidentified photographer · Public domain · source
Name	Dahlgren gun
Origin	United States
Service	1840s–1870s
Designer	John A. Dahlgren
Designer label	Designer
Type	Naval artillery
Weight	variable
Caliber	variable
Cartridge	solid shot, shell
Action	muzzle-loading, rifled conversions
Range	variable

Dahlgren gun The Dahlgren gun was a family of naval artillery pieces developed in the mid-19th century by John A. Dahlgren for the United States Navy, notable for their distinctive bottle-shaped profile and use aboard sloop-of-war, frigate, steamer, and ironclad warship types. Widely adopted in the Mexican–American War aftermath and during the American Civil War, the guns influenced ordnance design in the Royal Navy, French Navy, and other maritime services, while provoking debate among contemporaries such as Robert E. Lee proponents and ordnance boards in Washington, D.C..

History and development

Dahlgren, a graduate of the United States Naval Academy and a veteran of the War of 1812 era, began systematic ordnance experiments at the Washington Navy Yard under the patronage of Commodore Matthew C. Perry and officials in the United States Department of the Navy. After investigations into catastrophic failures of existing cast-iron guns used in skirmishes near Monterrey, Mexico and on stations like Charleston, South Carolina, Dahlgren proposed a reinforced breech and thicker barrel design, formalized in reports to the United States Congress and adopted by naval boards chaired by figures from the United States Senate and the House of Representatives. His work intersected with contemporaneous innovations by Sir William Armstrong and organizations including the Ordnance Department and private firms such as Tredegar Iron Works and Midvale Steel and Ordnance Company.

Design and technical characteristics

Dahlgren guns featured a characteristic bottle-shaped external form intended to concentrate mass around the breech to resist bursting, a solution derived from stress analysis and empirical trials conducted at the Washington Navy Yard and proving grounds like Boston Navy Yard. The guns were primarily cast in bronze and cast iron with some wrought-iron reinforcements, using charges of black powder and firing solid shot, shell, and later explosive projectiles developed by artisans at facilities such as Watervliet Arsenal and the Frankford Arsenal. Dahlgren’s design prioritized safety by ensuring the weakest section would fail away from crews, a principle discussed in correspondence with engineers at Brown University and observers from the Royal Arsenal. Rifling experiments and later conversion programs paralleled developments by innovators like Charles William Jones and engineers at the Harvey Works.

Variants and calibers

The Dahlgren family encompassed a range from small boat guns to heavy shell guns and pivot mounts: common sizes included the 9-pounder, 12-pounder, 24-pounder, 32-pounder, 8-inch shell gun, 9-inch shell gun, and 11-inch and 15-inch smoothbores, along with converted rifled types. Specific models bore names in correspondence and ordnance tables at the Naval History and Heritage Command and in manuals issued by the United States Naval Institute; notable calibers were employed on vessels like USS Cumberland (1842), USS Kearsarge (1861), USS Monitor, and CSS Virginia. Internationally, adaptations influenced designs at the Chatham Dockyard and in shipyards at Brest, France and Kronstadt.

Deployment and operational use

Dahlgren guns were installed on a broad spectrum of ships during the American Civil War, including blockade runner interceptors, gunboats used in the Union blockade, coastal monitors engaging in the Battle of Hampton Roads, and Confederate conversions by facilities like Mound City, Illinois foundries and private yards in Richmond, Virginia. Crews trained under regulations from the United States Naval Academy and ordnance manuals had to adapt to changes in ammunition like percussion primers and improved fuzes from patents filed in the Patent Office. The weapons saw action in engagements such as the Battle of Mobile Bay, Siege of Fort Fisher, and riverine operations on the Mississippi River and James River, influencing tactics used by commanders including David Farragut, Fitz John Porter, Andrew Hull Foote, and Confederate captains like Josiah Tattnall III.

Surviving examples and preservation

Extant Dahlgren guns are preserved at museums and historic sites, including the Smithsonian Institution, the National Museum of the United States Navy, battlefield parks such as Fort Sumter National Monument, naval yards like Naval Station Norfolk, and maritime collections at the Peabody Essex Museum and the Mariner's Museum. Restoration and conservation efforts have involved metallurgists from institutions such as Smithsonian Institution Conservation Laboratory and academics at Yale University and University of Pennsylvania. Exhibits interpret links to broader naval history and artifacts from associated ships like USS Hartford and USS Colorado (1856), while archaeological recoveries from wrecks near Hatteras and the Chesapeake Bay contributed to scholarship published in journals associated with the Naval Historical Center and universities including Johns Hopkins University.
