DPLL algorithm

DPLL algorithm
Tamkin04iut · CC BY-SA 3.0 · source
Name	DPLL algorithm

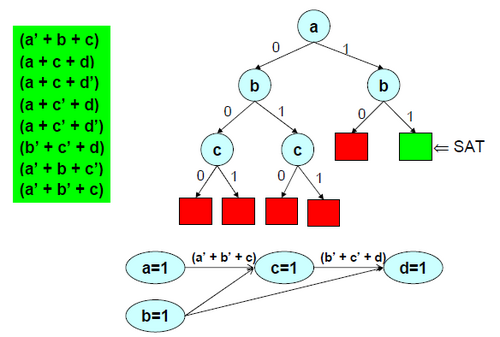

Caption	Satisfiability search tree
Inventor	Davis, Putnam, Logemann, Loveland
Introduced	1960s
Field	Automated theorem proving

DPLL algorithm The DPLL algorithm is a backtracking search procedure for deciding propositional logic satisfiability and for use in automated theorem proving systems. It extends the earlier Davis–Putnam procedure with unit propagation and pure literal elimination and underlies modern SAT solver technology used across computer science, electrical engineering, artificial intelligence, and operations research. The method influenced developments in complexity theory, formal verification, and combinatorial optimization.

Introduction

DPLL was developed by Martin Davis, Hilary Putnam, George Logemann, and Donald Loveland and built on ideas from the Davis–Putnam procedure and the resolution method. It addresses the satisfiability problem for propositional formulas in conjunctive normal form, a central task in the study of NP-completeness, Cook–Levin theorem, and the P versus NP problem. The algorithm introduced practical techniques such as unit propagation and branching heuristics that formed the core of later industrial solvers used in model checking, hardware verification, and software testing.

Algorithm Description

DPLL operates on formulas expressed in conjunctive normal form and combines deterministic simplification with nondeterministic branching: apply unit propagation and pure literal elimination, then select a variable and recurse on the two assignments. Core components are unit clause detection and propagation, pure literal elimination, recursive search with backtracking, and clause learning in modern extensions. The procedure was formalized in the context of early theorem provers and influenced later work in automated reasoning and logic programming.

Heuristics and Optimizations

DPLL’s performance depends on heuristics for variable selection and clause management. Historical and contemporary heuristics include static ordering, dynamic choices like VSIDS, activity-based scores introduced in conflict-driven techniques, and clause deletion policies. Optimizations from the solver community integrate watched literals, efficient data structures, and decision heuristics adapted in tools for formal methods and electronic design automation. These enhancements trace influence from early computational research institutions and projects associated with practitioners and labs in Princeton University, MIT, Stanford University, Carnegie Mellon University, and industrial teams at corporations such as IBM, Intel, Microsoft Research, and Google.

Correctness and Complexity

Soundness and completeness of DPLL follow from the semantics of propositional logic and the finite branching of recursive search; the algorithm will find a satisfying assignment if one exists or prove unsatisfiability by exhaustive exploration with pruning. Complexity is worst-case exponential, tying DPLL performance to central results in computational complexity theory and the study of NP-complete problems, with important connections to the Exponential Time Hypothesis and lower-bound research influenced by results from researchers at institutions like ETH Zurich, University of Cambridge, University of Oxford, and California Institute of Technology.

Variants and Extensions

Numerous variants extend DPLL: conflict-driven clause learning (CDCL) adds backjumping and learned clauses, randomized restarts integrate strategies from stochastic local search, and hybrid methods combine DPLL with lookahead or local search. Extensions enabled satisfiability modulo theories (SMT) solvers bridging to theorem proving for theories such as integer arithmetic and bit-vectors, and contributed to solvers used in model checking frameworks developed at organizations like NASA, Bell Labs, Siemens, and SiFive.

Applications and Implementations

DPLL-based and CDCL-based solvers appear in verification toolchains, synthesis systems, and planning frameworks across academic and industrial projects. They are embedded in model checkers for temporal logic verification, hardware synthesis flows used by companies like Cadence and Synopsys, and in AI planners influenced by work at SRI International and Los Alamos National Laboratory. Open-source implementations and research solvers from groups at University of Massachusetts Amherst, University of California, Berkeley, University of Toronto, and University of Illinois Urbana–Champaign have propelled adoption in domains including cryptography, bioinformatics, and combinatorial design. Key milestones in solver development were showcased at conferences such as SAT Competition, CADE, CAV, and IJCAI, and contributed to benchmarks maintained by collaborations involving CNRS, INRIA, and national laboratories.
