DMX512-A

DMX512-A

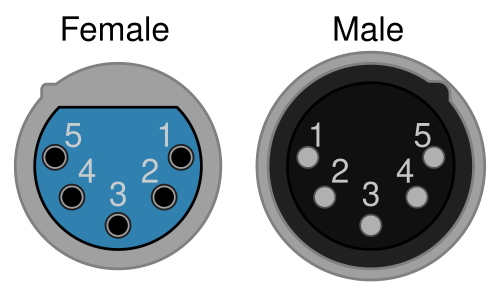

XLR_pinouts.svg: Omegatron derivative work: DrBob (talk) · CC BY-SA 3.0 · source
Name	DMX512-A
Developer	United States Institute for Theatre Technology
Type	Digital communication protocol
First release	1986
Latest release	2009

DMX512-A is a standardized digital communication protocol widely used for controlling stage lighting, effects, and related devices in live entertainment, broadcast, theme parks, and architectural installations. Originating from work by United States Institute for Theatre Technology and later revised by Entertainment Services and Technology Association and ANSI, it extended earlier serial control schemes to provide a robust, electrically specified link between controllers and fixtures. The protocol became foundational for interoperability among manufacturers such as ETC (lighting company), Philips Entertainment (Signify), Robe (company), and Martin Professional.

Overview

DMX512-A operates as a unidirectional, multipoint serial link intended to carry control values from a controller—commonly a lighting console produced by companies like MA Lighting or Strand Lighting—to responder devices such as dimmers, moving lights, fog machines, and LED drivers from Chauvet Professional and ADJ. It standardized on 512 channels per universe, enabling interoperability across products from Siemens-era theatrical lighting manufacturers and newer entrants like Harman International. The standard addresses electrical characteristics defined by bodies including ANSI and IEC, and is referenced in production workflows used by organizations such as Broadway (theatre) houses, touring companies operated by Cirque du Soleil, and major venues like Madison Square Garden.

Technical specifications

DMX512-A describes data rates, timing, addressing, and signal levels compatible with industry hardware. The physical layer adapts differential signaling comparable to EIA-485 (formerly RS-485), with a nominal baud rate of 250 kbit/s and packet framing that includes a break and start code. The addressing scheme supports up to 512 8-bit slots per universe, mapping directly to fixture parameter channels used by manufacturers including Avolites, ChamSys, and Zero 88. Electrical termination, grounding, and line impedance requirements are specified to interoperate with cabling vendors such as Belden and connector suppliers like Amphenol.

Protocol and packet structure

A DMX512-A packet begins with a break, a mark after break, followed by a start code and up to 512 data slots representing intensity or parameter values. The start code convention allows extensions—most commonly a zero start code for standard channel data and nonzero codes for protocols like RDM (Remote Device Management), which adds bidirectional features developed by the PLASA consortium and ESTA. The unidirectional nature requires external mechanisms for addressing and monitoring, historically prompting manufacturers such as LumenRadio and ETC to adopt auxiliary networks like Ethernet-based protocols including Art-Net and sACN (Streaming ACN) for higher channel counts and networked control.

Hardware and connectors

Standard DMX512-A wiring uses 5-pin XLR connectors specified in the standard, though 3-pin XLR connectors from Neutrik are commonly used in practice despite not conforming to the specification. Cabling follows shielded twisted-pair topologies provided by vendors like Canare and Draka, with recommended termination resistors and line biasing for reliable differential signaling. Repeaters, opto-isolators, and splitters are produced by companies such as OSRAM's lighting controls divisions, Zero88, and Hog (lighting control), while multi-universe distribution racks are integrated into systems by manufacturers like GrandMA and ChamSys.

Implementations and devices

DMX512-A is implemented in a wide array of devices: stage dimmers from ETC (lighting company) and Lutron, moving head fixtures from Martin Professional and Robe (company), LED processors from Philips Entertainment (Signify) and Coemar, and effects units like hazers and strobe lights from Airstar and Clay Paky. Lighting consoles from MA Lighting, Chamsys, ETC (lighting company), and High End Systems provide channel mapping, cueing, and show control, often interfacing with timecode sources such as MIDI Time Code and SMPTE (Society of Motion Picture and Television Engineers) timecode for synchronized playback. Accessories include DMX merger boxes, optically isolated interfaces by Hosa Technology, and USB-to-DMX adapters created by companies like Enttec.

Applications and usage

DMX512-A remains the de facto link for theatrical productions on Broadway (theatre) and in regional theatres, concert tours by acts associated with companies like Live Nation, and broadcast studios operated by networks such as BBC and NBCUniversal. Beyond entertainment, DMX512-A is used for architectural façade control in projects by firms like Gensler and Foster and Partners, themed attractions at Walt Disney Parks and Resorts and Universal Parks & Resorts, and museum installations curated by institutions like the Museum of Modern Art. Integration with building management or media servers from Disguise (company) or Watchout (Dataton) often involves protocol bridging to Ethernet-based control systems.

Standards and revisions

The standard evolved from original documents by USITT to formal ANSI standards, with major revisions culminating in DMX512-A endorsed by ESTA and referenced in IEC guidance for entertainment lighting. Extensions and companion specifications include RDM for bidirectional device management and networked variants like Art-Net by Artistic Licence Engineering Ltd and sACN standardized by ANSI E1.31. The continuing ecosystem is shaped by trade associations such as PLASA, USITT, and manufacturers collaborating through consortia including the ESTA Technical Standards Program.

Category:Lighting control protocols
