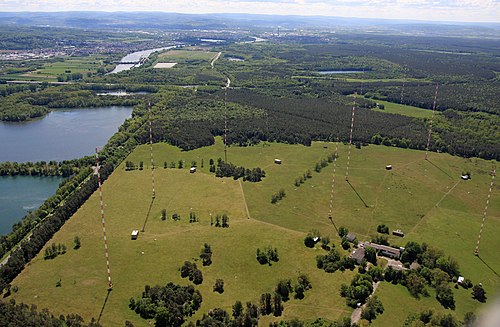

Martin Kania · CC BY-SA 4.0 · source
Name	DCF77
City	Mainflingen
Country	Federal Republic of Germany
Coordinates	50°03′18″N 08°52′14″E
Frequency	77.5 kHz
Format	Time signal, frequency standard
Owner	Physikalisch-Technische Bundesanstalt
Operator	Media Broadcast
Airdate	1 January 1959
Power	50 kW

DCF77

DCF77 is a longwave time signal and standard-frequency radio station broadcasting from Mainflingen, near Frankfurt am Main, in the Federal Republic of Germany. It provides legal time, coordinated timing, and a reference frequency used by national metrology institutes, telecommunications, navigation, and public timekeeping across much of Europe. The service is operated by Media Broadcast on behalf of the Physikalisch-Technische Bundesanstalt and is widely incorporated into radio-controlled clocks, industrial systems, and research networks.

Overview

The transmitter emits a continuous 77.5 kHz carrier with amplitude-modulated time code and phase-stable frequency reference, serving as a primary time source comparable in role to services like NIST radio station WWVB, MSF, and the All-Russian Scientific Research Institute of Physical-Technical and Radiotechnical Measurements (VNIIFTRI) time signals. Receivers range from consumer clocks and wristwatches to laboratory frequency counters used by institutions such as the International Bureau of Weights and Measures and national metrology laboratories. The site’s strategic proximity to Frankfurt am Main and integration with national infrastructures makes it a backbone for civil timing applications in countries including Germany, Austria, Switzerland, Netherlands, and parts of Poland.

History

Initial experiments in longwave time broadcasting in the Federal Republic of Germany date to the post-Second World War era, with formal operation commencing in 1959 to replace earlier local standards. Development involved collaboration among standards bodies and research institutes such as the Physikalisch-Technische Bundesanstalt and academic partners at institutions like the Technische Universität Darmstadt. Over decades the service adapted encoding protocols, power levels, and antenna systems influenced by advances at organizations including Deutsche Bundespost, Deutsche Telekom AG, and broadcasters associated with ARD and ZDF. Key milestones include adoption of minute-synchronized binary-coded decimal formats, leap-second annunciation aligned with International Telecommunication Union recommendations, and the transition of operational control to Media Broadcast.

Transmission System and Signal Encoding

The transmitter uses a high-stability oscillator disciplined to national time via atomic standards maintained by the Physikalisch-Technische Bundesanstalt, producing a carrier at 77.5 kHz with 50 kW radiated power. Time information is encoded by amplitude modulation pulses and phase modulation for the reference frequency, employing binary-coded decimal fields for minute, hour, day, date, day-of-week, month, and year. The protocol includes flags for daylight saving transitions consistent with the European Union directive on summertime arrangements and leap second markers coordinated through the International Earth Rotation and Reference Systems Service. Auxiliary bits convey announcement messages and weather or auxiliary observatory data when used experimentally by partners such as German Aerospace Center.

Technical Specifications and Coverage

The ground-wave propagation characteristics of the 77.5 kHz carrier provide extensive daytime and nighttime coverage across much of Europe, with typical reception from the British Isles to parts of Russia depending on geomagnetic conditions. The transmitter’s effective radiated power and antenna mast configuration optimize longwave propagation over continental terrain and coastal waters. Performance metrics include carrier frequency stability at the level of parts in 10^12, amplitude modulation timing precision within milliseconds, and phase modulation accuracy suitable for frequency standard dissemination comparable to national longwave services like WWVB and MSF.

Timekeeping and Applications

DCF77 supports civil and scientific timekeeping tasks such as synchronizing public clocks, powering telecom network time servers, timestamping financial transactions in markets like Frankfurt Stock Exchange, and coordinating industrial control systems used by companies such as Siemens AG and Bosch. Laboratories use the signal for calibrating oscillators and as a traceable link to atomic time scales maintained by institutes like the Physikalisch-Technische Bundesanstalt and collaborative networks tied to the Bureau International des Poids et Mesures. The station also aids emergency services and transportation systems coordinated by agencies in Germany and neighboring states.

Reception and Equipment

A wide ecosystem of receivers exists, from integrated circuits in consumer radio-controlled clocks to high-gain loop antennas and phase-locked receivers used in metrology labs. Manufacturers and vendors in Germany and across Europe supply turnkey radio clocks compliant with the station’s encoding, while hobbyist communities and organizations such as local amateur radio groups experiment with signal processing and software-defined radio implementations. Installation practices emphasize loop antenna orientation, noise mitigation in urban settings near Frankfurt am Main, and selective filtering to maximize signal-to-noise ratio.

Interference, Accuracy, and Maintenance

Interference sources include industrial electromagnetic noise, atmospheric disturbances correlated with solar activity tracked by observatories like the European Space Agency, and man-made emissions from power electronics and broadcasting infrastructure. The operator conducts regular maintenance, transmitter monitoring, and upgrades in coordination with the Physikalisch-Technische Bundesanstalt to preserve timing accuracy and service continuity. Accuracy is constrained primarily by propagation effects and local reception conditions, while the transmitted carrier remains a highly stable frequency reference maintained to international metrological standards.
