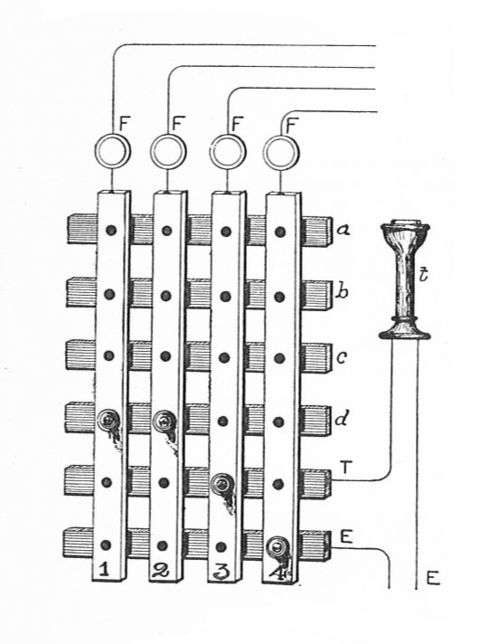

Crossbar switch

Crossbar switch
Andy Dingley (scanner) · Public domain · source
Name	Crossbar switch
Type	Switching fabric
Invented	20th century
Fields	Telecommunications; Computer architecture; Electronics

Crossbar switch A crossbar switch is a switching fabric that connects multiple inputs to multiple outputs using a grid of intersecting switching elements. It enables nonblocking or controlled-connectivity topologies in telecommunication exchanges, packet routers, and multiprocessing interconnects. Implementations span electromechanical relays, electromechanical crosspoints, semiconductor memories, and microelectronic matrices used in high-performance computing and telephony.

Introduction

Crossbar switches provide point-to-point connection capability across a two-dimensional matrix, allowing any input line to be connected to any output line through an intersection element. Early public-telephone systems and automated exchanges adopted crossbar matrices to replace manual operator switchboards and earlier step-by-step mechanisms. Modern designs influence network-on-chip fabrics in processor arrays, interconnects in data centers, and switching subsystems in routers and digital telephony.

Design and Operation

A crossbar array comprises orthogonal input and output rails with switching nodes at each crossing that can be set to connect or isolate a path; typical switching nodes are latches, relays, semiconductor pass transistors, or optical gates. Control logic uses signaling and arbitration algorithms to establish nonconflicting connections, employing scheduling strategies derived from queueing theory and graph matching problems. The device-level behavior depends on electrical characteristics such as on-resistance, capacitance, and switching latency, which affect timing closure in synchronous systems and packet latency in store-and-forward or cut-through architectures.

Variants and Architectures

Variants include full crossbar (complete bipartite connectivity), partial crossbar (sparse intersections for cost reduction), multistage networks (Clos and Benes fabrics) and buffered crossbars that integrate input or output buffering to mitigate head-of-line blocking. Architectures differentiate by blocking behavior: nonblocking, rearrangeably nonblocking, and strictly nonblocking, variously analyzed using theories from graph theory and combinatorial optimization. Multicast-capable crossbars and space-division versus time-division multiplexed fabrics extend functionality for broadcast and time-shared systems.

Applications

Crossbar technology underpins systems in several domains: public switched telephone networks and private branch exchanges in telephony, Ethernet and datacenter packet-switching in networking, memory crossbars in multiprocessor coherence protocols, switch matrices in radio-frequency and microwave test equipment, and optical wavelength-routing fabrics in photonic networks. In high-performance computing, crossbar interconnects support coherent shared-memory multiprocessors and cache-coherent non-uniform memory access designs. Telephony history, computer architecture, and network engineering literature document numerous deployments and migration paths to packetized and photonic fabrics.

Performance and Scalability

Performance metrics include throughput, latency, contention probability, and blocking probability, which are influenced by matrix size, crosspoint switching speed, and buffering. Scalability challenges arise from O(n^2) crosspoint growth, power dissipation of densely packed crosspoints, and control-plane complexity for large-scale matrices; common mitigations include hierarchical staging, Clos topologies, and time-division multiplexing. Analytical models employ stochastic processes, Markov chains, and maximum bipartite matching formulations to predict behavior under diverse traffic models and to dimension queues and switching fabrics for targeted quality-of-service objectives.

Implementation Technologies

Historic implementations used electromechanical crosspoints and sliding contacts; mid-20th-century telephony popularized galvanometer-actuated and magnetically latched crossbar switches. Semiconductor implementations utilize CMOS pass-transistor matrices, transmission gates, and CMOS tristate drivers, while III–V and MEMS technologies enable RF and millimeter-wave crossbar matrices. Photonic implementations use Mach–Zehnder interferometers, microresonator switches, and wavelength-selective elements to form optical crossbars; emerging approaches combine silicon photonics with electronic control planes for integrated data-center fabrics.

Historical Development and Notable Examples

Pioneering work in telephone exchange automation and electromechanical switching influenced early crossbar development alongside initiatives in national telecommunication operators. Major deployments occurred in mid-20th-century public-telephone systems and corporate switching centers. Later, computer-system manufacturers integrated crossbar memories and interconnects in symmetric multiprocessing machines and mainframes. Notable examples and institutions associated with crossbar evolution include historic telephone equipment vendors, national laboratories, and computer firms that advanced switching fabrics and control algorithms used in contemporary networking and computing platforms.
