Contiki

Contiki
Adnk · CC BY-SA 3.0 · source
Name	Contiki
Developer	Adam Dunkels, SICS, Swedish Institute of Computer Science; Cisco Systems; thingsquare
Family	Embedded, realtime
Source model	Open source (BSD-style)
Latest release	(varies by fork)
Kernel type	Microkernel, event-driven
License	BSD
Supported platforms	AVR, ARM, MSP430, x86, TI CC253x, ESP32

Contiki is a lightweight, open-source operating system designed for networked, memory-constrained embedded systems and Internet of Things devices. It provides a small-footprint multitasking environment, IPv4/IPv6 network stacks, and protothreads to enable cooperative multitasking on microcontrollers. Originally developed at the Swedish Institute of Computer Science by Adam Dunkels, the system has been used in academic research, industrial products, and standards work including IETF protocols and low-power wireless technologies.

History

Contiki originated in the early 2000s as a response to limitations observed in contemporaneous embedded systems research platforms such as TinyOS and academic projects at institutions like University of California, Berkeley and ETH Zurich. The principal author, Adam Dunkels, later contributed to Internet standards at the Internet Engineering Task Force where ideas from Contiki influenced lightweight networking proposals. Commercial interest from companies including Cisco Systems and startups such as Thingsquare fostered forks and maintenance efforts. Contiki has been demonstrated on platforms used in deployments by organizations like MIT labs, and influenced work at research centers including SICS and University of Southampton. Over time Contiki’s codebase has diverged into multiple active projects and forks maintained by universities, open-source communities, and vendors.

Architecture

The architecture centers on an event-driven kernel with optional preemptive threading via protothreads and lightweight processes, enabling applications to run with minimal RAM and ROM. Key components include a small scheduler, a network stack with IPv6/6LoWPAN adaptation, and modular radio drivers for transceivers such as those from Texas Instruments and Atmel. The network subsystem integrates implementations of RPL routing, CoAP application-layer messaging, and 6LoWPAN header compression to interoperate with IPv6 infrastructure. The build system and platform abstraction layer allow portability across microcontroller families including AVR, ARM Cortex-M, and MSP430. Contiki’s design reflects constraints similar to those addressed in embedded platforms developed at Carnegie Mellon University and University of California, Los Angeles graduate groups.

Supported Platforms and Devices

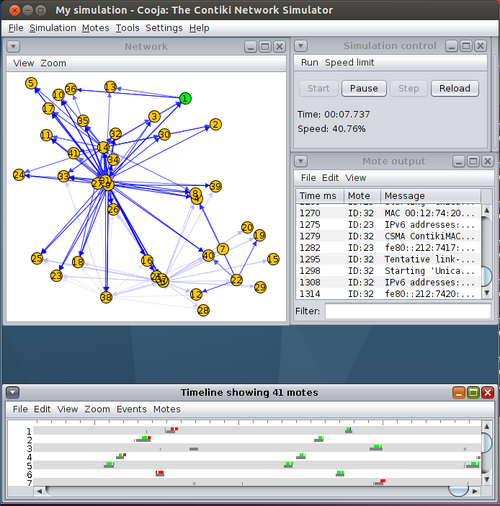

Contiki runs on a variety of microcontroller-based platforms and development boards commonly used by researchers and industry. Supported families include Atmel AVR series boards such as Atmel ATmega128, Texas Instruments MSP430 LaunchPad modules, ARM Cortex-M boards including STMicroelectronics STM32 and NXP LPC series, and commodity x86 PCs for simulation with tools like the Cooja simulator. Radio and system-on-chip targets include TI CC253x Zigbee SoCs, ESP32 modules from Espressif Systems, and sensor platforms used in projects at UC Berkeley and ETH Zurich. Several gateway and border-router implementations have been demonstrated on small single-board computers like Raspberry Pi and BeagleBone for integration with 6LoWPAN networks.

Development and Community

Development began in academic research groups and expanded to include corporate contributors, open-source maintainers, and standards bodies. The project attracted contributors from institutions such as SICS, Swedish Institute of Computer Science, and companies like Cisco Systems; forks and commercial services emerged from organizations including Thingsquare. Community activity has occurred on code hosting platforms and mailing lists used by embedded and IoT communities, with academic papers at conferences like ACM SenSys, IEEE IPSN, and USENIX describing protocol evaluations and system designs. Contiki-related tooling such as the Cooja network simulator enabled reproducible experiments used by researchers at MIT, TU Delft, and University of Cambridge.

Applications and Use Cases

Contiki has been used in environmental monitoring, smart building prototypes, industrial sensing, and academic testbeds. Deployments include sensor motes for projects at ETH Zurich, long-term monitoring platforms used in collaborations with University of Southampton and Imperial College London, and smart-metering experiments that interface with 6LoWPAN border routers connected to infrastructure like Raspberry Pi gateways. The OS supports constrained application scenarios using CoAP for device management and telemetry, integration with RPL mesh routing for multi-hop topologies, and interoperability with cloud services often mediated by controllers from vendors such as Cisco and open-source projects like OpenWrt.

Security and Performance

Security features in Contiki include optional implementations of IPsec-like link-layer protections, DTLS through lightweight libraries to secure CoAP endpoints, and access-control patterns developed in academic projects at SICS and ETH Zurich. Performance trade-offs emphasize minimal memory footprint and low energy consumption; mechanisms such as duty-cycling MAC protocols (used with radios from TI and Atmel) and optimized 6LoWPAN compression reduce radio-on time. Empirical evaluations published in venues like ACM SenSys and IEEE INFOCOM compare latency, throughput, and energy-per-packet against systems such as TinyOS and commercial embedded stacks, highlighting Contiki’s suitability for constrained sensor networks and low-power wide-area deployments.
