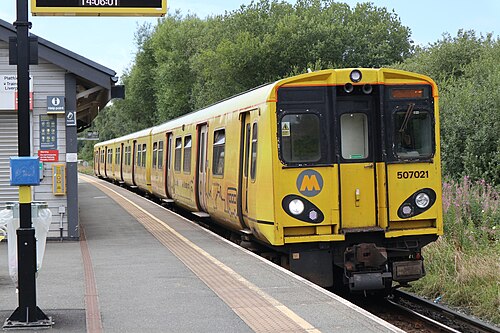

Class 507

Class 507
Vanmanyo · CC BY-SA 4.0 · source
Name	Class 507
Manufacturer	British Rail Engineering Limited
Family	1972 Tube Stock derivative
Yearconstruction	1978–1980
Numberbuilt	33 sets (99 cars)
Formation	3 cars per unit
Service	1978–present
Operator	Merseyrail
Depots	Birkenhead North Depot
Carlength	19.83 m
Maxspeed	75 mph (121 km/h)
Traction	750 V DC third rail
Brakes	Rheostatic and disc brakes

Class 507

The Class 507 electric multiple units entered service in 1978 as part of British Rail's regional suburban fleet, intended for commuter operations on the Merseyrail network. They were built by British Rail Engineering Limited and derived from contemporary Tube-derived designs used on London Underground and other urban railways, aiming to provide reliable 750 V DC third-rail stock for dense urban routes. Over decades, the fleet has seen multiple refurbishments, depot reorganisations, and operational shifts while remaining a core element of suburban rail around Liverpool and Birkenhead.

Design and construction

The units were produced by British Rail Engineering Limited at the York Works and influenced by the 1972 Tube stock family used by London Underground and units such as those on the Tyne and Wear Metro and Glasgow Subway projects. Intended for short-distance, high-frequency services, the three-car sets combined driving motor and trailer vehicles to optimise acceleration and passenger flow for commuter peaks serving stations like Liverpool Central, Birkdale, Southport, Hunts Cross, and Wirral lines. Construction incorporated corrosion-resistant metals and welded bodyshell techniques used in contemporary builds for the British Rail suburban fleets. A standardisation programme across BR suburban EMUs influenced component commonality with units deployed on networks operated by Greater Anglia and groups later restructured under privatisation, including Merseyrail Electrics.

Technical specifications

Each set consists of a driving motor standard (DMS), a trailer standard (TS), and a driving trailer standard (DTS). Traction equipment uses 750 V DC collection from the third rail with traction control developed from designs used on London Underground stock; traction motors are nose-suspended DC motors coupled via gearbox assemblies similar to those fitted to units in the 1972 tube stock family. Maximum speed is 75 mph (121 km/h), with rheostatic braking supplemented by disc brakes. Passenger capacity, seating arrangement, bodyside doors, and HVAC reflect late-1970s suburban priorities with longitudinal seating for peak loads. Electrical systems include multiple-unit compatibility features used across BR suburban EMUs and safety equipment consistent with rules applied by Railtrack and its successor Network Rail for infrastructure interfaces. Bogies follow proven designs used in BR multiple units with attention to wheel wear and track forces on routes such as the Hooton–Bebington corridor.

Service history

Commissioned into service during the late 1970s, the units replaced ageing stock on the Merseyrail network and became central to commuter operations across the Wirral and Northern lines. They operated alongside other EMUs introduced through the 1970s and 1980s regional modernisation efforts, and were phased into timetables managed initially by British Rail before transfer to the Merseyrail Electrics concession. During the 1990s and 2000s privatisation, fleets and depot responsibilities were reorganised under franchises and operating companies connected to Merseytravel and private partners. The units regularly handled peak services to termini including New Brighton, Ormskirk, and Kirkby, and were subject to timetable revisions influenced by regional development plans coordinated with bodies like Merseyside Passenger Transport Executive.

Refurbishments and upgrades

Throughout their operational life the sets underwent interior and systems refurbishments to extend asset life and improve passenger experience. Mid-life refurbishment programmes updated seating, lighting, passenger information systems, and introduced more durable materials following guidance from rolling stock initiatives by organisations such as Rail Safety and Standards Board. Electrical overhauls addressed traction control and auxiliary power units, while later cosmetic and accessibility works complied with accessibility expectations promoted by bodies like the Disability Rights Commission and legislation such as the Disability Discrimination Act 1995. More recent upgrades included improved door mechanisms, enhanced CCTV for station and onboard security aligned with standards encouraged by British Transport Police, and lighter-weight components to reduce maintenance cycles.

Operations and depots

Primary maintenance and stabling for the fleet have been concentrated at Birkenhead North Depot, with periodic heavy maintenance historically performed at main works such as York, Crewe, and contractor facilities contracted by operators. Operations are coordinated with Merseyrail timetabling controlled from centres liaising with Network Rail signalling centres and local control rooms in Liverpool to manage frequent suburban headways. The units have been allocated across Wirral and Northern lines, rotated through depot schedules to balance mileage and scheduled examinations, and occasionally used on diverted workings during infrastructure renewals on lines connecting to Warrington and Wigan.

Accidents and incidents

Over the fleet's service life, several incidents ranging from minor signal passed at danger events to collisions during extreme weather have been recorded and investigated by bodies such as the Rail Accident Investigation Branch. Individual events prompted modifications in crew training overseen by operators and standards reviews led by Office of Rail and Road inspectors. Some incidents resulted in repairable structural damage and temporary withdrawal of specific sets for overhaul at major workshops, with subsequent changes to operating procedures on affected routes like the Hunts Cross branch to improve safety margins.
