Charge-coupled device

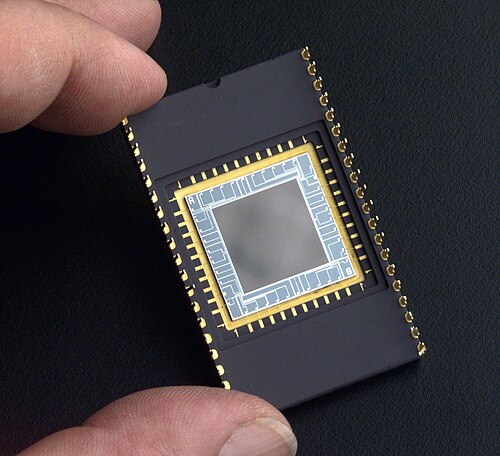

Charge-coupled device
Public domain · source
Name	Charge-coupled device
Type	Image sensor
Invented	1969
Inventor	Willard Boyle, George E. Smith
First commercialized	1970s
Applications	Photography, astronomy, spectroscopy, medical imaging

Charge-coupled device

A charge-coupled device is a semiconductor image sensor and analog shift register developed to convert optical information into electronic signals used in Photography, Astronomy, Television, Microscopy and Remote sensing. Invented at Bell Labs by Willard Boyle and George E. Smith and later commercialized by firms such as Fairchild Semiconductor, Kodak, and Sony, the device became central to developments in Digital camera technology, Spacecraft instruments, and Scientific instrumentation. The technology influenced Nobel-recognized work and intersected with efforts at institutions including NASA, European Space Agency, and CERN.

History

CCD origins trace to research at Bell Labs in 1969; inventors Willard Boyle and George E. Smith conceived a novel charge storage and transfer mechanism building on prior work in Semiconductor device physics and Integrated circuit design at companies such as Texas Instruments and Fairchild Semiconductor. Early demonstrations led to adoption by firms including RCA and Hewlett-Packard, while commercialization advanced through products by Kodak and Sony in the 1970s and 1980s. CCDs played pivotal roles in landmark projects: imaging for the Hubble Space Telescope, detectors for the Voyager probes, and instrumentation at observatories like Keck Observatory and Palomar Observatory. Recognition for the invention culminated in the awarding of the Nobel Prize in Physics to Boyle and Smith, reflecting the impact on fields spanning Astronomy and Biomedical research.

Principles of operation

A CCD operates by photoconversion of incident photons into electron–hole pairs within a semiconductor substrate such as Silicon. Incident photons generate charge packets in a photosensitive element; these packets are stored in potential wells formed by electrodes and clocked through the device by timed voltage phases to a readout amplifier, conceptually related to early work at Bell Labs and implementations by RCA. Charge transfer efficiency, dark current, and full-well capacity are governed by semiconductor physics developed in the context of Solid-state physics and manufacturing practices used by companies like Intel and Applied Materials. Readout involves correlated double sampling and on-chip amplification techniques similar to developments at Hewlett-Packard and Texas Instruments for low-noise measurement.

Types and architectures

CCDs were implemented in multiple architectures to suit applications: full-frame CCDs with global shutters used in astronomical arrays at institutions such as European Southern Observatory and NOIRLab; frame-transfer CCDs applied in instrumentation by NASA; interline-transfer CCDs common in consumer electronics produced by Sony; and specialized designs like back-illuminated CCDs used in X-ray astronomy and cryogenic detectors at facilities including SLAC and Brookhaven National Laboratory. Scientific variants include charge-injection devices and electron-multiplying CCDs developed by research groups at EMCCD pioneers and companies supplying instruments to Jet Propulsion Laboratory and observatories. Mosaic focal plane arrays combining many CCDs were deployed in instruments like Sloan Digital Sky Survey cameras and the Hubble Space Telescope's instruments.

Performance characteristics

Key performance metrics include quantum efficiency, read noise, dark current, dynamic range, charge transfer efficiency, and pixel size, all optimized for missions by agencies like NASA and laboratories such as Lawrence Berkeley National Laboratory. Quantum efficiency is improved via anti-reflection coatings and back-thinning processes developed by vendors including Scientific Imaging Technologies and Teledyne Imaging Sensors. Read noise and speed trade-offs were addressed through low-noise amplifiers, correlated double sampling, and innovations inspired by Bell Labs analog design. Radiation tolerance, critical for space missions like Voyager and Mars Reconnaissance Orbiter, is quantified against displacement damage and ionizing dose as characterized by teams at Jet Propulsion Laboratory and ESA laboratories.

Applications

CCDs enabled transformative advances in Astronomy (surveys such as Sloan Digital Sky Survey and instruments at Mauna Kea Observatories), consumer Digital camera markets driven by firms like Canon and Nikon, and scientific imaging including Fluorescence microscopy used in research at Max Planck Society and Cold Spring Harbor Laboratory. They were integral to spacecraft payloads from NASA missions such as Hubble Space Telescope and Galileo spacecraft, Earth-observing satellites operated by NOAA and USGS, and high-energy physics detectors at CERN and SLAC National Accelerator Laboratory. Medical devices from manufacturers like Siemens and Philips used CCDs in modalities including endoscopy and ophthalmic imaging. In industrial inspection and remote sensing, CCDs supported systems developed by Lockheed Martin and Raytheon.

Manufacturing and materials

Production leverages silicon wafer fabrication techniques established in the Semiconductor industry by firms such as Intel, TSMC, and GlobalFoundries. Processes include photolithography, ion implantation, thermal oxidation, and metalization using equipment from Applied Materials and ASML. Back-illuminated and thinned devices require precision thinning and passivation techniques developed in cooperation with academic labs at MIT and Stanford University. Packaging and CCD focal plane integration for spaceflight conform to standards used by JPL and tested at facilities like Ames Research Center and Sandia National Laboratories.

Limitations and alternatives

Limitations of CCDs include power consumption, manufacturing cost, limited on-chip integration for per-pixel processing, and susceptibility to radiation damage, leading to competition from alternatives such as complementary metal–oxide–semiconductor sensors commercialized by Sony, Canon, and OmniVision, as well as hybrid detectors like CMOS active pixel sensors used in Smartphone cameras and scientific hybrid arrays employed by Teledyne DALSA. CMOS technology offers lower power, higher integration, and faster readout, prompting shifts in markets and missions by organizations like NASA and firms in the Consumer electronics sector. Emerging alternatives include single-photon avalanche diodes developed in research at NIST and superconducting detectors advanced at MIT Lincoln Laboratory for extreme-sensitivity applications.
