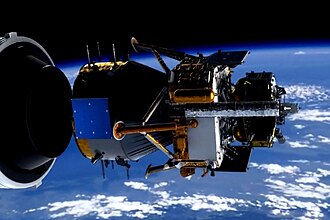

Chang'e 5

Chang'e 5
China News Service · CC BY 3.0 · source
Name	Chang'e 5
Namesake	Chang'e
Mission type	Sample-return
Operator	China National Space Administration
Cospar id	2020-087A
Satcat	47208
Mission duration	23 days
Launch date	2020-11-23
Launch site	Wenchang Spacecraft Launch Site
Launch vehicle	Long March 5
Manufacturer	China Aerospace Science and Technology Corporation
Dry mass	2,200 kg
Power	4 fixed solar panels
Programme	Chinese Lunar Exploration Program

Chang'e 5 was a Chinese robotic lunar exploration mission that completed the first robotic sample-return from the Moon since Luna 24 and introduced new capabilities in autonomous rendezvous, sample acquisition, and deep-space operations. Operated by the China National Space Administration and built by the China Aerospace Science and Technology Corporation, the mission returned about 1,731 grams of lunar material from the Oceanus Procellarum region, advancing comparative studies across Apollo program and Soviet Luna samples. The flight demonstrated integration of new launch infrastructure at Wenchang Spacecraft Launch Site with the heavy-lift Long March 5 vehicle and contributed to international lunar science priorities endorsed by Committee on Space Research.

Background and Objectives

The mission was conceived under the Chinese Lunar Exploration Program as a follow-on to the orbital and lander successes of Chang'e 3 and Chang'e 4, with objectives aligned to high-level goals set by the International Space Exploration Coordination Group and recommendations from the Planetary Science Decadal Survey community. Primary objectives included acquiring and returning near-surface lunar regolith and rock to address chronology questions raised by radiometric ages from the Apollo program and Luna series, test in-situ resource utilization precursor technologies related to Artemis program interests, validate autonomous lunar ascent rendezvous procedures comparable to techniques used by the Shenzhou crewed program for orbital rendezvous, and refine stratigraphic interpretations of the Oceanus Procellarum basalt province that had been studied by the Clementine and Lunar Reconnaissance Orbiter missions.

Spacecraft and Instrumentation

The architecture combined four elements: an Earth-return re-entry capsule, a ascender stage, a lander, and an orbiter service module. The spacecraft was developed by China Aerospace Science and Technology Corporation with subsystems tested in facilities associated with the National Space Science Center (China) and the Beijing Aerospace Flight Control Center. Instrumentation on the lander included panoramic cameras influenced by designs from the Yutu rover program, a ground-penetrating radar similar in heritage to instruments on Chang'e 4, a laser-induced breakdown spectrometer with lineage traceable to instruments on Mars rovers and the Rosetta lander, and sample acquisition hardware such as a drill and scoop informed by Lunar Reconnaissance Orbiter and Hayabusa2 techniques. The ascender carried propulsion and guidance systems comparable to the Shenzhou orbital modules for precise translational rendezvous with the orbiter. The orbiter housed late mission communication links compatible with Deep Space Network partners and autonomous navigation algorithms developed with inputs from the Beijing Institute of Control Engineering.

Mission Profile and Timeline

Launched on 2020-11-23 aboard a Long March 5 from Wenchang Spacecraft Launch Site, the mission inserted into a translunar trajectory that emulated phasing strategies used by Apollo and Soviet lunar missions. After lunar arrival the orbiter executed burns to enter a 200 km circular lunar orbit observed by the Lunar Reconnaissance Orbiter and tracked by the Shanghai Satellite Tracking and Control Center. The lander-ascender stack separated and performed a soft landing in the Oceanus Procellarum region near the Mons Rümker volcanic dome. Surface operations spanned approximately two days before the ascender executed an automated ascent to rendezvous and dock with the orbiter in lunar orbit, an operation comparable in complexity to the orbital docking maneuvers of Skylab servicing missions and the International Space Station but conducted robotically. After transfer of collected samples to the return capsule the orbiter performed trans-Earth injection and the re-entry capsule completed atmospheric entry and parachute descent targeted to the Siziwang Banner recovery area, coordinated with the People's Liberation Army recovery assets and civil aeronautical authorities.

Sample Collection and Return

Sampling employed a dual-mode strategy: drilling to retrieve subsurface cores and scooping to obtain regolith from the surface, leveraging mechanical designs influenced by Hayabusa2, OSIRIS-REx, and Luna 24. The drill recovered cores to depths designed to isolate materials unaffected by space weathering processes studied in Apollo samples, while the scoop acquired agglutinates and basalt fragments characteristic of the Oceanus Procellarum mare basalt unit. The ascender's rendezvous and automated docking enabled transfer of sealed sample canisters to the re-entry capsule. After lunar departure and trans-Earth coast, the re-entry capsule delivered approximately 1,731 grams to terrestrial curation teams coordinated through laboratory networks including the Institute of Geology and Geophysics, Chinese Academy of Sciences and international collaborators from institutions such as Smithsonian Institution and Natural History Museum, London under sample-sharing frameworks analogous to protocols employed after Apollo and Hayabusa returns.

Scientific Results and Analysis

Preliminary analyses returned petrological, geochemical, and isotopic constraints indicating that the collected samples are young mare basalts, with radiometric dating suggesting emplacement ages significantly younger than many returned Apollo basalts, corroborating remote-sensing age models for Oceanus Procellarum developed from Lunar Reconnaissance Orbiter and Chandrayaan-1 datasets. Mineralogical studies using transmission electron microscopy, electron microprobe, and secondary ion mass spectrometry provided comparative data relevant to lunar volcanism hypotheses posited in studies by teams from Massachusetts Institute of Technology, California Institute of Technology, Peking University, and University of Tokyo. Volatile and noble gas measurements informed models of retention and loss in lunar basalts discussed in literature from Lunar and Planetary Science Conference proceedings. The returned materials enabled calibration of remote-sensing spectral libraries from instruments aboard Chang'e 2, Chang'e 5-T1 test missions, and international orbital assets, refining interpretations of mare stratigraphy and mantle source heterogeneity debated in work by researchers at Brown University and University of Arizona.

Mission Impact and Legacy

The mission validated autonomous lunar ascent, orbital rendezvous, sample transfer, and Earth return capabilities, contributing operational knowledge to future Chinese and international missions including planned crewed lunar architectures and the Chinese International Lunar Research Station concept. The success influenced policy discussions at agencies such as European Space Agency, Roscosmos, and Japan Aerospace Exploration Agency regarding cooperative science and sample curation partnerships, and it catalyzed research programs at universities and national labs worldwide. By providing young mare basalt samples, the mission reshaped chronostratigraphic models used by the Planetary Science Decadal Survey and stimulated follow-on missions in the Chinese Lunar Exploration Program and multinational endeavors linked to Artemis program objectives.
