CTX camera

CTX camera

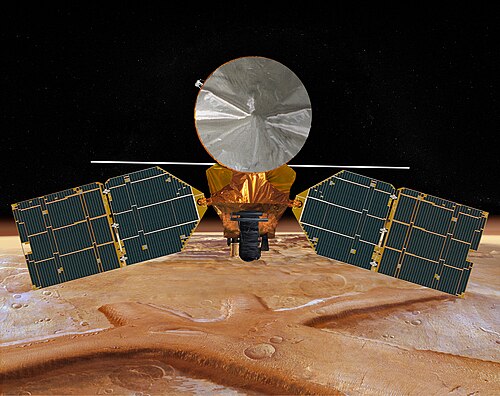

NASA/JPL/Corby Waste · Public domain · source
Name	CTX camera
Manufacturer	Malin Space Science Systems
Country	United States
Type	Pushbroom imager
Spectral bands	Panchromatic (visible)
Resolution	~6 meters per pixel
Swath	~30 kilometers
Launched	2006
Missions	Mars Reconnaissance Orbiter

CTX camera

The CTX camera is a high-resolution, wide-area imaging instrument flown on the Mars Reconnaissance Orbiter that provided context-scale mapping for targeted investigations by a suite of planetary payloads. It bridged regional mapping from instruments such as Mars Global Surveyor instruments and detailed observations by HiRISE while supporting science from platforms associated with Mars Exploration Rover campaigns and probes linked to Phoenix (spacecraft). The camera operated in concert with assets managed by institutions including JPL and Malin Space Science Systems during campaigns tied to planetary missions and orbital reconnaissance.

Overview

CTX was conceived to supply broad, moderate-resolution images to place narrow-field observations by other instruments into regional and geological context. It complemented datasets from earlier missions like Mars Odyssey THEMIS and later missions such as Mars Reconnaissance Orbiter's other instruments. CTX produced consistent, global-coverage mosaics that informed operations for landed missions associated with Curiosity (rover) and Opportunity (rover), as well as orbital investigations intersecting studies by teams at Caltech and Arizona State University. The instrument’s role included reconnaissance for candidate landing sites and synoptic monitoring relevant to events like the Gale Crater investigations and seasonal campaigns at the Martian polar regions.

Technical Specifications

CTX was a pushbroom, panchromatic imager with a spatial sampling designed around operational needs of orbital mapping and target selection. It achieved near 6 meters per pixel nadir resolution across a swath approximately 30 kilometers wide, with typical exposures optimized for solar illumination conditions near the altitude of the Mars Reconnaissance Orbiter orbit insertion. Optical and detector components were developed and tested under teams at Malin Space Science Systems and engineering oversight at JPL, meeting radiation and thermal constraints imposed by the Martian environment and the spacecraft bus. Data volumes were managed within onboard storage and downlink schedules coordinated with networks like Deep Space Network.

Instrument Design and Operation

The instrument used a linear array detector and foreoptics to image along-track as the spacecraft advanced, producing overlapping frames suitable for mosaicking and stereo when appropriate parallax was available. CTX’s design emphasized radiometric stability, stray-light suppression, and geometric fidelity to enable co-registration with Cartesian products from instruments such as HiRISE and spectral mapping from CRISM. Operational modes included standard mapping passes, targeted observations supporting tactical operations for surface missions, and campaign modes timed with seasonal events observed by teams at NASA Ames Research Center and mission planners at Lockheed Martin Space Systems. Command sequences were integrated with the mission timeline and flight software for optimum pointing and data compression.

Mission Deployments and History

CTX was launched aboard the Mars Reconnaissance Orbiter during the 2005--2006 campaign and began routine operations after orbital insertion in 2006. Throughout its operational life it contributed to large regional mapping initiatives, coordinated observation sequences with HiRISE, and supported landing-site selection processes used by missions culminating in selections like Gale Crater for Curiosity (rover). CTX archives informed scientific teams during opportunities such as the Mars Science Laboratory pre-landing reconnaissance and assisted investigators from University of Arizona and Purdue University. Its mission history includes participation in publicly released mosaics, response observations to transient events cataloged by groups at University of Colorado Boulder and Swiss Federal Institute of Technology Lausanne collaborations.

Scientific Objectives and Results

Primary objectives were to characterize geomorphology, surface processes, and stratigraphic context across diverse Martian terrains. CTX imagery enabled studies of fluvial features, aeolian landforms, mass-wasting events, and glacial-related morphologies that informed publications by researchers at Brown University, University of Hawaiʻi at Mānoa, and Imperial College London. Results included mapping of channel networks in basins linked to regional hydrology analyses, identification of candidate layered outcrops for follow-up by HiRISE and CRISM, and monitoring of slope streaks and dune migration that aided teams at University of California, Los Angeles and Pennsylvania State University. CTX data supported multi-instrument syntheses addressing Martian paleoclimatology and sedimentary processes.

Data Processing and Products

Raw pushbroom frames were calibrated for detector response, radiometry, and geometric distortions, then assembled into map-projected products. Standard products included radiometrically corrected single-frame images, orthorectified map tiles, stereo pairs when paired with adjacent passes, and global coverage mosaics suitable for GIS clients used by institutions like USGS planetary mapping programs. Data distribution followed mission archive protocols coordinated with the Planetary Data System and was utilized by international research teams at University of Oxford, Max Planck Institute for Solar System Research, and others. Ancillary products included observation planning metadata, spacecraft pointing kernels, and contextual overlays for mission operations.

Calibration and Performance

Pre-launch and in-flight calibration campaigns established CTX radiometric scales, geometric models, and modulation-transfer characterization. Cross-calibration with instruments such as Mars Global Surveyor MOC and HiRISE enabled consistent photometric interpretation across datasets. Performance assessments documented stability of the focal plane, noise characteristics, and spatial resolution under variable illumination and viewing geometries; teams at Malin Space Science Systems and JPL periodically updated calibration pipelines to correct for any aging effects. Operational performance met mission requirements for context imaging throughout the primary and extended mission phases.
