CATIA V5
Generated by GPT-5-miniExpansion Funnel Raw 72 → Dedup 0 → NER 0 → Enqueued 0
| CATIA V5 | |
|---|---|

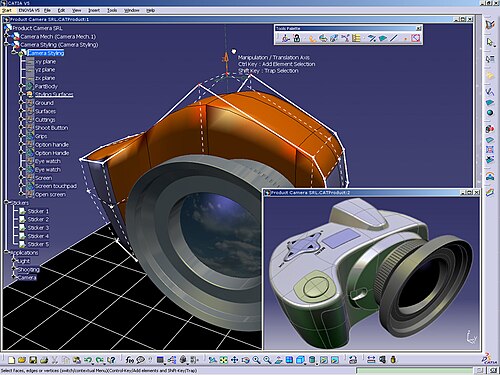

 CDC Catia at English Wikipedia · Public domain · source | |
| Name | CATIA V5 |
| Developer | Dassault Systèmes |
| Released | 1998 |
| Latest release | V5R30 (varies) |
| Operating system | Microsoft Windows |
| Genre | CAD/CAM/CAE |
| License | Proprietary |
CATIA V5 is a parametric 3D CAD/CAM/CAE software suite developed for product design, engineering, and manufacturing. It integrates surface modeling, assembly management, and analysis tools used across aerospace, automotive, shipbuilding, consumer goods, and industrial equipment sectors. The platform is closely associated with major industrial programs and suppliers in Airbus, Boeing, Renault, Ford Motor Company, and General Motors.
Introduction
CATIA V5 was created by Dassault Systèmes as a successor to legacy CAD systems and competes with products from Siemens PLM Software, Autodesk, PTC (company), and Bentley Systems. It supports complex geometry, multi-disciplinary assemblies, and collaborative engineering workflows used by corporations such as Thales Group, Safran, Bombardier Inc., Rolls-Royce Holdings, and Hyundai Motor Company. The suite interfaces with enterprise platforms like SAP SE, IBM, Oracle Corporation, and Microsoft for data and lifecycle management.
History and Development
Development began in the 1990s within Dassault Aviation and Dassault Systèmes engineering groups to address advanced surface and assembly design needs similar to earlier systems used on Mirage 2000 and Rafale (aircraft). The V5 architecture was released in 1998 and evolved through numbered releases (R1–R30) while partnering with OEM programs from Airbus A380 and Boeing 787 Dreamliner. Strategic alliances with IBM and integrations with ENOVIA and CATIA V4 migration projects shaped its enterprise adoption by suppliers working on programs like Eurofighter Typhoon and A320 family.
Architecture and Core Modules
CATIA V5 uses a multi-tier architecture built atop the Dassault Systèmes kernel and supports parametric and non-parametric modeling paradigms. Core modules include Part Design, Assembly Design, Generative Shape Design, and Drafting, complemented by Digital Mockup (DMU), Knowledgeware, and Analysis modules. The platform interoperates with PLM systems such as ENOVIA and simulation tools like ABAQUS and SIMULIA; it also exchanges data with neutral formats like STEP, IGES, and DXF used by partners including Siemens NX and SolidWorks.
Key Features and Functionality
The suite provides parametric feature trees, associative assemblies, and high-fidelity surfacing used in programs from Ferrari and Porsche to Navantia and Fincantieri. Advanced capabilities include finite element pre/post-processing integration with SIMULIA, kinematics and mechanism simulation like that used by McLaren and Scania, and manufacturing modules for NC programming aligned with DMG Mori and Hermle. Data management features integrate with ENOVIA and Teamcenter for configuration control in supply chains for Airbus Military and NATO contractors. Interoperability supports exchanges with Autodesk Inventor, Creo (software), and Rhino (software).
Industry Applications and Use Cases
Aerospace: used on programs by Airbus, Boeing, Safran, and Rolls-Royce Holdings for airframe, engine, and systems design. Automotive: deployed by Renault, General Motors, Ford Motor Company, and Volkswagen Group for chassis, body-in-white, and trim design. Shipbuilding and Offshore: applied by Fincantieri, Navantia, and TechnipFMC for hull and piping design. Industrial Machinery and Consumer Goods: used by Siemens AG divisions, Bosch, Electrolux, and Philips for equipment and appliance development. High-performance engineering: adopted by McLaren Technology Group, Ferrari, and Lotus Cars for aerodynamic and structural optimization.
Licensing and Versions
Licenses are proprietary and sold by Dassault Systèmes through channel partners and OEM agreements; options include node-locked, floating, and enterprise PLM bundles with ENOVIA. Major releases are denoted V5R# (e.g., V5R21, V5R27) and coexist with CATIA 3DEXPERIENCE offerings. Academic and student versions have been distributed via collaborations with institutions such as Massachusetts Institute of Technology, École Polytechnique, and University of Stuttgart.
Training, Support, and Community
Training and certification are provided by Dassault Systèmes and service providers including Tata Consultancy Services, Accenture, and Capgemini. User communities and forums, plus local user groups and events like those sponsored by SEAT, ZF Friedrichshafen, and industry associations, offer knowledge exchange. Academic partnerships with Ecole des Mines de Paris, Politecnico di Milano, and Cranfield University foster curriculum integration and research collaborations. Third-party ecosystems include consulting firms, tooling vendors, and PLM integrators supporting implementation on programs for Airbus Helicopters and ThyssenKrupp.
