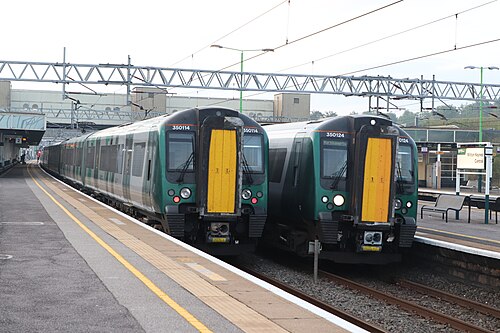

British Rail Class 350

British Rail Class 350
Alex Noble · CC0 · source
Name	Class 350
Service	2004–present
Manufacturer	Siemens Mobility
Family	Desiro
Yearconstruction	2004–2014
Numberbuilt	87 sets
Formation	4 cars per unit
Operator	Multiple operators
Maxspeed	100 mph (160 km/h)
Traction	IGBT–VVVF
Electricsystem	overhead line 25 kV AC
Safety	AWS, TPWS, ETCS (some units)

British Rail Class 350 is an electric multiple unit introduced in the early 2000s for inter-regional and commuter services on the West Coast Main Line, Great Western Main Line, and other electrified routes in England. Built by Siemens Mobility as part of the Desiro family, the units entered service with operators including Central Trains, Silverlink, London Midland, and later West Midlands Trains and TransPennine Express. Designed for mixed-traffic duties, the Class 350 combined regional comfort with acceleration suited to suburban stopping patterns.

Design and Development

Siemens developed the Desiro platform during the 1990s to compete in European markets including Germany, Austria, and the United Kingdom. The Class 350 emerged from a UK procurement driven by the 1997–2004 electrification programmes on the West Coast Main Line and the requirements set by franchises such as Central Trains and Silverlink. Design priorities included compatibility with 25 kV AC overhead supply used on the West Coast Main Line, compliance with Railways and Other Guided Transport Systems (Safety) Regulations 2006-era standards, and interoperability with signalling systems used by Network Rail and franchisees like London Midland. Prototype testing involved trials on routes connecting Birmingham New Street, London Euston, and Crewe to validate acceleration and braking for mixed stopping services.

The Desiro core architecture shared components with continental models used by operators such as Deutsche Bahn and ÖBB, while UK-specific adaptations addressed loading gauge, crashworthiness influenced by the Railway Safety Standards Board, and passenger amenities defined by franchise commitments with transport authorities like Transport for London and the West Midlands Combined Authority.

Technical Specifications

Each four-car unit uses aluminium alloy car bodies with welded construction and corrosion protection methods practised by Siemens at manufacturing sites associated with Krefeld and final assembly contracted in the UK. Traction is provided by IGBT–VVVF inverters driving three-phase asynchronous motors, compatible with 25 kV AC overhead collection via pantograph designs homologated to Network Rail standards. Maximum speed is 100 mph (160 km/h) with acceleration profiles tuned for suburban and regional timetables between hubs such as Birmingham International and London Euston.

Onboard systems include Automatic Warning System (AWS), Train Protection & Warning System (TPWS), and selective retrofitting of European Train Control System (ETCS) equipment for deployments on ETCS-equipped sections. Passenger facilities comprise air-conditioning, plug and play passenger information systems meeting specifications from the Department for Transport, accessible toilets complying with standards from the Disability Discrimination Act era, and provisioned multiple unit coupling via Dellner couplers used across modern UK fleets. Bogies and suspension components follow designs used in other Desiro derivatives employed by operators such as Thameslink and Great Western Railway for ride quality.

Operations and Services

Initial deployments of the Class 350 were on outer suburban and inter-regional services, displacing older units such as the Class 322 and portions of Class 321 fleets on routes radiating from Euston. Operators rotated units across franchises during changes in franchise arrangements, with notable operators including Central Trains, Silverlink, London Midland, West Midlands Trains, and TransPennine Express. The units have served long-distance commuter flows on the West Coast Main Line and regional links on the Midland Main Line and CrossCountry-replaced paths following timetable recasts.

Operational flexibility allowed use on airport links serving Manchester Airport and interchanges at hubs like Crewe and Birmingham International. Depot allocations have included major maintenance centres such as Alstom Crewe-adjacent facilities and Siemens-supported depots. Performance in service influenced timetable planning undertaken by Network Rail and franchise holders when integrating Class 350 sets with electrified and non-electrified units in mixed consists.

Variants and Subclasses

The Class 350 family includes sub-classes produced under different orders and interior specifications. Early batches often referenced as the 350/1 and 350/2 series were followed by subsequent production runs with refinements in seating, onboard information displays, and minor electrical upgrades. Units built for inter-city oriented franchises received interior layouts prioritising higher-density seating used by operators like TransPennine Express, while commuter-orientated units maintained standard Desiro seating similar to variants operated by SBB and ÖBB in continental configurations.

Some subclasses were retrofitted with ETCS for operation on trial sections managed by Network Rail and were fitted with enhanced onboard telematics for compatibility with traffic management systems overseen by the Office of Rail and Road. Coupling and multiple-working compatibility with other Desiro-based classes enabled temporary formations during peak demand, subject to operators' rostering strategies administered by franchises including West Midlands Trains.

Fleet History and Incidents

Since introduction, the Class 350 fleet has demonstrated reliable service metrics but has been involved in incidents analysed by entities such as the Rail Accident Investigation Branch and Office of Rail and Road. Reported issues have included wheelset maintenance events, signalling-related occurrences on routes like the West Coast Main Line, and isolated door-system faults leading to temporary withdrawals for rectification by Siemens engineering teams. Notable operational impacts occurred during timetable disruptions where Class 350 units were reallocated across franchises, prompting contingency planning by Network Rail and franchise operators such as London Midland and TransPennine Express.

Upgrades and mid-life overhauls have extended service life, coordinated with depot programmes influenced by rolling stock strategies set by the Department for Transport and rolling stock leasing companies like Eversholt Rail Group and Angel Trains which have been owners and lessors of many units. The fleet continues to play a role in the ongoing electrified passenger network, with future availability subject to franchise awards and infrastructure developments championed by transport bodies including the West Midlands Combined Authority and national rail planning entities.
