Bi2Te3

Bi2Te3

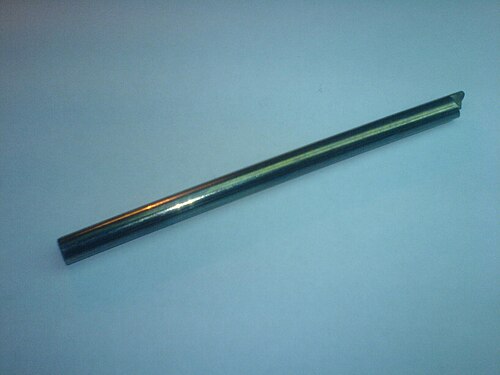

Original uploader was User:333 in ru-wikipedia · Public domain · source
Name	Bismuth telluride
Formula	Bi2Te3
Molar mass	800.22 g·mol−1
Appearance	gray metallic
Crystal system	rhombohedral
Density	7.7 g·cm−3
Melting point	585 °C

Bi2Te3 is a crystalline binary compound composed of bismuth and tellurium that serves as a prototypical narrow-gap semiconductor and a benchmark thermoelectric material. Discovered and characterized in early 20th-century solid‑state studies, it has been central to developments in materials science, condensed matter physics, and energy conversion technologies. Bi2Te3 links research in crystallography, band theory, and device engineering across multiple national laboratories and university groups.

Introduction

Bi2Te3 has been investigated by investigators at institutions such as Bell Labs, Massachusetts Institute of Technology, University of Cambridge, Argonne National Laboratory, and Max Planck Society for its exceptional performance in near-room-temperature thermoelectric applications. Historic studies by researchers connected to American Physical Society journals and presentations at Materials Research Society meetings established its role alongside compounds like PbTe and Skutterudite. The material has also become prominent in the literature on topological phases following theoretical proposals and experimental confirmations reported in venues associated with Princeton University and Stanford University.

Crystal structure and properties

Bi2Te3 crystallizes in a layered rhombohedral structure (space group R-3m) closely related to materials studied at Royal Society symposia on crystal chemistry. The lattice can be described as quintuple layers (Te–Bi–Te–Bi–Te) stacked along the c-axis, a motif analyzed in crystallographic databases curated by International Union of Crystallography. These quintuple layers are bonded by van der Waals forces, a structural feature also seen in materials like Graphite and MoS2. Key physical properties—mass density, thermal conductivity, and elastic constants—have been measured using techniques developed at National Institute of Standards and Technology and reported in compilations by Springer Nature and the American Chemical Society.

Electronic structure and topological insulator behavior

Band-structure calculations using methods pioneered at Los Alamos National Laboratory and implemented in codes from Argonne National Laboratory and Lawrence Berkeley National Laboratory predict a small indirect band gap in Bi2Te3; experimental confirmation via angle-resolved photoemission spectroscopy came from groups affiliated with Stanford University, University of California, Berkeley, and Harvard University. Theoretical work by scholars connected to Princeton University and California Institute of Technology identified Bi2Te3 as a three-dimensional strong topological insulator, a prediction subsequently validated by experimental teams at University of Würzburg and University of Oxford. Surface states in Bi2Te3 exhibit Dirac-cone dispersion protected by time-reversal symmetry, concepts elaborated in reviews associated with Nobel Prize-winning developments in condensed matter physics. These electronic features have been probed alongside magnetotransport studies conducted in facilities such as CERN and national high-field laboratories.

Thermoelectric properties and applications

Bi2Te3 has one of the highest room-temperature thermoelectric figures of merit (zT) among bulk materials, a property that has driven applications from Peltier coolers in NASA instrumentation to energy-harvesting modules in European Space Agency projects. Device engineering work performed by groups at Hitachi, Siemens, and Toyota integrated Bi2Te3 in refrigerators, precision temperature controllers, and waste-heat recovery demonstrations. Enhancements through alloying with Sb2Te3 or nanostructuring—approaches developed in laboratories at Oak Ridge National Laboratory and ETH Zurich—aim to reduce lattice thermal conductivity while preserving electrical transport, strategies articulated in conferences organized by IEEE and TMS.

Synthesis and fabrication methods

Common synthesis routes include zone melting and Bridgman growth originally used in industrial research by Bell Labs and later refined at Hawaii Institute of Geophysics-linked groups, as well as chemical vapor deposition and molecular beam epitaxy techniques advanced at IBM Research and IBM Thomas J. Watson Research Center. Powder synthesis via ball milling and hot pressing, methods promoted by teams at Argonne National Laboratory and National Renewable Energy Laboratory, enable bulk thermoelectric pellet production. Thin-film deposition for electronic and topological studies uses molecular beam epitaxy and sputtering protocols established at Paul-Drude-Institut für Festkörperelektronik and Korean Advanced Institute of Science and Technology facilities. Characterization methods—X-ray diffraction at synchrotrons managed by European Synchrotron Radiation Facility and electron microscopy at Max Planck Institute for Metals Research—are routinely applied to assess phase purity and defect chemistry.

Safety and handling

Handling of Bi2Te3 follows guidelines developed by chemical safety offices at Centers for Disease Control and Prevention and occupational standards from Occupational Safety and Health Administration. Tellurium compounds can produce odorous and toxic tellurides; laboratories such as those at University of California, Los Angeles and Yale University implement fume hoods, personal protective equipment, and waste disposal procedures consistent with Environmental Protection Agency recommendations. Shipping and storage are governed by regulations from Department of Transportation (United States) and international rules promulgated by International Maritime Organization for hazardous materials. In vitro toxicity studies reported in journals associated with American Association for the Advancement of Science inform risk assessments for manufacturing and research personnel.
