Bell AH-1 Cobra

Bell AH-1 Cobra
US Army · Public domain · source
Name	Bell AH-1 Cobra

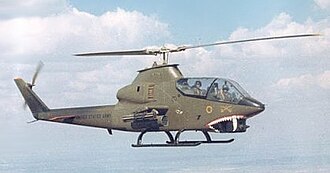

Caption	AH-1 Cobra attack helicopter in flight
Type	Attack helicopter
Manufacturer	Bell Helicopter
First flight	1965
Entered service	1967
Status	Retired or limited service
Primary user	United States Army

Bell AH-1 Cobra The Bell AH-1 Cobra is a single-engine attack helicopter developed by Bell Helicopter Textron for the United States Army during the Vietnam War. Designed to provide dedicated close air support and escort for UH-1 Iroquois gunships and transport formations, the Cobra introduced a slim fuselage, tandem seating, and a turreted nose armament suite that influenced later attack helicopters such as the AH-64 Apache and the Eurocopter Tiger. Its service life spanned multiple conflicts and operators, including modernizations that extended operational relevance into the 21st century.

Development and Design

Development traces to requirements issued by the United States Army Aviation Branch and experimental work at Bell Helicopter Textron under programs connected with the Aerospace Research Pilot School era and the broader Vietnam War aviation expansion. The prototype, designated Bell Model 209, performed its maiden flight in 1965 and competed against concepts from Lockheed, Sikorsky Aircraft, and Boeing Vertol for attack roles envisioned by planners at Fort Rucker and the United States Army Armor Center. Design priorities emphasized a narrow fuselage to reduce target profile for North Vietnamese Army and Viet Cong anti-aircraft threats, a tandem cockpit borrowed conceptually from Westland Lynx seating arrangements, and a turreted nose mounting that integrated weapon systems akin to configurations used on Mossie and contemporary rotary-wing gunships. Early prototypes and evaluation aircraft interacted with testing programs at NASA flight research centers and training at Fort Wolters.

The Cobra's layout optimized rotorcraft aerodynamics derived from Bell's experience with the Bell 204 and Bell 206 families, while its transmission and powertrain reflected lessons from General Electric repowered turboshaft developments. Structural choices balanced survivability against weight constraints established by DoD procurement officials and influenced later procurement decisions by the Army Aviation and Missile Command. The resulting airframe featured tandem seating for pilot and gunner with a narrow cross-section to improve frontal area reduction against engagement by forces associated with the Ho Chi Minh Trail environment.

Operational History

The AH-1 entered frontline service with the 1st Cavalry Division (Airmobile) and participated in major operations such as Operation Pershing and Operation Lam Son 719. Cobras provided escort for Huey assault columns during engagements with units of the People's Army of Vietnam and engaged in anti-infiltration patrols along the Ho Chi Minh Trail corridor. In subsequent decades, Cobras were deployed by Israel Defense Forces variants in conflicts including the Lebanon War (1982) and actions involving Hezbollah. Export operators deployed Cobras in regional confrontations and internal security operations involving states such as Iran during the Iran–Iraq War and in Pakistan border operations.

Cobras participated in Operation Urgent Fury and Operation Just Cause under United States Southern Command theaters, and later supported Operation Desert Storm logistics and close support screening missions. Modernized examples saw use in counterinsurgency campaigns in Iraq War deployments and limited roles during Operation Enduring Freedom in Afghanistan. Internationally, Cobras operated under regimes and forces including the Royal Thai Air Force, Philippine Air Force, and Turkish Land Forces, engaging in border security and counterinsurgency missions against groups such as Tamil Tigers in differing regional contexts.

Variants

Production variants evolved from early Model 209 prototypes to the definitive AH-1G used in Vietnam War service. Upgraded models included the AH-1Q and AH-1S series integrating advanced targeting systems from Honeywell and repowered engines by Allison Engine Company conversions, with subsequent AH-1F remanufacture programs incorporating composite rotor blades influenced by McDonnell Douglas rotorcraft research. Export and domestic remanufacture created families such as the AH-1P and AH-1E Firesnake, while twin-engine conversions produced the AH-1T and AH-1W SuperCobra variants serving the United States Marine Corps. Civil and law-enforcement conversions appeared with platforms used by agencies including the California Highway Patrol and private contractors supporting United Nations missions in limited roles.

Major upgrade packages incorporated avionics suites reflecting work by firms like Rockwell Collins and sensor turret integrations from companies such as Westinghouse and Raytheon. Some airframes were remanufactured into two-seat trainers and firefighting platforms for the United States Forest Service and international civilian operators.

Armament and Avionics

The AH-1's nose typically mounted a chin turret with a trio of miniguns or a combination of a 20 mm cannon derivative influenced by systems used on McDonnell Douglas F-4 Phantom II and light-gunship installations seen in Lockheed AC-130 configurations. Rocket pods carrying 2.75-inch Hydra 70 rockets were standard, and TOW missile integration enabled anti-armor engagement analogous to M47 Dragon anti-tank doctrine. Later avionics upgrades added night-flying capability via FLIR and helmet-mounted sights developed with input from Sperry Corporation partnerships and targeting systems derived from AN/ASQ family sensors. Fire-control improvements paralleled developments in anti-armor tactics studied at Fort Benning and were coordinated with weapons testing at ranges such as Yuma Proving Ground.

Cockpit instrumentation evolved from analog gauges to multifunction displays and navigation suites compatible with Global Positioning System receivers and communications gear used by NATO interoperable forces. Defensive aids packages included countermeasures and infrared suppression measures influenced by survivability research at Aviation Applied Technology Directorate.

Operators

Primary operators included the United States Army during initial service and replacement programs, followed by international users such as the Israeli Air Force, Iranian Air Force, Royal Thai Army Aviation Center, Turkish Army Aviation Command, Philippine Air Force, Pakistan Army Aviation Corps, and export recipients across Latin America and Asia. Marine Corps variants served the United States Marine Corps under the AH-1W designation and associated squadrons at Marine Corps Air Station Yuma and MCAS Cherry Point. Civilian remanufactured airframes were fielded by state agencies and private contractors supporting roles in aerial firefighting and security.

Survivors and Museums

Numerous airframes are preserved at institutions including the National Museum of the United States Army, Smithsonian National Air and Space Museum, Pima Air & Space Museum, Imperial War Museum Duxford, and the Yanks Air Museum. Static displays and airworthy examples appear at facilities such as Palm Springs Air Museum and Flying Leatherneck Aviation Museum, while some Cobras remain in private collections and warbird registries maintained by organizations like the Commemorative Air Force.
