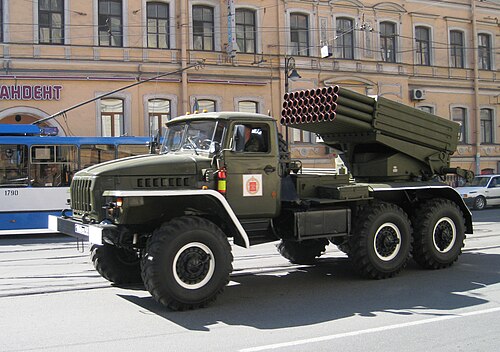

BM-21 Grad

BM-21 Grad
Robert Wray · CC BY-SA 3.0 · source
Name	BM-21 Grad
Origin	Soviet Union
Type	Rocket artillery
Service	1963–present
Used by	See Operators and Deployment
Designer	Soviet Armed Forces
Design date	1960s
Manufacturer	Motovilikha Plants, Splav State Research and Production Association
Production date	1960s–present
Number	Thousands
Weight	13,000 kg (combat)
Length	7.35 m
Caliber	122 mm
Velocity	710 m/s
Max range	20 km (standard rocket)
Feed	40-round launcher
Carriage	Ural-375D, ZIL-131

BM-21 Grad The BM-21 Grad is a Soviet-era 122 mm multiple rocket launcher system introduced in the early 1960s. It mounted a 40-tube launcher on a Ural-375D truck chassis and provided a high-volume, short-duration rocket barrage capability for Soviet and Warsaw Pact formations. The system influenced postwar rocket artillery doctrine in NATO and dozens of other states, appearing in conflicts from Vietnam War aftermath theaters to 21st-century Russo-Ukrainian War engagements.

Design and Development

Development began in the late 1950s under Soviet artillery modernization programs influenced by experiences in World War II and Cold War requirements set by the Soviet Armed Forces. Designers at the Tula Arms Plant and later production by Motovilikha Plants and Splav State Research and Production Association produced a modular launcher for massed fires compatible with 122 mm rockets standardized across Warsaw Pact inventories. The system drew on lessons from the Katyusha rocket launcher and was conceived to support formations such as motor rifle divisions and tank divisions with saturating indirect fires. Doctrine produced by the Ministry of Defense (Soviet Union) emphasized shoot-and-scoot tactics aligned with developments in self-propelled artillery and counter-battery procedures shaped by NATO sensor networks.

Technical Description

The launcher comprises a 40-tube rectangular array mounted on a modified Ural-375D or later ZIL-135 and ZIL-131 chassis permitting road mobility and quick emplacement. Rockets are 122 mm in caliber, spin-stabilized or fin-guided depending on variant, with standard ranges around 20 km and extended-range designs exceeding 30 km developed later. Fire control integrates a mechanical aiming system and can be linked to battery command posts used by units such as Artillery Reconnaissance Battery (Soviet) and coordinated with assets like Unmanned aerial vehicle reconnaissance from formations modeled after Soviet Airborne Troops. Crew positions, reload procedures, and logistic support reflect Soviet sustainment practices from institutions including the Rear Services of the Armed Forces and are compatible with allied munitions stockpiles across Warsaw Pact members like East Germany and Czechoslovakia.

Operational History

Entered service with the Soviet Army in 1963 and was subsequently exported to many Warsaw Pact and allied countries, including Poland, Romania, Bulgaria, Cuba, and North Korea. The system saw deployment in regions influenced by Cold War tensions such as Middle East clients and African states like Angola during proxy conflicts involving Soviet Union advisors and Cuban Revolutionary Armed Forces. Post-Cold War proliferation placed launchers into inventories of successor states including Russia and Ukraine, as well as non-state actors in conflicts such as Syrian Civil War and insurgent operations in Iraq and Afghanistan.

Variants and Derivatives

Licensed and unlicensed variants were produced by countries including Poland's WZM, Czechoslovakia's defense plants, and factories in China producing systems inspired by the design. Domestic upgrades produced by Russia and others introduced armored cabs, extended-range 122 mm rockets, and automated fire-control suites compatible with networks used by formations like Western Military District (Russia). Specialized derivatives include towed adaptations, navalized launchers for corvette and patrol ships in services such as the Vietnam People's Navy, and local rebuilds fielded by operators like Israel-captured examples studied by institutions including the Israel Defense Forces.

Operators and Deployment

Primary operators included the Soviet Army and Warsaw Pact members such as East Germany, Poland, Czechoslovakia, Hungary, and Bulgaria. Exported widely, the launcher entered inventories of India, Iraq, Syria, Egypt, Libya, Algeria, Angola, Cuba, North Korea, and others. After the dissolution of the Soviet Union, successor states such as Russia, Ukraine, Belarus, and Kazakhstan retained systems. Non-state groups in Lebanon, Palestinian territories, and various insurgencies have employed captured or imported launchers. Deployment patterns mirrored Cold War alignments maintained by clients of Interflug era logistics and post-Cold War arms markets influenced by companies like Rosoboronexport.

Combat Use and Notable Engagements

The launcher was used in numerous conflicts: limited post-colonial wars in Africa such as the Angolan Civil War, the Yom Kippur War and other Arab–Israeli conflict episodes, the Iran–Iraq War, the Gulf War, and insurgencies during the Iraq War. In the Syrian Civil War, both state and non-state forces used launchers for urban and field bombardments observed by international organizations including United Nations monitors. During the Russo-Ukrainian War, the system has been reported in frontline use and analyzed by think tanks such as International Crisis Group and Institute for the Study of War for its role in saturation bombardment and counter-battery vulnerability. Notable engagements include massed barrages that shaped outcomes in battles where rapid area denial and suppression were decisive, reflecting doctrine codified by the Soviet General Staff.
