BL 12-inch Mk X naval gun

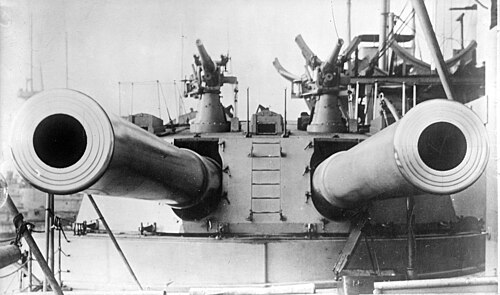

BL 12-inch Mk X naval gun
Unknown, Bain news service · Public domain · source
Name	BL 12-inch Mk X naval gun
Origin	United Kingdom
Type	Naval gun
Service	1906–1945
Designer	Elswick Ordnance Company / Royal Gun Factory
Used by	Royal Navy, Imperial Japanese Navy (via analogy in design influence)
Wars	First World War, Second World War
Weight	46.5 tons (barrel & breech)
Length	45 ft (bore length)
Caliber	12 in (305 mm)

BL 12-inch Mk X naval gun was a British breech-loading heavy naval gun introduced in the early 20th century for use in Dreadnought-era Royal Navy battleships and battlecruisers. It formed a principal main armament for several pre-World War I and World War I capital ships and influenced contemporaneous heavy gun design in foreign navies such as the Imperial German Navy and United States Navy. The gun saw action in major naval engagements and remained in service into the interwar period and World War II in secondary roles.

Design and Development

The BL 12-inch Mk X naval gun was developed during a period of rapid naval innovation exemplified by the commissioning of HMS Dreadnought and debates within the Admiralty over capital ship armament. Design work involved the Royal Gun Factory and private firms like the Elswick Ordnance Company to meet requirements set by the Director of Naval Ordnance and naval architects at Vickers. The Mk X combined lessons from earlier heavy guns such as the BL 12-inch Mk IX and contemporary foreign designs fielded by the Kaiserliche Marine and United States Navy, incorporating wire-wound construction and a Welin breech block to achieve higher muzzle energy, reliability under sustained fire, and compatibility with new propellant formulations developed at the Woolwich Arsenal and tested at the Aberdeen Proving Ground and Shoeburyness ranges.

Technical Specifications

The gun had a 45-calibre length giving a bore length of roughly 45 ft, a calibre of 12 inches (305 mm), and a barrel and breech weight around 46.5 tons. It fired 850–870 lb (385–395 kg) projectiles using cordite charges developed by scientists at the Royal Gunpowder Factory. Mounting options included twin turrets on HMS Colossus (1910)-class and HMS Neptune (1909) as well as triple and twin centre-pivot mounts on later Lord Nelson-class battleship platforms. The weapon used separate-loading ammunition with a Welin interrupted-screw breech, hydraulic recoil cylinders supplied by firms like Vickers and elevation gearing influenced by designers from Armstrong Whitworth. Fire control integration later tied the Mk X to director systems pioneered by Admiral Sir Percy Scott, rangefinders produced by Barr and Stroud, and fire-control tables from the Admiralty.

Service History

Enterprising deployment began with capital ships completed in the 1906–1913 window; classes mounting the Mk X engaged in patrols, fleet actions, and convoy escort duties under commanders from the Grand Fleet. The gun participated indirectly in the Battle of Jutland aboard vessels equipped with the Mk X pattern, contributing to gunnery exchanges against the Kaiserliche Marine. During the First World War the Mk X served in Home Fleet squadrons, Mediterranean detachments involved in the Dardanelles Campaign, and later in secondary shore-battery roles during the Russian Civil War and interwar policing actions in areas like the Mediterranean Sea. By the Second World War surviving examples were emplaced as coast artillery in strategic locations overseen by the Royal Artillery and Coast Defence formations, supporting operations linked to the Norwegian Campaign and defending key ports such as Portsmouth.

Ammunition and Performance

Ammunition types for the Mk X included armour-piercing capped (APC) shot, high-explosive (HE) shells, and practice rounds developed at facilities like Woolwich. Typical armour-piercing shells weighed approximately 850–870 lb and achieved muzzle velocities around 2,700–2,800 ft/s depending on charge and barrel wear, providing penetration performance against contemporary plate armour such as Krupp cemented armour fielded on Kaiserliche Marine battleships. Effective gunnery ranges extended beyond 12,000 yards in practical action, and with director fire and improved rangefinders the Mk X could engage at extreme ranges approaching 20,000 yards under favourable conditions, as demonstrated in training exercises overseen by the Admiralty and recorded in reports from Home Fleet trials.

Variants and Modifications

Variants of the Mk X included factory-built differences and later Mk XI and Mk XII evolutions influenced by metallurgical advances at institutions like the Royal Arsenal, Woolwich. Modifications encompassed changes to rifling, chamber dimensions to accommodate altered cordite charges, and adaptation for coastal defence mountings by the Royal Engineers and Royal Artillery. Some Mk X barrels were relined or sleeved to extend service life, a practice also used on BL 13.5-inch Mk V naval gun and other contemporaries, while turret machinery received upgrades from firms like John Brown & Company to improve training and elevation rates.

Surviving Examples and Preservation

Surviving Mk X guns are preserved at coastal museums and military collections such as the Imperial War Museum (Duxford), National Maritime Museum exhibits, and local shore batteries converted into heritage sites in Portsmouth and the Isle of Wight. Some barrels were scavenged for memorial displays by municipal authorities and naval associations, with conservation overseen by bodies including English Heritage and volunteer trust groups. Surviving examples provide tangible links to the era of Dreadnought construction and are displayed alongside archival material from the Admiralty and ship logs of units like the Grand Fleet.
