Arado Ar 196

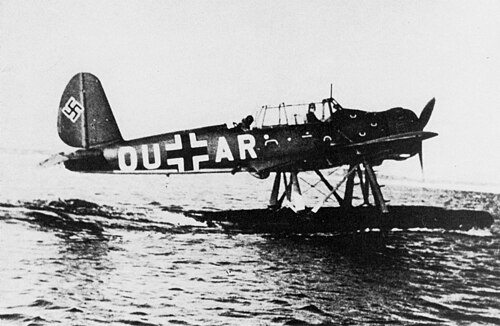

Arado Ar 196
Unknown author · Public domain · source
Name	Arado Ar 196
Type	Shipboard reconnaissance floatplane
Manufacturer	Arado Flugzeugwerke
First flight	1937
Introduced	1938
Primary user	Kriegsmarine
Produced	1938–1942
Number built	541

Arado Ar 196 was a German shipboard reconnaissance and coastal reconnaissance floatplane developed in the late 1930s. It served primarily with the Kriegsmarine during World War II and operated from battleships, cruisers, and coastal bases for maritime patrols, convoy escort, and artillery spotting. The type combined observer and pilot stations, folding wings for storage, and a mixture of reconnaissance, light attack, and liaison roles across the Atlantic Ocean, Baltic Sea, and Mediterranean Sea theaters.

Design and development

Design work for the Ar 196 began at Arado Flugzeugwerke as a response to a Reichsluftfahrtministerium specification for a shipboard reconnaissance aircraft to replace older types like the Heinkel He 60 and complement floatplane assets aboard Scharnhorst-class and Bismarck-class capital ships. The design team, led by Wilhelm van Nes and other engineers at Arado, opted for a low-wing, monoplane configuration with fixed twin floats to improve sea-keeping and handling for catapult launches from Deutschland (pocket battleship)-type cruisers and larger ships. Prototype tests involved trials at Erprobungsstelle Rechlin and sea trials coordinated with Marinenachrichtendienst observers to refine stability, corrosion protection, and folding wing mechanisms compatible with cruiser hangars and catapult gear manufactured by Schiess GmbH subcontractors.

Powerplants were selected from available inline engines; early series used the BMW 132 radial derivatives and later subvariants employed improved Junkers Jumo or BMW developments to balance range and payload. Armament and equipment installations reflected multitasking demands: a rear flexible 7.92 mm MG 15 machine gun for defense, forward-firing armament options for strafing, and underwing racks for small bombs or depth charges to permit anti-submarine action against Royal Navy and Royal Netherlands Navy convoys. Onboard reconnaissance equipment included the latest German optical cameras like the Zeiss-built aerial cameras used by Luftwaffe units and radio sets interoperable with shipboard communication arrays found on Admiral Hipper-class cruisers.

Operational history

The Ar 196 entered service with the Kriegsmarine in 1938 and quickly became the standard shipboard reconnaissance aircraft for German surface units. It flew from battleships such as Bismarck and heavy cruisers including Prinz Eugen and Admiral Graf Spee during sorties into the North Atlantic and operations related to the Battle of the Atlantic. Crews conducted spotting missions for naval gunfire during engagements like the Operation Weserübung invasions of Norway, coastal interdiction patrols during the Norwegian Campaign, and reconnaissance ahead of convoy interdiction operations coordinated with Kriegsmarine U-boat deployments. The Ar 196 also operated from coastal bases at Bergen, Tromsø, Kiel, and La Rochelle to monitor Allied shipping movements, relay sightings to surface raiders, and perform search-and-rescue tasks for downed aircrew from units like Luftflotte 5.

In the Mediterranean Sea, Ar 196 flights supported Italian Regia Marina cooperation, reconnaissance around Malta, and patrols during the Operation Torch period. The type proved durable in the rough North Atlantic conditions but suffered losses to enemy fighters from Royal Air Force squadrons, surface action by HMS Ark Royal-type carriers, and anti-aircraft fire during shipboard operations. As the war progressed and carrier-borne reconnaissance and radar-equipped patrol aircraft from RAF Coastal Command and United States Navy units proliferated, the Ar 196's vulnerability increased, prompting shifts in employment toward coastal surveillance and secondary roles.

Variants

Arado produced several major variants and subvariants to satisfy evolving operational demands and production constraints: - A-1: Initial production reconnaissance floatplane series with standard armament and camera installations, deployed aboard pre-war cruisers and training units connecting to Fliegerhorst facilities. - A-2: Improved series with strengthened airframe and modified radio gear compatible with updated Kriegsmarine shipboard transmitters used on Admiral Hipper-class vessels. - A-3: The most numerous production variant featuring enhanced engine tuning, revised cockpit instrumentation reflecting standards from Reichsluftfahrtministerium directives, and adaptation for catapult launch stresses; this subvariant often carried small bombs or depth charges. - A-4: Late-production models with minor aerodynamic refinements, corrosion-resistant coatings influenced by wartime material shortages, and some experiments with wheeled undercarriage prototypes tested ashore at Travemünde and Finkenwerder. Trainer and prototype conversions existed for dual-control conversion and evaluation by laboratories at Deutsche Versuchsanstalt für Luftfahrt. Field modifications occasionally added extra fuel tanks for extended patrols coordinated with Bordfunker radio operators.

Survivors and preservation

A limited number of Arado airframes survived postwar salvage and preservation efforts. Allied forces recovered several specimens at coastal depots in France, Norway, and Germany; some were evaluated by Royal Navy and United States Navy technical teams for intelligence and engineering studies. Restoration projects in museums such as institutions in Berlin, London aviation collections, and maritime museums have sought components and documentation from archives including the Bundesarchiv and manufacturer records from Arado Flugzeugwerke successors. Complete flying examples are absent from major collections due to widespread scrapping and the corrosive effects of saltwater, but parts, nose sections, and floats appear in static exhibits alongside artifacts related to Bismarck and Admiral Graf Spee displays.

Specifications (Ar 196 A-3)

- Crew: 2 (pilot and observer/gunner often termed Bordfunker) - Length: approximately 10.1 m - Wingspan: approximately 12.65 m - Powerplant: single radial engine delivering roughly 700–900 hp depending on production batch, sourced from contemporary BMW or Junkers series engines - Maximum speed: about 310 km/h; cruise speeds varied during patrols coordinated with ship task forces such as Task Force 5 equivalents - Range: operational patrol radius sufficient for convoy escort sorties over the North Sea and Bay of Biscay; ferry range extended with auxiliary tanks - Armament: one flexible rear 7.92 mm MG 15 machine gun, provisions for forward-firing small-caliber weapons, and underwing racks for light bombs or depth charges used against submarine contacts
