| Apple A8 | |
|---|---|
 | |
| Name | Apple A8 |
| Designer | Apple Inc. |
| Manufacturer | TSMC |
| Introduced | September 2014 |
| Architecture | ARMv8-A |
| Lithography | 20 nm |
| Frequency | 1.4–1.5 GHz |
| Gpu | PowerVR GX6450 (Imagination Technologies) |
| L2-cache | 1 MB |
| L3-cache | 4 MB (shared) |
| Transistors | 2 billion |
| Die size | 89 mm² |

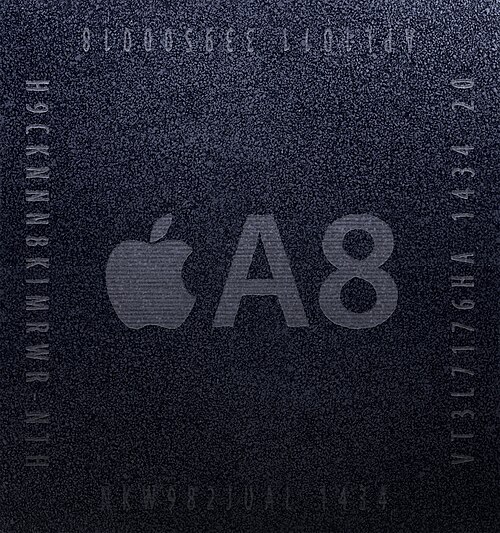

Apple A8 The Apple A8 is a 64‑bit ARMv8‑A family system on a chip (SoC) designed by Apple Inc. and introduced in September 2014. It powered multiple Apple devices and represented a generational step in microarchitecture, graphics, and fabrication, manufactured by Taiwan Semiconductor Manufacturing Company using a 20 nm process. The A8 balanced single-threaded performance, graphics throughput, and energy efficiency for mobile form factors.
Design
The SoC's microarchitectural lineage traces to Apple's internal CPU work and influences from ARM partners such as ARM Holdings and licensing relationships with ARM Ltd.; its dual‑core CPU implemented a customized 64‑bit pipeline compatible with ARMv8‑A, with a 1 MB L2 cache per chip and a shared L3 cache. For graphics, Apple selected Imagination Technologies' PowerVR GX6450 GPU, leveraging designs associated with Imagination Technologies and integrating a GPU architecture tuned for OpenGL ES and Metal. The SoC incorporated numerous Apple silicon subsystems engineered in collaboration with supplier organizations like Dialog Semiconductor, Broadcom Inc., and Cirrus Logic to provide audio, power management, and wireless integration. System-level integration included an image signal processor and motion coprocessor interfaces influenced by sensor roadmap discussions with Bosch Sensortec and STMicroelectronics.
Performance
In single-threaded workloads the chip delivered measurable gains over its predecessor, improving integer and floating‑point throughput in tasks common to mobile platforms. Comparative benchmarks run contemporaneously by publications pitted it against competitors from Qualcomm, Samsung Electronics, and MediaTek, showing a combination of high IPC and moderate clock rates. The GPU performance improvements benefited applications and APIs promoted by organizations such as Epic Games (Unreal Engine), Unity Technologies (Unity), and Apple’s own frameworks like Metal (API), enabling richer visuals in titles from studios including Electronic Arts, Gameloft, and Rovio Entertainment.
Manufacturing and Process
TSMC produced the chip on a 20 nm planar process node; the decision involved coordination among TSMC, Apple, and supply chain partners including Foxconn and Pegatron. The 20 nm transition reduced die area and enabled a transistor count around two billion, with a die size near 89 mm². Process migration raised discussions among foundry analysts and trade organizations like SEMI and spurred comparisons with contemporaneous nodes used by Intel Corporation and Samsung, highlighting yield strategies and toolsets from equipment vendors such as ASML and Applied Materials.
Power Efficiency and Thermal Management
Energy characteristics were influenced by the 20 nm process and Apple’s microarchitectural choices, enabling sustained performance within the thermal envelopes of devices like smartphones and tablets. Power management firmware worked alongside power delivery subsystems supplied by STMicroelectronics and Texas Instruments to throttle voltage and frequency under thermal constraints. Thermal behavior in enclosed device chassis assembled by Foxconn and Pegatron was evaluated in industry testing and device teardowns; plural OEM design considerations referenced cooling approaches used in earlier mobile designs from HTC Corporation and Samsung Galaxy series.
Device Integration
The SoC debuted in consumer products engineered by Apple, appearing in devices assembled by Foxconn, and integrated with displays from suppliers such as LG Display and Samsung Display. Onboard radio interfaces and wireless stacks were paired with baseband chips and modules from Qualcomm and Skyworks Solutions for cellular and RF front‑end functionality; Wi‑Fi and Bluetooth were integrated in concert with partners like Broadcom Inc. The A8 enabled camera processing pipelines used by imaging teams at Apple, working with optical suppliers such as Sony Corporation for CMOS sensors and lens assemblies from firms like Sunny Optical Technology.
Reception and Benchmarking
At launch, technology publications and testing organizations including AnandTech, TechCrunch, The Verge, and CNET evaluated the chip, generally praising its performance-per-watt improvements and graphics capabilities. Independent benchmark suites from Geekbench, GFXBench, and Basemark produced comparative data against SoCs from Qualcomm Snapdragon families and Samsung Exynos models, with many reviewers noting better real-world responsiveness in multitasking and gaming workloads. Analysts at firms such as Gartner, IDC, and Canalys discussed the A8's role in device differentiation and its impact on smartphone and tablet market metrics.
Security and Features
Security features integrated with the SoC supported platform-level protections and cryptographic acceleration used by Apple’s secure enclave strategy, aligning with secure engineering practices described by organizations such as NIST in broader cryptographic guidance. Hardware accelerators assisted encryption, hashing, and key management workflows used by services from Apple Inc. including iCloud and device authentication mechanisms tied to Touch ID and other biometric initiatives. The SoC's architectural choices influenced later Apple silicon security roadmaps discussed at industry events like WWDC.
