Apple A7

Apple A7
Henriok · Public domain · source
Name	Apple A7

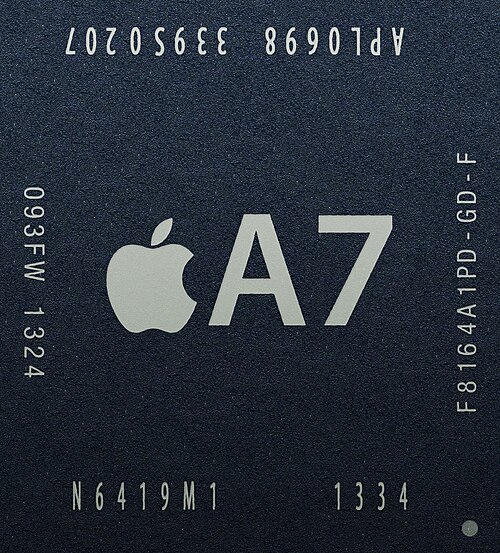

Caption	Apple A7 package on substrate (illustrative)
Produced start	2013
Produced end	2016
Slowest	1.3
Slow unit	GHz
Arch	64-bit ARMv8-A
Size from	28
Size unit	nm
Transistors	1e9
Fab	Samsung/TSMC

Apple A7 The Apple A7 is a 64-bit system on a chip (SoC) developed by Apple Inc. introduced in 2013 alongside the iPhone 5s, marking a major transition in mobile processor design. It integrated a 64-bit ARMv8-A instruction set architecture with a custom dual-core CPU microarchitecture and a PowerVR GPU, and it influenced subsequent designs across the ARM Ltd. ecosystem, Samsung Electronics fabs, and mobile silicon roadmaps. The A7's introduction affected hardware choices in products like the iPad Air and shifted software planning among developers for iOS-based applications, game engines, and multimedia frameworks.

Overview

The A7 combined a dual-core 64-bit CPU, a graphics processor from Imagination Technologies (PowerVR G6430), an integrated memory controller, and system-level interconnects into a single SoC package used in multiple Apple products. It was introduced at an Apple Special Event and marketed as the first 64-bit SoC in a mainstream smartphone and tablet, positioning Apple competitively against rivals such as Qualcomm, NVIDIA Corporation, and Intel Corporation. The move prompted commentary from industry analysts at firms like Gartner and IDC and drove software updates in the App Store ecosystem.

Architecture and Design

The CPU implemented the ARMv8-A 64-bit ISA and featured a dual-core microarchitecture codenamed "Cyclone" created by Apple's in-house silicon team. It included a 64-bit NEON SIMD engine and a hardware cryptographic acceleration unit compatible with standards used by organizations such as NIST. The A7 contained a separate motion coprocessor in later product pairings, interacting with sensors and offloading tasks traditionally managed by discrete microcontrollers. Memory architecture used LPDDR3 DRAM connected via an integrated memory controller, enabling wider bandwidth for multimedia tasks in devices like the iPad Air and iPhone 5s. The GPU, licensed from Imagination Technologies, supported OpenGL ES APIs used by engines such as Unity (game engine) and Unreal Engine for mobile games.

Performance and Benchmarks

At launch, the A7 offered significant integer and floating-point performance gains over the preceding generation used in the iPhone 5 and iPad 4th generation, delivering roughly double the CPU performance in many workloads and large gains in GPU throughput. Benchmarks published by independent testing groups compared the A7 to contemporaries from Qualcomm Snapdragon 800 series and NVIDIA Tegra 4, showing leadership in single-threaded latency and graphics rendering for several synthetic tests like those produced by Geekbench and GFXBench. These improvements enabled richer applications developed with frameworks such as Metal (API) precursor techniques, enhanced video encoding/decoding performance used in H.264 workflows, and smoother user experiences in iOS 7 animations and multitasking.

Devices and Deployment

The A7 debuted in the iPhone 5s and was subsequently used in the iPad Air (1st generation) and the iPad mini 2 (Retina). Apple deployed it across retail devices sold through channels such as the Apple Store and carrier partners including Verizon, AT&T, and T-Mobile US. Its presence in these devices influenced third-party accessory makers like Belkin and Logitech who optimized peripherals and apps for enhanced capabilities. The SoC's 64-bit support required developers distributing through the App Store to update toolchains like Xcode and compilers such as LLVM to target the new architecture for optimal performance.

Security Features

The A7 introduced hardware-accelerated cryptography and a secure enclave concept later formalized in subsequent products; its secure boot chain and integrated cryptographic primitives improved protection for keys and sensitive operations in concert with Touch ID biometric authentication introduced on the iPhone 5s. The SoC included features to support encrypted storage and secure key management aligning with standards advocated by organizations such as ISO for information security. These measures affected enterprise adoption and mobile device management scenarios involving vendors like MobileIron and AirWatch.

Manufacturing and Variants

The A7 was fabricated using 28 nm process technology with foundry partnerships involving Samsung Foundry for initial volumes and later reports citing TSMC involvement for certain production runs. The chip package integrated the processor die and other components onto a substrate assembled in facilities operated by companies like Foxconn and Pegatron. Apple and partners produced minor hardware revisions and binning variants to optimize power and yield across products; supply chain dynamics involved distributors such as Avnet and component suppliers like SK Hynix for DRAM. The A7's design influenced Apple's transition to custom silicon and in-house architecture development seen in later products including the Apple M1 family.
