Alice (spacecraft instrument)

Alice (spacecraft instrument)
National Aeronautics and Space Administration (NASA) · Public domain · source
Name	Alice
Operator	NASA
Manufacturer	Southwest Research Institute
Country	United States
Spacecraft	New Horizons; Rosetta (spacecraft) (prototype heritage)
Mission	New Horizons, testbed heritage
Type	Ultraviolet imaging spectrograph
Mass	~4.5 kg
Power	~4.5 W
Wavelength	520–1870 Å
Launch	New Horizons: 19 January 2006

Alice (spacecraft instrument) is an ultraviolet imaging spectrograph flown on the New Horizons mission to Pluto and the Kuiper Belt, with design heritage from ultraviolet instruments used on Rosetta (spacecraft). Developed by the Southwest Research Institute in collaboration with the Johns Hopkins University Applied Physics Laboratory and funded by NASA, Alice provided far-ultraviolet and extreme-ultraviolet spectroscopy to characterize atmospheres, surfaces, and escape processes at distant solar system bodies. The instrument's lightweight, low-power design enabled sensitive observations of tenuous atmospheres and produced datasets used by planetary scientists at institutions including NASA Goddard Space Flight Center and multiple universities.

Overview and Design

Alice is a compact, long-slit, ultraviolet spectrograph optimized for the far-ultraviolet (FUV) and extreme-ultraviolet (EUV) bands. The optical layout employs a reflective grating and an imaging microchannel plate detector to capture spectra across the instrument's entrance slit, enabling simultaneous spatial and spectral resolution. The design emphasizes radiation-tolerant electronics and thermal control suitable for deep-space operations during the cruise to Pluto and beyond to 2014 MU69 (Arrokoth). Alice was built to meet constraints imposed by the New Horizons spacecraft bus and the launch aboard Atlas V, balancing mass, power, and robustness for long-duration missions.

Scientific Objectives

Alice's primary scientific objectives included probing the composition, structure, and escape rates of tenuous atmospheres and exospheres on icy bodies. Specific goals were to detect and map atmospheric constituents such as nitrogen, methane, and noble gases at Pluto; to measure vertical and horizontal distributions of atmospheric species; and to characterize surface reflectance at ultraviolet wavelengths for compositional inference. By observing occultations, airglow, and solar-illuminated scattering, Alice aimed to constrain photochemical processes, atmospheric escape relevant to hydrodynamic escape theory, and the interaction of atmospheres with the solar wind and magnetospheric environments.

Instruments and Subsystems

Alice comprises several subsystems: an optical assembly with entrance aperture and slit, a holographic or ruled grating, a detector assembly using a microchannel plate stack with a photon-counting readout, and command-and-data-handling electronics. The detector employed a cesium iodide (CsI) photocathode for FUV sensitivity and a curved format to reduce aberrations. Thermal control used passive radiators and heaters integrated with New Horizons thermal systems. The electronics included pulse-processing, timing, and data compression to interface with the New Horizons flight computer and the mission's telemetry architecture.

Mission Deployments and Flights

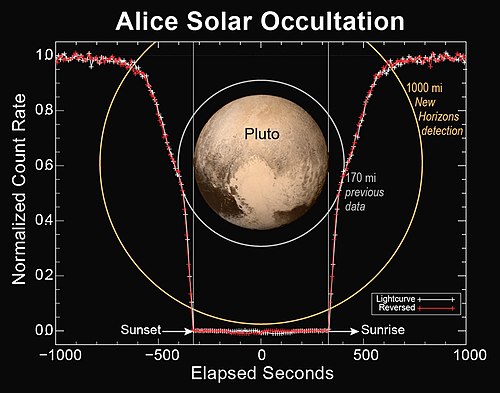

Alice was launched aboard New Horizons on 19 January 2006 during a launch window involving Cape Canaveral Space Force Station and an Atlas V vehicle managed by United Launch Alliance. During cruise, Alice conducted astrophysical calibrations and observations of interplanetary hydrogen and airglow, as well as opportunistic studies of Jupiter during the gravity-assist swingby in 2007. Alice performed high-priority observations during the 2015 Pluto flyby, including solar occultations and limb scans, and later obtained datasets during the 2019 Arrokoth encounter. Data from Alice complemented instruments such as the Ralph (New Horizons instrument) and REX (instrument) to build a comprehensive picture of target bodies.

Key Discoveries and Results

Alice detected and characterized Pluto's upper atmosphere, providing measurements of extended nitrogen and methane components and revealing escape rates that informed models of atmospheric evolution. Alice observations identified unexpected ultraviolet reflectance features on Pluto's surface and contributed to mapping haze layers and their vertical structure. During the Arrokoth encounter, Alice constrained the absence or presence of a detectable atmosphere and set upper limits on volatiles, informing theories of Kuiper belt object formation and surface processing. Alice datasets influenced interpretations related to atmospheric escape mechanisms and solar-driven chemistry at low temperatures, supporting studies by research groups at Southwest Research Institute and Cornell University.

Calibration, Operations, and Data Processing

Preflight and in-flight calibrations used stellar targets, onboard calibration lamps, and observations of the interplanetary medium to determine wavelength solutions, flat fields, and detector sensitivity degradation. Alice operations included planning sequences coordinated with the New Horizons Science Working Group and real-time command uplinks from Mission Operations teams at Johns Hopkins University Applied Physics Laboratory. Data processing pipelines at institutions such as NASA Goddard Space Flight Center performed wavelength calibration, dark-count subtraction, geometric rectification, and flux calibration, producing Level 1 through Level 3 products archived for community access through NASA Planetary Data System standards.

Legacy and Impact on Planetary Science

Alice's performance demonstrated the scientific return achievable with small, low-power ultraviolet spectrographs on deep-space missions, influencing instrument concepts for later missions to Uranus, Neptune, and small bodies in the outer Solar System. The instrument's discoveries at Pluto and Arrokoth advanced understanding of volatile retention, photochemistry, and atmospheric escape, informing comparative studies with Triton and Saturn's moons. Alice-trained analysis techniques and hardware heritage contributed to proposals and instruments developed by the Southwest Research Institute and academic partners, shaping priorities for ultraviolet observations in planetary science and heliophysics.
