Afsluitdijk

Afsluitdijk
Condor3d · CC BY 4.0 · source
Name	Afsluitdijk
Native name	Afsluitdijk
Location	Netherlands; province of North Holland; province of Friesland
Coordinates	53°5′N 5°6′E
Length	32 km
Construction period	1927–1932
Opened	1932
Designers	Cornelis Lely; Pieter Jacobus Oud
Type	Causeway, sea dike
Purpose	Flood protection, land reclamation, transportation

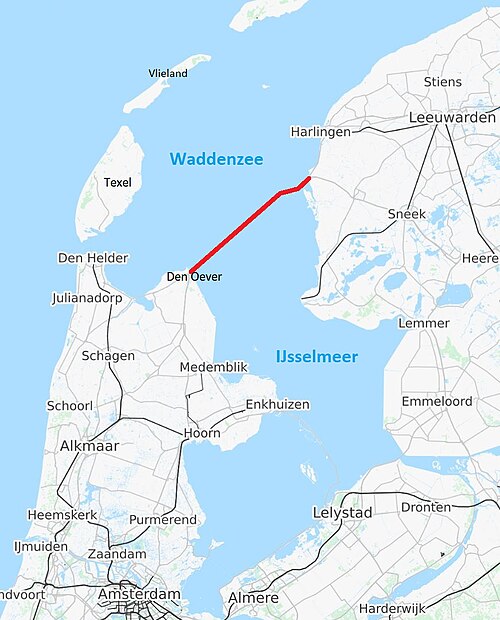

Afsluitdijk The Afsluitdijk is a major 32-kilometre causeway and sea barrier linking the provinces of North Holland and Friesland across the former Zuiderzee, completed in 1932. It transformed a tidal inlet into the freshwater IJsselmeer and enabled the creation of polders such as Wieringermeer and Noordoostpolder, while providing a strategic roadway on the A7 motorway and long-term flood defence for cities like Amsterdam and Leeuwarden.

History

The conception of the Afsluitdijk followed proposals by engineers including Cornelis Lely after the 1916 flood debates involving figures from Rijkswaterstaat and supporters in the States General of the Netherlands, inspired by earlier works such as the Zuiderzee Works. Political backing from ministries and provincial councils accelerated planning during the 1920s, amid controversies that pitted proponents of reclamation like Lely against proponents of continued maritime commerce represented in port cities such as Amsterdam, Enkhuizen, and Makkum. The 1916 and 1925 storm surges and the broader context of post‑World War I reconstruction in Europe strengthened resolve for large hydraulic works, culminating in parliamentary approval and mobilization of contractors, labour unions, and engineering firms for the 1927–1932 construction campaign.

Design and Construction

Design responsibilities were led by Lely and executed with input from consultants including Dutch civil engineers from Rijkswaterstaat and architects associated with the Interbellum era. The structure combined a central impermeable core, protective revetments, and sluice complexes at the western end near Den Oever and the eastern end at Lelydorp (now near Kornwerderzand), integrating movable gates and pumping installations to manage tidal exchange with the newly formed IJsselmeer. Construction techniques echoed precedents such as the Delta Works and leveraged mass earthmoving, quarrying operations from regions like Limburg, and coordination with rail links serving worksites in Harlingen and Amsterdam. Workforce organization mirrored contemporary large public works, involving engineering corps, private contractors, and dredging firms equipped with cutter suction dredgers and hopper barges.

Engineering and Materials

The Afsluitdijk employed a layered engineering approach using a sand core, clay puddle walls, and armour stone revetments sourced from quarries in Belgium and Germany as well as Dutch coastal deposits. Concrete structures, including sluice gates and bridge abutments, were cast on site using Portland cement supplied through Dutch suppliers intertwined with trade routes to Rotterdam and Antwerp. Innovations in geotechnical assessment drew on studies from institutions such as Delft University of Technology and techniques tested in earlier reclamation projects like Schokland; instrumentation for settlement and pore pressure monitoring advanced Dutch practice in soil mechanics pioneered by engineers collaborating with Technische Hogeschool Delft researchers. Mechanical components for locks and pumping stations incorporated metallurgy and fabrication from firms based in Groningen and Utrecht.

Function and Operation

The Afsluitdijk functions as a primary flood defence protecting inland provinces including North Holland and Friesland by attenuating storm surges from the Wadden Sea and North Sea, while sluice complexes regulate water levels in the IJsselmeer to facilitate agriculture in polders like Wieringermeer and navigation to ports such as Lelystad and Kampen. Operational management falls under the remit of Rijkswaterstaat which coordinates maintenance, tidal exchange schedules, and emergency response with regional water authorities including Waterschap Zuiderzeeland and Wetterskip Fryslân. The structure also supports the A7 motorway, enabling vehicular transit between cities like Den Oever and Kornwerderzand and connecting ferry and rail networks that serve Harlingen and Enkhuizen.

Environmental and Ecological Impact

By converting the saline Zuiderzee into the freshwater IJsselmeer, the Afsluitdijk induced major changes in marine and coastal ecosystems, altering habitats for species such as herring and flatfish and affecting fisheries based in ports like Enkhuizen and Makkum. The creation of polders and managed water levels fostered agricultural expansion and birdlife shifts observable in reserves such as Marker Wadden and Lauwersmeer National Park, and prompted mitigation measures developed with conservation bodies including Staatsbosbeheer and international partners in the Ramsar Convention. Ongoing ecological management addresses migration corridors, sediment transport along the Wadden Sea coast, and adaptive responses to sea level rise being studied by researchers at Wageningen University and Delft University of Technology.

Cultural and Economic Significance

The Afsluitdijk is a Dutch icon featured in cultural narratives, exhibitions at institutions like the Zuiderzeemuseum and artworks inspired by artists connected to the Interbellum and postwar periods, and it attracts tourism to visitor centers at Kornwerderzand and historical sites near Den Oever. Economically, the project catalysed land reclamation that enabled development of agriculture in polders such as Noordoostpolder, stimulated port traffic at Lelystad and Enkhuizen, and created durable infrastructure supporting industries in Amsterdam, Alkmaar, and Leeuwarden. Contemporary upgrades tied to climate adaptation have involved multinational contractors and funding mechanisms coordinated with the European Investment Bank and Dutch ministries responsible for infrastructure and water management.
