AN/TWQ-1 Avenger
Generated by GPT-5-miniExpansion Funnel Raw 56 → Dedup 0 → NER 0 → Enqueued 0

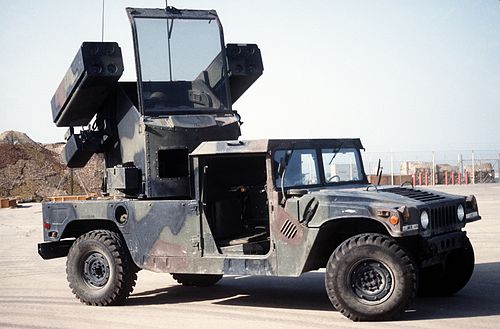

| AN/TWQ-1 Avenger | |
|---|---|
 Public domain · source | |
| Name | AN/TWQ-1 Avenger |
| Origin | United States |
| Type | Short-range air defense system |
| Designer | Boeing (McDonnell Douglas) |
| Manufacturer | Boeing Integrated Defense Systems |
| Production date | 1990s–2000s |
| Caliber | 12.7 mm |
| Primary armament | M3P .50 cal machine gun, FIM-92 Stinger missiles |
AN/TWQ-1 Avenger is a mobile short-range air defense (SHORAD) weapon system fielded by the United States Army and several allied forces during the late 20th and early 21st centuries. Designed to protect maneuver formations, installations, and convoys from low-altitude threats, the platform integrates optical sensors, a turreted heavy machine gun, and surface-launched shoulder-fired missiles in a Humvee-based turret. Development and fielding intersected with programs and institutions such as McDonnell Douglas, Boeing, Redstone Arsenal, and U.S. Army Aviation and Missile Command.
Design and Development
The Avenger concept originated from requirements set by United States Army Air Defense Command and U.S. Army Training and Doctrine Command in response to lessons from Yom Kippur War, Cold War threat assessments, and theater air defense studies influenced by NATO doctrines at SHAPE. McDonnell Douglas consolidated work begun at Redstone Arsenal and partnered with General Dynamics subcontractors to produce a turret integrating the M3P .50 caliber machine gun, the AN/AAS-38A electro-optical sensor suite, and quad FIM-92 Stinger launchers derived from Raytheon and Hughes Aircraft developments. Prototyping, testing, and qualification involved ranges at White Sands Missile Range and trials overseen by Aberdeen Proving Ground personnel, with production later continuing under Boeing Integrated Defense Systems after corporate mergers.
Technical Specifications
The Avenger mounts a turret on the M1114 or similar High Mobility Multipurpose Wheeled Vehicle chassis and pairs the M3P .50 cal gun with four ready-to-fire FIM-92 Stingers and reload stowage compatible with reload assemblies developed under Stinger missile program logistics. The AN/AAS-38A suite combines infrared sensor, laser rangefinder, and day television camera subsystems interoperable with Identification Friend or Foe transponders standardized by NATO STANAG procedures. Power and control electronics follow standards from MIL-STD-810 environmental testing and MIL-STD-461 electromagnetic compatibility requirements; communications and data links were designed to integrate with the Army’s Corps and Brigade Combat Team architectures defined by U.S. Army Forces Command and networked systems such as the Battle Command Common Services initiatives.
Operational History
Avengers entered service during the 1990s and deployed in multiple contingencies including patrol and base defense missions supporting Operation Desert Storm, Operation Enduring Freedom, and Operation Iraqi Freedom. Units equipped with Avenger served in brigade air defense detachments attached to formations operating under III Corps, XVIII Airborne Corps, and multinational force headquarters such as Coalition Provisional Authority staff elements. Recorded engagements included successful point-defense interceptions of rotary-wing and unmanned aerial vehicle incursions reported in after-action documents reviewed by U.S. Army Training and Doctrine Command analysts and theater commanders. Deployments also involved cooperative programs with partner nations participating in joint exercises at NATO training events like Partnership for Peace and multinational maneuvers at Grafenwoehr Training Area.
Variants and Upgrades
Platform derivatives and modernization efforts trace to programs managed by Program Executive Office Missiles and Space and industry partners including Lockheed Martin and Northrop Grumman subcontractors. Notable upgrades involved integration with enhanced sensor suites, improved fire-control electronics compatible with Blue Force Tracker-style situational awareness, and experiments replacing or augmenting Stinger stocks with directed-energy or kinetic solutions explored by Office of the Secretary of Defense research offices. International variants saw local equipment fitments in countries procuring Avengers through Foreign Military Sales administered by Defense Security Cooperation Agency.
Tactics and Employment
Tactical doctrine placed the Avenger within air defense umbrella layers coordinated by Air Defense Artillery Branch planners and Brigade Combat Team staff executing area denial, point defense, and convoy escort missions. Employed alongside short- and medium-range assets such as the MIM-104 Patriot and MANPADS teams, Avengers were tasked with low-altitude engagement corridors, integration with combat identification systems supervised by Joint Chiefs of Staff directives, and coordination with aircraft assets operated by U.S. Air Force units when conducting combined arms air defense. Training scenarios routinely included force-on-force exercises at National Training Center and live-fire certifications at Yuma Proving Ground.
Survivability and Countermeasures
Armor and mobility configurations used the M1114 chassis ballistic kits fielded per U.S. Army Materiel Command guidance to improve crew survivability against small-arms and fragmentation threats encountered in asymmetric environments like those described in counterinsurgency reports by Marine Corps Combat Development Command. Electronic counter-countermeasures focused on shielding and redundant wiring to meet MIL-STD-461 requirements while tactics emphasized dispersion, concealment, and shoot-and-scoot employment to mitigate anti-radiation and anti-armor threats studied by analysts at RAND Corporation and Center for Strategic and International Studies.
Operators and Deployment Locations
Primary operator was the United States Army with units assigned to divisions and brigade combat teams; Foreign Military Sales enabled operators including NATO and coalition partners that conducted collective training at NATO Training Mission-Afghanistan sites and bilateral exercises with U.S. European Command and U.S. Central Command components. Deployment locations ranged from training areas such as Fort Hood and Fort Bliss to expeditionary basing in the Persian Gulf region, with theater-level coordination involving commands like U.S. Army Central and regional logistics hubs at Camp Arifjan.
