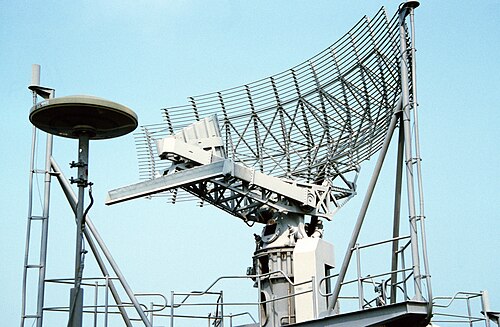

Service Depicted: NavyCamera Operator: DON S. MONTGOMERY, USN (RET.) · Public domain · source
Name	AN/SPS-49
Caption	Air-search radar
Country	United States
Introduced	1970s
Manufacturer	ITT/General Electric

AN/SPS-49 The AN/SPS-49 is a long-range, two-dimensional, airborne early warning and surveillance radar developed for shipboard use during the Cold War era. It served on a wide array of United States Navy surface combatants and allied vessels, providing horizon-search capability for anti-aircraft and air-defense coordination alongside systems like AN/SPY-1 and AN/SPS-48E. The system influenced subsequent developments in naval radar doctrine and integration with combat systems such as Aegis Combat System and NATO air-defense architectures.

Design and Development

The radar originated from programs managed by the Naval Sea Systems Command and industrial teams including ITT Corporation, General Electric, and subcontractors collaborating with research entities like Naval Research Laboratory and Massachusetts Institute of Technology laboratories. Design priorities emphasized long-range detection of high-altitude and low-altitude threats to complement three-dimensional radars used on platforms such as Ticonderoga-class cruiser and Burke-class destroyer. Early prototypes incorporated planar array and parabolic-scan concepts tested at ranges from trials in the Chesapeake Bay and evaluation exercises with units from Carrier Strike Group operations and NATO fleet maneuvers. Development milestones aligned with procurement cycles overseen by Naval Sea Systems Command contracting officers and were influenced by threat assessments from Soviet Navy long-range aircraft and cruise missile developments. Integration testing involved combat system suites produced by firms associated with Raytheon and Lockheed Martin subcontractors.

Technical Specifications

The system is a long-range, two-dimensional L-band radar employing a mechanically rotated antenna to provide 360-degree azimuth coverage and pulse-Doppler techniques for moving target indication. Core components trace lineage to signal processing modules developed in collaboration with laboratories at Bell Laboratories and digital processing advances adopted from projects involving Lincoln Laboratory and Johns Hopkins University Applied Physics Laboratory. Typical power output, pulse repetition frequency, beamwidth, and antenna dimensions were specified to meet detection ranges against targets similar to Tupolev Tu-95 and high-performance jet profiles like Mikoyan MiG-29 and cruise missiles analogous to P-800 Oniks. The electronics accommodated integration with Identification Friend or Foe transponders compliant with standards promulgated by North Atlantic Treaty Organization and data-links compatible with Link 11 and later adaptations for Link 16 and Cooperative Engagement Capability interfaces.

Operational History

Operational deployment began in the 1970s aboard Oliver Hazard Perry-class frigate and later extended to Iowa-class battleship modernizations and escort vessels participating in Cold War task forces. The radar provided early warning during operations in theaters involving Gulf War carrier task force deployments and multinational exercises such as RIMPAC and NATO Exercise Northern Wedding. Deployments supported strike coordination in conjunction with airborne platforms like E-2 Hawkeye and surface systems on Spruance-class destroyer. Service life spanned transitions in naval doctrine from Cold War blue-water engagements to littoral operations encountered during Operation Desert Storm and Operation Enduring Freedom maritime patrols. Decommissioning timelines varied as operators upgraded to phased-array systems exemplified by AN/SPY-1 installations on Ticonderoga-class cruiser and integrated command platforms like Aegis Combat System-equipped vessels.

Variants and Upgrades

Several modernizations produced Block I and Block II configurations and retrofit packages developed by contractors including ITT and Raytheon. Upgrades addressed signal processing, clutter rejection, electronic counter-countermeasures (ECCM), and reliability improvements drawing on research from MIT Lincoln Laboratory and commercial digital signal firms. Hardware refreshes added compatibility with tactical data formats endorsed by NATO and improved receiver sensitivity to detect low-observable targets resembling tactical platforms like Harrier II and anti-ship missile profiles akin to the Exocet. Some variants incorporated stabilization and vibration isolation systems derived from naval engineering work at Carderock Division of the Naval Surface Warfare Center to support installation on smaller hulls including frigates and corvettes.

Platform Integration and Operators

The radar was fitted aboard a spectrum of hulls fielded by navies including the United States Navy, Royal Canadian Navy, Royal Australian Navy, Spanish Navy, and export customers among NATO partners and allied maritime forces. Ship classes hosting the system ranged from Oliver Hazard Perry-class frigate and Spruance-class destroyer to replenishment vessels and amphibious platforms participating in multinational task groups. Integration required cooperation with combat systems from vendors such as Lockheed Martin, Northrop Grumman, and Raytheon, and interoperability testing with airborne assets including P-3 Orion and carrier-based strike groups. Operator training programs were coordinated through facilities like Surface Warfare Officers School and logistics support arranged via Naval Sea Systems Command and allied procurement channels.

Performance Evaluation and Limitations

Operational evaluations conducted by fleet commands and independent test centers highlighted strong long-range detection and reliable 360-degree coverage but noted limitations inherent to two-dimensional radars: lack of elevation data requiring supplementary three-dimensional sensors like AN/SPS-48E. Performance in heavy sea-clutter and littoral environments presented challenges analogous to those documented in tests involving low-altitude, sea-skimming threats such as Exocet and later stealthy cruise missiles. Electronic warfare assessments referenced susceptibility to advanced jamming techniques studied by analysts at RAND Corporation and countermeasure recommendations adopted from Defense Advanced Research Projects Agency research. Lifecycle constraints and maintainability pressures ultimately led many operators to transition to solid-state, phased-array replacements exemplified by AN/SPY-1 and newer multifunction radars fielded on contemporary surface combatants.
