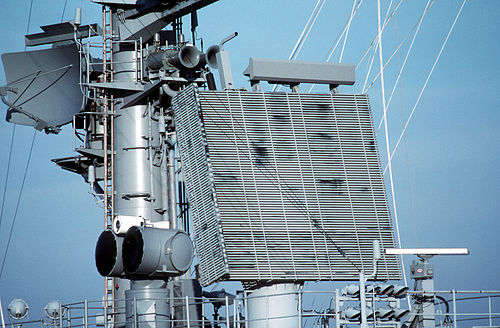

Service Depicted: NavyCamera Operator: PH2 TRACY LEE DIDAS · Public domain · source
Name	AN/SPS-48
Country	United States
Introduced	1962
Manufacturer	Raytheon, General Electric
Frequency	S band
Range	250 nmi (approx.)
Type	3D air search radar

AN/SPS-48

The AN/SPS-48 is a long-range, three-dimensional air search radar developed for the United States Navy to provide range, bearing, and altitude information for airborne targets. It entered service during the Cold War era, supporting carrier strike groups and missile escort cruisers in continental and expeditionary operations tied to events such as the Cuban Missile Crisis and the Vietnam War. The system tied into command architectures that included platforms associated with the North Atlantic Treaty Organization and interoperability with allied navies such as the Royal Navy and the Royal Australian Navy.

Design and Development

Design work for the system began as part of post-World War II naval modernization initiatives driven by lessons from the Korean War and advancing threats exemplified by long-range bombers highlighted during the Berlin Crisis of 1961. Engineering teams at General Electric and later Raytheon focused on developing a rotating planar array capable of electronic elevation measurement to complement contemporaneous projects like the AN/SPS-40 and the AN/SPY-1. The antenna design used mechanical rotation combined with stacked beamforming to generate discrete elevation lobes, an approach influenced by earlier research at Massachusetts Institute of Technology laboratories and testing ranges such as the Naval Air Station Patuxent River. The development cycle intersected with procurement programs managed by the Naval Sea Systems Command and procurement directives tied to Congressional authorizations discussed in hearings involving the United States Congress.

Technical Specifications

The radar operates in the S band, employing pulse-Doppler techniques to detect and track airborne targets across a maximum instrumented range on the order of 200–250 nautical miles depending on variant, atmospheric conditions, and antenna configuration. Signal processing incorporates monopulse and stacked-beam methods developed alongside digital upgrades influenced by work at institutions such as Stanford University and Johns Hopkins University Applied Physics Laboratory. The rotating antenna assembly provides 360-degree azimuth coverage with rotation rates selectable to match tactical demands; elevation coverage typically extends from near the horizon to zenith, with altitude resolution driven by the number of stacked beams and the vertical beamwidth. Power amplification stages trace lineage to vacuum tube and later solid-state transmitter developments pioneered at Bell Labs and industrial partners like Westinghouse Electric Corporation. Interface suites were designed to feed data into combat systems such as the Aegis Combat System and earlier consoles found on Ticonderoga-class and Iowa-class associated platforms.

Operational History

After introduction in the early 1960s, the radar equipped numerous classes of surface combatants and auxiliaries, participating in fleet operations across theaters including the Mediterranean Sea during patrols involving the Six-Day War aftermath and carrier operations in the Gulf of Tonkin period. Crews used the system for long-range air surveillance during major exercises like RIMPAC and operations coordinated with carrier battle groups centered around strike carriers such as USS Enterprise (CVN-65). Deployments extended to allied navies through transfer programs and foreign military sales, influencing surface fleet air defense doctrine in navies that included the Japanese Maritime Self-Defense Force and the Marina Militare. The radar supported air picture generation for interdiction efforts, intercepts coordinated with fighter units like those flying F-14 Tomcat and F/A-18 Hornet, and integration into layered defenses that referenced strategic lessons from incidents such as the Yom Kippur War.

Variants and Upgrades

Multiple variants evolved to address emerging threats and electronics advances. Early models employed primarily analog circuitry and mechanical stabilization; mid-life upgrades incorporated digital signal processors and improved track-while-scan algorithms developed by contractors including Raytheon and influenced by research at Massachusetts Institute of Technology Lincoln Laboratory. Later retrofit packages added features such as electronic counter-countermeasures (ECCM) and improved reliability through solid-state transmitter modules, reflecting technologies also adopted in systems like AN/SPY-3. Specific upgrade paths paralleled modernization programs for Ticonderoga-class ships and were synchronized with combat system overhauls administered by the Naval Sea Systems Command.

Platform Integration and Deployment

The radar was integrated onto a wide range of surface combatants, destroyers, cruisers, and auxiliary ships, with installations tailored for mast space, power availability, and combat system interfaces. Notable classes that carried the radar included Leahy-class, Belknap-class, and early Ticonderoga-class. Integration required coordination with shipbuilders such as Bath Iron Works and Ingalls Shipbuilding, and compliance with naval standards administered by entities like the United States Naval Research Laboratory. Shore-based testbeds and training detachments at facilities including Naval Station Norfolk and Naval Air Station Fallon supported crew qualification and systems evaluation.

Performance and Limitations

Operational performance delivered robust long-range three-dimensional detection suitable for area air surveillance and cueing of weapon systems under many conditions, but limitations included susceptibility to electronic countermeasures that evolved during conflicts like the Yom Kippur War and the need for upgrades to address low-observable targets and dense clutter environments exemplified in littoral operations near places such as the Persian Gulf. The mechanical rotation and stacked-beam approach imposed constraints on update rate and elevation resolution compared with later active electronically scanned array radars developed by firms including Lockheed Martin and Northrop Grumman. Lifecycle sustainment required depot-level overhauls and parts commonality programs coordinated with defense contractors and logistics organizations such as the Defense Logistics Agency.
