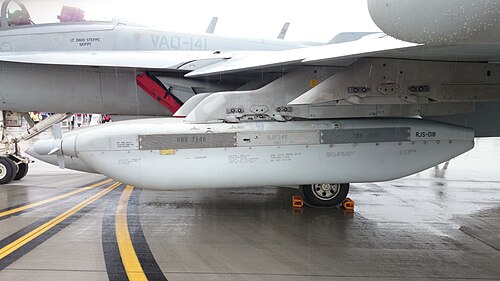

AN/ALQ-99

AN/ALQ-99
Hunini · CC BY-SA 4.0 · source
Name	AN/ALQ-99
Type	Electronic warfare system
Origin	United States
Used by	United States Navy; United States Marine Corps; Royal Air Force
Manufactured by	Grumman; Raytheon; Northrop Grumman
Service	1970s–present

AN/ALQ-99 is a carrier-based airborne electronic warfare system fielded primarily on EA-6B Prowler and EA-18G Growler aircraft that provides aerial electronic attack and tactical jamming. Developed during the Cold War era, it integrates receivers, transmitters, and pod-mounted antennas to counter radar threats from adversaries and support naval and coalition operations. The system has been employed in conflicts and exercises alongside platforms and organizations across NATO, the United States, and allied forces.

Design and Development

The program traces roots to Cold War requirements articulated by the United States Navy and Department of Defense in response to Soviet radar and missile developments after the Korean War and during the Vietnam War, with industrial work by Grumman and subcontractors including Raytheon and Northrop Grumman. Early efforts were influenced by electronic warfare research at the Naval Research Laboratory and procurement guidance from the Congress of the United States and the Office of Naval Research. Development integrated lessons from platforms such as the EA-6A Intruder and doctrinal shifts following the Yom Kippur War, while coordination occurred with NATO partners informed by exercises like Operation Ocean Venture and programs managed by the Naval Air Systems Command.

Design decisions reflected specifications driven by carrier operations on USS Nimitz (CVN-68) and other nuclear carriers, with testing at ranges including China Lake and instrumentation support from organizations like the Air Force Flight Test Center. Upgrades were staged under contracts with defense primes during the administrations of Richard Nixon and Gerald Ford and later procurement oversight from the Defense Acquisition Board and the Pentagon.

Technical Specifications

The system architecture comprises airborne transmitters, receiver-sensor suites, pod assemblies, and cockpit controls integrated with the host aircraft’s systems managed through Northrop Grumman avionics standards and interfaces certified by Federal Aviation Administration equivalents in carrier aviation. Frequency coverage spans multiple bands to counter radar sets traced to designs from Soviet Union manufacturers and later Russian systems modeled after equipment seen in Folklore of Radar collections and captured hardware catalogs.

Key hardware includes pod-mounted antenna arrays, high-power amplifiers developed under contracts with Raytheon and signal processors influenced by research from MIT Lincoln Laboratory and Carnegie Mellon University labs. Cooling systems and power distribution were engineered to shipboard constraints similar to those used by Grumman F-14 Tomcat and McDonnell Douglas F/A-18E/F Super Hornet avionics packs. Integration required compatibility assessments with systems certified by Naval Air Warfare Center Aircraft Division and testing protocols used at Patuxent River.

Operational Use

The system entered widespread service on VAQ-129 and fleet squadrons operating from Naval Air Station Whidbey Island and carrier air wings deploying from USS Enterprise (CVN-65) and later USS Theodore Roosevelt (CVN-71). It supported operations during conflicts including Operation Desert Storm, Operation Allied Force, and Operation Iraqi Freedom, providing escort jamming during strikes coordinated with units from United States Air Force and Royal Air Force squadrons. Deployments also occurred in exercises such as RIMPAC and coordinated missions with NATO and coalition partners like Royal Australian Air Force and Canadian Forces.

Tactical employment included suppression of enemy air defenses (SEAD) missions aligned with doctrines from United States European Command and United States Central Command, often in conjunction with aircraft such as the F-14 Tomcat, F-15E Strike Eagle, and F/A-18 Hornet. Squadron logistics and maintenance were overseen by Naval Air Depot facilities and support chains involving contractors like BAE Systems during upgrade cycles.

Variants and Upgrades

Field upgrades introduced electronic countermeasure improvements under programs contracted to Raytheon and Northrop Grumman and managed by Program Executive Office Tactical Aircraft Programs. Variants adapted the pod configuration, signal processing, and antenna arrays; modernization efforts paralleled developments in platforms such as the EA-18G Growler and retrofits for legacy EA-6B Prowler squadrons. Incremental upgrades addressed bandwidth, power, and emitter libraries drawing on research from MIT, Johns Hopkins University Applied Physics Laboratory, and testing at Edwards Air Force Base.

International cooperation and sales involved consultations with allies including United Kingdom Ministry of Defence and Australian Department of Defence for interoperability with systems like AWACS and naval task groups centered on carriers such as HMS Ark Royal (R09) concepts. Logistics modification kits were provisioned by contractors including Lockheed Martin for integration and depot-level maintenance.

Performance and Limitations

Operational performance demonstrated effective jamming against a range of radar emitters derived from Soviet-made S-75 Dvina and later systems; success metrics were evaluated using trials at White Sands Missile Range and exercise after-action reports from CENTCOM and EUCOM commands. However, limitations included high drag and added weight affecting carrier sortie rates, interoperability constraints with newer digital avionics suites seen on F-35 Lightning II, and maintenance demands comparable to earlier airborne electronic attack systems.

Signal processing latency and emitter identification challenges were subjects of analysis by RAND Corporation and Center for Strategic and International Studies, noting that emerging phased-array radars and anti-access/area-denial systems fielded by nations like Russian Federation and People's Republic of China reduced the relative effectiveness without continual software and hardware refreshes.

Incidents and Reliability Issues

The program experienced incidents and reliability concerns documented in squadron maintenance logs and investigations by Naval Safety Center and audit reports by the Government Accountability Office. Notable issues included pod malfunctions that affected sorties from carriers such as USS Abraham Lincoln (CVN-72), electromagnetic interference events reported during Operation Enduring Freedom deployments, and safety investigations led by Naval Air Systems Command into overheating and structural attachment faults. Maintenance and reliability improvements were implemented through service bulletins, retrofit campaigns, and contractor-led corrective actions approved by Secretary of the Navy offices.
