AK-130

AK-130
Charlyecho · CC BY-SA 3.0 · source
Name	AK-130

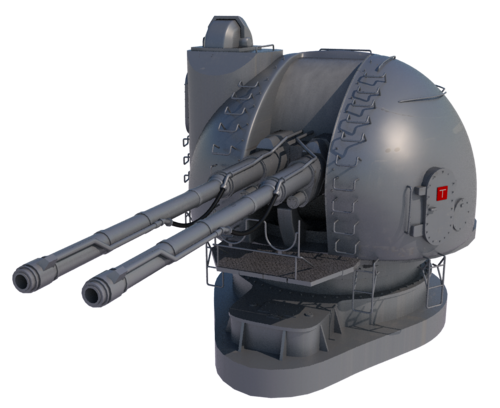

Caption	AK-130 twin 130 mm naval gun turret
Origin	Soviet Union
Type	Naval twin gun mount
Caliber	130 mm
Rate	2 × 30–40 rounds/min
Elevation	−10° to +85°
Traverse	360°

AK-130

The AK-130 is a Soviet-designed twin 130 mm naval gun mount developed during the Cold War for use aboard Soviet Navy surface combatants such as Kirov-class battlecruiser, Slava-class cruiser, and Sovremenny-class destroyer. It entered service in the late 1970s and became a standard heavy gun system alongside missile armaments on major Soviet Navy and later Russian Navy ships, participating in Soviet–Afghan War era deployments and post‑Soviet patrols.

Design and Development

The AK-130 originated from design requirements issued by the Soviet Union's Ministry of Defence and Soviet Navy technical directorates to provide a high-rate-of-fire naval artillery system to complement Bazalt, Granit, and SS-N-12 anti-ship missile arsenals aboard capital ships. Development work was conducted by the Spetssudmash and Tula KBP design bureaus under supervision of institutes tied to the Soviet Academy of Sciences and coordinated with shipbuilders at the Severnaya Verf and Baltic Shipyard. Prototypes were tested at the NDP Malaya Zemlya range with fire control inputs from experimental radar suites co-developed with Tikhomirov NIIP and Almaz-Antey affiliates. The program emphasized integration with automated fire-control systems derived from projects used on Kresta II-class cruiser refits and lessons from the Falklands War naval gunnery debates.

Technical Description

The mount is a twin-barrel, automatic loading system with separate semi-automatic ammunition hoists capable of delivering 2 × 30–40 rounds per minute. The turret houses two 130 mm barrels, an automated loader, and layers of whipple shield-style protection derived from contemporary Soviet armor development practice. Fire control integrates analog and digital inputs from the ship's main combat system such as the Mineral-ME, MR-710 Fregat, and MP-123, with targeting data provided by Mineral-family radars, electro-optical trackers, and inertial inputs from Gyrodyne systems. Mount traverse and elevation servomechanisms are hydraulically and electrically actuated with redundant circuits similar to those used in AK-100 mounts. Ammunition types included high-explosive fragmentation, semi-armor-piercing, and specialized proximity-fuzed rounds compatible with logistics chains servicing Soviet Union and Russian Federation fleets.

Operational History

The AK-130 entered service aboard major surface combatants in the late 1970s and was prominent during the 1980s fleet expansion, seeing deployments with the Northern Fleet, Pacific Fleet, Baltic Fleet, and Black Sea Fleet. It was employed in exercises such as Ocean and Vostok wartime drills, live-fire trials coordinated with Northern Fleet missile brigades and coastal aviation like Soviet Naval Aviation. Following the dissolution of the Soviet Union, AK-130‑armed ships participated in post‑Soviet operations including Mediterranean deployments tied to Russian Navy presence missions and port calls involving Sevastopol and Syria. Upgrades and maintenance cycles were affected by industrial transitions at yards like Severnaya Verf and Yantar Shipyard.

Variants and Modifications

Several production versions existed with incremental updates to fire control, loading mechanisms, and materials. Upgraded variants incorporated digital servo controls, compatibility with modern combat systems such as Tactical Data Link networks and modular ammunition handling influenced by KBP Instrument Design Bureau developments. Retrofit packages offered improved corrosion protection and reduced radar cross-section measures coordinated with stealth initiatives at shipyards like Zaliv Shipyard. Some modernizations paralleled efforts used on Pyotr Velikiy refits and Admiral Nakhimov overhaul work.

Combat Use and Effectiveness

While primarily intended for surface engagement and shore bombardment, the AK-130 also provided limited anti-aircraft fire support in conjunction with close‑in weapon systems such as the AK-630 and missile point‑defense systems like S-300F Fort. Accuracy and volume of fire made it effective for naval gunfire support in littoral operations evaluated in NATO analyses including documentation from NATO wargames. Limitations noted by analysts from institutions like Royal United Services Institute and Center for Naval Analyses included ammunition logistics, radar susceptibility, and comparative effectiveness versus modern guided munitions. Nevertheless, crews trained at facilities like Saint Petersburg Naval Institute reported high reliability under sustained firing conditions.

Operators and Deployment Locations

Primary operators have been the Soviet Navy and successor Russian Navy, with deployment aboard Kirov-class battlecruiser, Slava-class cruiser, Sovremenny-class destroyer, and select Udaloy-class destroyer refit programs. Export customers and foreign operators were limited; vessels with related 130 mm systems served regional navies engaging in exercises with People's Liberation Army Navy and Indian Navy contacts, and presence missions at ports including Sevastopol, Murmansk, Vladivostok, Novorossiysk, and Tartus.

Category:Naval guns of the Soviet Union
