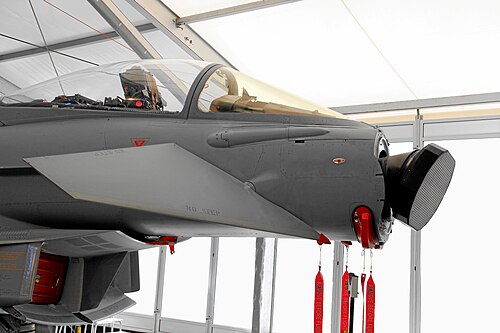

ILA_Berlin_2012_PD_193.JPG: Bin im Garten derivative work: MagentaGreen · CC BY-SA 3.0 · source
Name	AESA radar
Type	Active electronically scanned array

AESA radar

Active electronically scanned array radar is a class of phased array radar that uses numerous solid-state transmit/receive modules to steer beams electronically, offering rapid beam agility, low sidelobes, and multi-function capability. AESA systems have transformed sensor suites across Lockheed Martin, Raytheon Technologies, Northrop Grumman, Saab AB, and Thales Group, integrating with platforms such as the F-22 Raptor, F-35 Lightning II, Eurofighter Typhoon, and Arleigh Burke-class destroyer.

Introduction

AESA represents an evolution from mechanically scanned and passive electronically scanned array systems used on platforms like the MiG-29 and F-4 Phantom II. It employs thousands of independent transmit/receive modules similar to components developed for programs at MIT Lincoln Laboratory and industrial initiatives at General Electric and BAE Systems. AESA's rapid beam steering supports tasks demonstrated during exercises involving units from United States Air Force, Royal Air Force, and Japan Self-Defense Forces.

History and Development

Development traces to research at MIT Lincoln Laboratory and Cold War projects involving Soviet Union and United States Department of Defense research agencies. Early operational deployments appeared on platforms such as the Phased array radar demonstrators and production units for the AN/APG-63 series. Key milestones include integration into F-22 Raptor avionics and export variants fitted to aircraft procured by Republic of Korea Air Force and Indian Air Force. Industrial collaborations and technology transfers among Raytheon Technologies, Thales Group, and Israel Aerospace Industries accelerated adoption in the 1990s and 2000s.

Design and Technology

AESA arrays consist of many solid-state modules using components originating from semiconductor efforts at Intel Corporation and compound semiconductor advances linked to NASA research. Each module contains phase shifters, power amplifiers, and receivers enabling electronic beam steering without mechanical movement, a concept influenced by work at Bell Labs. System architecture integrates signal processing from processors like those produced by NVIDIA and legacy platforms tied to Honeywell International. Cooling solutions derive from industrial practices at Siemens and Caterpillar Inc. engineering. AESA design balances aperture size, element count, frequency bands (L, S, C, X, Ku, Ka), and waveform agility developed alongside standards from IEEE and test facilities including Sandia National Laboratories.

Variants and Applications

Variants range from compact airborne packages for fighters and unmanned platforms used by General Atomics to large naval arrays installed on Arleigh Burke-class destroyer and Zumwalt-class destroyer vessels. Ground-based early warning systems for organizations like North Atlantic Treaty Organization members utilize AESA for air surveillance, while spaceborne proposals involve programs with European Space Agency and Roscosmos. Industrial variants include maritime navigation sensors for Royal Netherlands Navy and civilian air traffic applications coordinated with Federal Aviation Administration initiatives. Export models have equipped forces such as the Turkish Air Force and Brazilian Air Force through contracts with firms like Embraer.

Performance and Capabilities

AESA provides rapid beam steering measured in microseconds, electronic nulling against jamming observed in tests with assets from the United States Navy and United States Air Force, and simultaneous multi-mode operation combining air-to-air, air-to-ground, and electronic warfare roles. Detection ranges and tracking density scale with element count and power per module, metrics evaluated in trials by Lockheed Martin and Northrop Grumman. The technology supports low probability of intercept techniques studied in academic settings at Massachusetts Institute of Technology and Stanford University, and enables synthetic aperture radar imaging used by programs at Jet Propulsion Laboratory.

Operational Use and Deployment

Operational fleets with AESA include F-22 Raptor and F-35 Lightning II squadrons, naval task groups centered on Arleigh Burke-class destroyer and Horizon-class frigate platforms, and air defense units in countries such as France, Israel, and South Korea. Exercises involving NATO and coalition partners have demonstrated AESA roles in integrated air defense systems alongside assets like the Patriot (missile system) and cooperative engagement capability installations. Maintenance and logistics chains involve suppliers such as Honeywell International and service regimes informed by studies at RAND Corporation.

Limitations and Countermeasures

Limitations include susceptibility to high-power microwave effects studied at Sandia National Laboratories and thermal management challenges highlighted by research from Oak Ridge National Laboratory. Adversaries deploy countermeasures including low observable technologies on platforms like the B-2 Spirit and tactics tested by forces from the Russian Aerospace Forces and People's Liberation Army Air Force; electronic attack measures and coordinated decoys aim to overwhelm array resources. Export controls such as those enforced by Bureau of Industry and Security and international agreements involving Wassenaar Arrangement influence proliferation and upgrade cycles.
