AC4400CW

AC4400CW

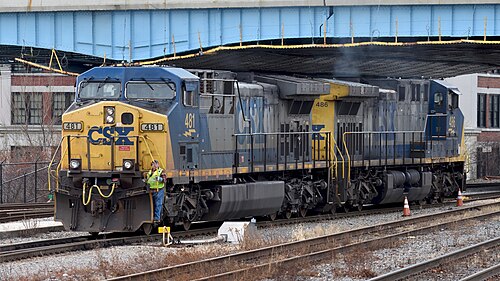

4300streetcar · CC BY 4.0 · source
Name	AC4400CW
Powertype	Diesel-electric
Builder	General Electric Transportation Systems
Buildmodel	GE AC4400CW
Builddate	1993–2004
Totalproduction	1,425
Aarwheels	C-C
Gauge	4 ft 8+1⁄2 in (standard gauge)
Length	73 ft 8 in
Weight	432,000–440,000 lb
Primemover	GE 7FDL16
Enginetype	Four-stroke V16 diesel
Aspiration	Turbocharged
Displacement	10,200 cu in
Tractionmotors	Six GE 5GEB13B7
Maxspeed	74–75 mph (design)
Poweroutput	4,400 hp
Tractiveeffort	Starting: 185,000 lbf (approx.)
Locale	North America, Mexico, Australia

AC4400CW

The AC4400CW is a heavy-duty six-axle diesel-electric freight locomotive produced by General Electric Transportation Systems between 1993 and 2004. It was designed for high-adhesion, high-horsepower service on Class I freight railroads such as Union Pacific Railroad, BNSF Railway, CSX Transportation, and Canadian Pacific and exported for use on networks like Australian National. The design integrates GE's AC traction technology, modular electronics, and a 4,400 horsepower 16-cylinder prime mover to address demands from Santa Fe Railway mergers and deregulation episodes such as the Staggers Rail Act.

Design and Specifications

The AC4400CW uses a wide-nose safety cab influenced by Federal Railroad Administration standards and crashworthiness recommendations from agencies including the National Transportation Safety Board and standards referenced by Association of American Railroads. Its frame and truck design descend from GE's earlier Dash 9 and C40-8WM platforms, combining a welded mainframe, cast-steel bolster components, and GE's HTCR or CEP traction trucks. The GE 7FDL16 prime mover traces lineage to engines used in models like the GE C30-7 and incorporates turbocharging and electronic fuel control derived from research by Sandia National Laboratories programs and industry efforts led by American Association of Railroads committees. The AC traction package uses insulated-gate bipolar transistor (IGBT) or gate turn-off thyristor (GTO) based inverters, diagnostics compatible with Association of American Railroads standards, and a microprocessor control system influenced by work at MIT and University of Illinois Urbana–Champaign on locomotive power electronics. Safety and crew ergonomics reference guidelines from Occupational Safety and Health Administration and industry unions such as the Brotherhood of Locomotive Engineers and Trainmen.

Power and Performance

Rated at 4,400 horsepower, the AC4400CW delivers high continuous tractive effort through alternating-current traction motors controlled by inverter systems developed by GE Transportation engineers and tested against benchmarks set by Federal Railroad Administration trials. The locomotive's adhesion performance benefits from AC traction allowing sustained low-speed torque suited for heavy coal and intermodal trains on grades prevalent in corridors such as the Sierra Nevada and Rocky Mountains. Dynamic braking, utilizing power dissipation through resistor grids, complements train handling in descent scenarios studied in route analyses by Union Pacific Railroad and Burlington Northern Santa Fe engineering divisions. Fuel efficiency and emissions performance were evaluated in contexts shaped by Environmental Protection Agency regulations and industry responses similar to those that influenced later Tier 0 and Tier 2 standards.

Operational History

Introduced amid consolidation in the North American freight sector following mergers involving Atchison, Topeka and Santa Fe Railway and Chicago, Burlington and Quincy Railroad, the AC4400CW became a backbone locomotive for heavy-haul service. Early adopters included Santa Fe successor systems and Union Pacific Railroad, which deployed the type across transcontinental routes and in unit-train coal service on lines such as the Powder River Basin corridors. International deliveries supported operations for entities like Cochise contractors in export projects and state operators in Mexico where private rail operators modernized fleets after privatization influenced by policy shifts comparable to those seen in Argentina and Chile. The class saw involvement in notable operational events overseen by Federal Railroad Administration investigations and featured in heritage excursions organized by groups like the Illinois Railway Museum.

Variants and Modifications

Over its production run, the base model spawned variants and rebuild programs including cab modifications, emissions retrofits, and throttle control upgrades by contractors such as National Railway Equipment Company and GE Transportation's own service divisions. Some units were rebuilt into lower-horsepower or emission-compliant configurations reflecting programs similar to the GENESIS and AC6000CW upgrade paths. Operators applied modifications like microprocessor control updates influenced by work at General Electric Global Research and retrofits to incorporate event recorders mandated by Federal Railroad Administration rules. Rebuilds also included conversion to remote distributed power compatible with systems developed by Electro-Motive Diesel competitors and integration with positive train control hardware tied to Federal Railroad Administration and Department of Transportation initiatives.

Service Use and Operators

Major North American operators of the type included Union Pacific Railroad, BNSF Railway, CSX Transportation, Norfolk Southern Railway, and Canadian Pacific. Industrial and regional users comprised entities in the Powder River Basin coal network, intermodal carriers operating through ports like Los Angeles Port of Long Beach, and mining contractors in Australia connected to suppliers such as Rio Tinto and BHP. Leasing companies including GE Capital Rail Services and GATX Corporation placed units with shortline and regional carriers adapting to freight growth trends analyzed by the Association of American Railroads. Preservation efforts have seen individual units acquired by museums like the Illinois Railway Museum and heritage groups tied to corporate history at General Electric.
