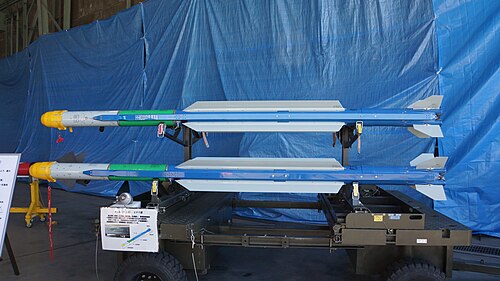

AAM-5

AAM-5
Hunini · CC BY-SA 4.0 · source
Name	AAM-5
Origin	Japan
Type	air-to-air missile
Service	2004–present
Manufacturer	Mitsubishi Heavy Industries
Weight	89 kg (approx.)
Length	3.1 m
Diameter	127 mm
Wingspan	0.6 m
Speed	Mach 3 (claimed)
Guidance	imaging infrared seeker, inertial guidance
Warhead	blast-fragmentation
Propulsion	solid rocket motor
Launch platforms	Mitsubishi F-2, Mitsubishi F-15J, Mitsubishi F-2 (fighter)

AAM-5 is a Japanese short-range air-to-air missile developed for high off-boresight engagement and helmet-mounted sight employment. It entered service in the early 2000s as part of Japan's effort to modernize air combat armament and to replace earlier guided missiles. The program involved collaboration among Japanese defense industry and research institutions to meet requirements for improved seeker sensitivity, maneuverability, and lethality.

Development

Development of the AAM-5 began in the 1980s and 1990s within programs overseen by Ministry of Defense (Japan), Technical Research and Development Institute and contractors such as Mitsubishi Heavy Industries, Japan Steel Works and Fuji Heavy Industries. Influences included lessons from engagements like the Falklands War and doctrinal shifts reflected in exercises with partners such as United States Air Force and Royal Air Force. Requirements emphasized an imaging infrared seeker capable of discriminating targets during Gulf War–era encounters and integration with helmet-mounted cueing systems used by platforms like the Mitsubishi F-2 and F-15J. Testing regimes were conducted over ranges near Kanoya Air Base and test facilities operated by Japan Maritime Self-Defense Force contractors, with prototype design iterations evaluated against competing concepts from Raytheon, BAE Systems, and MBDA.

Design

The missile's design centers on a small-diameter, high-thrust solid rocket motor combined with cruciform control surfaces and thrust-vectoring capability influenced by work at National Aerospace Laboratory of Japan. Guidance integrates an infrared imaging focal-plane array seeker developed from research at Osaka University and sensor firms linked to NEC Corporation and Mitsubishi Electric. Avionics include an inertial measurement unit with digital signal processing similar to systems fielded by Honeywell International and data-bus compatibility with avionics suites from Lockheed Martin and Raytheon. The warhead uses a directional blast-fragmentation concept drawing on lethality studies from Ballistic Research Laboratory-style modeling and safety protocols aligned with standards from Japan Self-Defense Forces testing agencies.

Variants

Several incremental variants emerged: an initial production baseline optimized for legacy helmet systems installed on F-15J; an improved seeker version with enhanced countermeasure resistance influenced by electronic warfare research tied to AN/ALQ-184-class studies; and proposals for extended-range motor modifications paralleling concepts explored by MBDA ASRAAM and AIM-9X programs. Export and domestic upgrade paths considered integration with platforms such as the Eurofighter Typhoon in conceptual studies, and potential data-link adaptations echoed in cooperative projects with United States Navy contractors.

Operational History

Operational deployment began with service entry on Japanese fighters conducting air defense patrols over airspace surrounding Okinawa Prefecture and Hokkaido Prefecture. The missile has featured in intercept training missions with USAF units based at Kadena Air Base and bilateral exercises like Exercise Cope North and Red Flag-adjacent training events. Operational evaluations emphasized within-visual-range engagements informed by tactics from US Navy and Royal Australian Air Force maneuver doctrines. No combat firings have been publicly reported; the missile's service record is primarily in training, air policing, and fleet standardization across Japan Air Self-Defense Force squadrons.

Technical Specifications

- Manufacturer: Mitsubishi Heavy Industries - Role: short-range, high off-boresight air-to-air missile akin to AIM-9 Sidewinder-class systems. - Length: ~3.1 m, influenced by packaging constraints of F-15J pylons and internal carriage studies from Lockheed Martin. - Diameter: 127 mm; lightweight structure benefits from metallurgy sourced from firms such as Japan Steel Works. - Weight: approx. 89 kg; propulsion similar in concept to motors used by AIM-9X and ASRAAM. - Speed: up to Mach 3 (manufacturer claim); maneuverability augmented by thrust-vectoring control analogous to systems designed by MBDA engineers. - Guidance: imaging infrared seeker with focal-plane array, inertial guidance and proportional navigation comparable to sensors developed with expertise from NEC Corporation and Mitsubishi Electric. - Warhead: blast-fragmentation with radar and infrared proximity fuzing practices influenced by NATO standards. - Launch platforms: integrated on Mitsubishi F-2, F-15J, and proposed for future Japanese fighters.

Operators

- Japan Air Self-Defense Force — primary operator across multiple fighter squadrons based at installations including Naha Air Base and Chitose Air Base. - Potential operators in concept studies included partner nations such as Australia and United States defense agencies during cooperative evaluation exchanges.

Comparable Weapons

Comparable short-range, high off-boresight missiles include AIM-9X, MBDA ASRAAM, IRIS-T, and MICA IR. These systems share features such as imaging seekers, helmet-mounted cueing compatibility, and high-g maneuverability used by operators like USAF, Royal Air Force, Luftwaffe, and Royal Australian Air Force in contemporary air combat roles.
