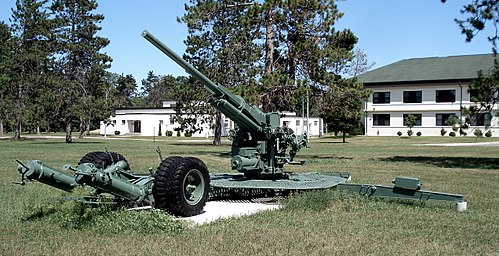

90 mm M3 gun
The 90 mm M3 gun was an American heavy anti-aircraft and dual-purpose artillery piece developed on the eve of World War II and deployed extensively by the United States Army and allied forces during the World War II and early Korean War. Designed to engage high-altitude aircraft and serve in an anti-tank and coastal defense role, the M3 bridged the gap between lighter automatic weapons and heavy artillery, influencing postwar medium-caliber anti-aircraft doctrine and armored-vehicle armament. The weapon's development involved several U.S. arsenals and manufacturing firms, and it saw service mounted on fixed emplacements, towed carriages, and armored vehicles.
Development and Design
The M3 originated from prewar experiments at Rock Island Arsenal and Watervliet Arsenal following lessons from the Spanish Civil War and the rise of the Luftwaffe in Europe. Early prototypes tested vertical-traverse mountings and high-velocity 90 mm projectiles to counter bombers used by the German Luftwaffe and tactical aircraft supporting the Wehrmacht. Development incorporated fire-control collaboration with systems designed by General Electric and the Bell Telephone Laboratories fire-control teams used by the Army Air Forces and Coast Artillery Corps. The design process involved input from the Ordnance Department and coordination with industrial contractors including Chrysler and Baldwin Locomotive Works to increase production capacity ahead of commitments under the Lend-Lease Act.
Technical Specifications
The M3 was a 90 mm (3.54 in) caliber, single-barrel, trunnion-mounted gun with a vertical sliding-wedge breech and semi-automatic breech operation adapted from earlier M1 90 mm concepts. Typical technical figures: bore length of 52 calibers, muzzle velocity approximately 2,700 ft/s with armor-piercing rounds, barrel rifling optimized for high-altitude ballistic performance, and a maximum vertical ceiling exceeding 30,000 ft when paired with proximity and timed fuzes developed by Bell Laboratories and Westinghouse. The carriage allowed elevation to near-vertical angles for anti-aircraft engagement and rapid traverse for tracking fast targets, integrating with analog predictors such as the M7 Director and radars like the SCR-584 produced by Western Electric and MIT Radiation Laboratory collaborators. Crew served the gun with a detachment patterned after Coast Artillery organization tables and typically included loader, aimer, layer, and commander positions.
Operational History
The M3 entered U.S. service prior to the Attack on Pearl Harbor and was deployed in air defense belts around industrial centers including New York City, Norfolk, and San Francisco Bay Area during World War II. Overseas, batteries equipped U.S. Army Ground Forces and Army Air Forces installations in the European Theater of Operations and the Pacific Theater of Operations, notably during the Normandy landings and the Guam and Okinawa campaigns. Allied use included British service with the Royal Artillery and Free French emplacements defending ports such as Cherbourg. In the early Korean War, towed and self-propelled M3s provided anti-aircraft and direct-fire support on the peninsula for United Nations Command forces. The gun proved effective against high-altitude bomber threats until superseded by guided missile systems during the Cold War.
Variants and Modifications
Variants included towed carriage mounts, fixed emplacements for coastal defense under the Harbor Defense programs, and self-propelled adaptations such as the turreted 90 mm on the M36 Jackson and the M26 Pershing chassis experiments. Anti-aircraft mount changes produced the M3A1 and carriage updates standardized as M2A1 in some batteries; adaptations for vehicle use required recoil system modifications and modified breech housings for turret ring clearance. Several experimental modifications tested proximity fuze integration produced by Applied Physics Laboratory-linked teams and adaptations for naval use informed later 5"/38 caliber gun improvements in fire control.
Ammunition
Ammunition types included high-explosive, armor-piercing, anti-aircraft common, and later timed and proximity-fuzed shells developed during collaboration between Dayton Project contractors and ordnance laboratories. Notable rounds were the M71 high-explosive common shell, AP-T armor-piercing tracer, and VT-fuzed anti-aircraft projectiles that dramatically increased lethality against Heinkel and Mitsubishi bomber formations. Ammunition logistics were managed through depots such as Anniston Army Depot and Frankford Arsenal, with specialized storage for cartridge cases and fuzes under Ordnance Department protocols.
Platform Integrations
The 90 mm M3 served on static pedestal mounts in coastal batteries at locations including Harbor Defenses of San Francisco and on towed split-trail carriages deployed in continental air defense. Self-propelled integrations included mounting in the T26 and T27 turret experiments, the M36 tank destroyer turret adaptation used against Panzer formations in Europe, and trials on the M19 Multiple Gun Motor Carriage conceptually paired with radar-directed directors such as the SCR-584. Naval and armored vehicle trials informed cross-branch standardization attempts between the Coast Artillery Corps and Armored Force.
Legacy and Influence
The M3's combination of high-velocity projectile performance and dual-purpose capability influenced postwar medium-caliber anti-aircraft development in the United States Army and allied nations, feeding lessons into the MIM-3 Nike Ajax missile program and medium-caliber automatic AA systems. Surplus M3 barrels and mount components were studied by ordnance schools at Fort Sill and museums including the National Museum of the United States Army for preservation and education. The gun's operational record against both aircraft and armored targets informed NATO artillery doctrine during the early Cold War and influenced weapons choices by emerging armed forces including Republic of China Armed Forces and Republic of Korea Armed Forces.
