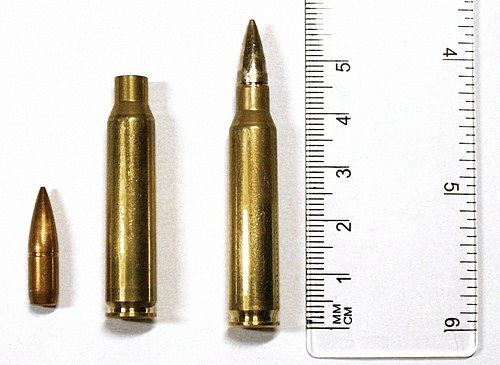

5.56×45mm NATO

5.56×45mm NATO
Clément Dominik · CC BY-SA 3.0 · source
Name	5.56×45mm NATO
Origin	Belgium; United States
Type	Rifle cartridge
Service	1970s–present
Used by	Numerous NATO and allied forces
Designer	Fabrique Nationale; Springfield Armory; Remington
Design date	1950s–1970s
Production date	1960s–present
Variants	SS109, M855, M193, Mk 262, FN SS197SR
Length	57.40 mm
Case type	Rimless, bottlenecked

5.56×45mm NATO is a rimless, bottlenecked intermediate rifle cartridge standardized by NATO in the early 1980s and widely adopted by armed forces, law enforcement, and civilian shooters. It evolved from earlier small-caliber high-velocity concepts developed in Belgium and the United States and has influenced infantry weapon design, tactics, and logistics across NATO, the Warsaw Pact successor states, and many non-aligned militaries. The cartridge is associated with service rifles, light machine guns, and carbines used in conflicts from the Cold War to contemporary operations in the Middle East and Africa.

History and development

Development traces to experiments at Fabrique Nationale and trials influenced by work at Springfield Armory, Armalite programs, and small-caliber concepts promoted by theorists in the United States Army and NATO research groups. Early U.S. work produced the M193 projectile adopted for the M16 rifle, while European designers at FN Herstal developed the SS109 for interoperability with NATO requirements and the STANAG 4172 standardization process. Cold War logistics imperatives, lessons from the Vietnam War and debates within the Department of Defense and NATO contributed to adoption decisions that culminated in the 1980 NATO standardization of the cartridge and later procurement by militaries including United Kingdom, Germany, France (selected for some units), Canada, and Australia.

Cartridge design and specifications

The cartridge uses a 45 mm overall length, a 23 mm case length, and a 5.56 mm (nominal) bullet diameter, conforming to STANAG dimensional profiles and chamber pressures specified by NATO test protocols. Key manufacturing and proofing organizations such as CIP and NATO publish pressure and dimensional parameters that munitions producers like Remington, Winchester, FN Herstal, and PMC follow. Typical projectiles include the 55‑grain M193, 62‑grain SS109/M855 with a steel penetrator, and heavier match bullets such as the 77‑grain Mk 262 developed through collaboration between Naval Surface Warfare Center Crane Division and private firms. Cartridge components—primers, propellants, and bullet jackets—are sourced from global suppliers meeting military specifications and inspection by national arsenals and contractors like Lake City Army Ammunition Plant.

Ballistics and performance

External ballistics depend on projectile mass, muzzle velocity, and barrel length; common configurations produce muzzle velocities from about 900 to 1,000 m/s. Typical terminal effects result from yaw, fragmentation, and energy transfer influenced by bullet construction and impact velocity; documented performance was evaluated during trials by organizations such as U.S. Army Research Laboratory and academic studies at institutions including Ballistics Research Laboratory. Effective ranges for point targets with service optics and iron sights are commonly cited to 300–600 m, while machine gun employment and precision ammunition extend practical reach. Penetration against intermediate barriers and body armor varies between M193, SS109/M855, and newer designs, with tests by Institute of Naval Medicine and independent laboratories informing procurement of ammunition and protective equipment.

Variants and commercial equivalents

Military variants include the U.S. M193 and M855/SS109, the Belgian SS197SR, and specialized loads such as the Mk 262 and the NL205. Commercial equivalents are marketed by firms like Federal Premium, Nosler, Hornady, and Black Hills Ammunition offering match, hunting, and barrier-optimized bullets. Wildcat and proprietary forms—5.56 NATO chambering in upper receivers, .223 Remington variants, and improved-pressure cartridges—are produced by gunsmiths, commercial manufacturers, and competition teams such as those in International Practical Shooting Confederation events. Interchangeability issues between .223 Remington and the NATO chamber are managed through standards, with chambers like the SAAMI .223 Remington and NATO-spec designs accommodating different maximum pressures and throat dimensions.

Military use and adoption

Adoption by the United States Armed Forces and NATO partners led to widespread issuance in service rifles including the M16 rifle, M4 carbine, FN SCAR, Steyr AUG, and commercial derivatives used by special operations units such as United States Special Operations Command units and allied counterparts. Light support weapons like the FN Minimi, designated as M249 in U.S. service, and various squad automatic weapons employ the cartridge for logistics commonality. Doctrinal changes in infantry tactics, influenced by experiences in the Gulf War, War in Afghanistan (2001–present), and Iraq War, reflect the balance sought between ammunition weight, recoil management, and sustained fire provided by the caliber.

Critics, controversies, and terminal effectiveness

Debate over terminal effectiveness has engaged military analysts, surgeons at institutions like Royal Centre for Defence Medicine, ballisticians from Defense Science and Technology Laboratory (Dstl), and policymakers in procurement organizations. Critics cite wounding patterns, barrier performance, and stopping power in counterinsurgency contexts, prompting development of alternative loads, body armor considerations, and discussions in forums including Small Arms Review and defense parliamentary committees in nations such as United Kingdom and Canada. Proponents emphasize reduced ammunition weight, controllable recoil for marksmanship, and logistical advantages demonstrated in comparative studies by the U.S. Army Maneuver Center of Excellence and allied research centers, while ongoing innovation yields new projectile designs to address contested performance criteria.
