Name	Zenit

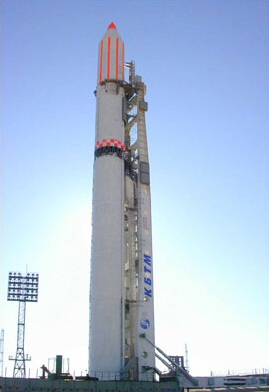

Caption	A Zenit-3SL on the Odyssey launch platform
Function	Medium-lift launch vehicle
Manufacturer	Yuzhmash
Country-origin	Soviet Union / Ukraine
Height	57–59.6 m
Diameter	3.9 m
Mass	444,900–462,200 kg
Stages	2 or 3
Status	Retired
Launches	84
Success	71
Fail	13
First	13 April 1985
Last	26 December 2017
Payloads	Intelsat, EchoStar, NASA, Roscosmos

Zenit (rocket family). The Zenit is a family of Ukrainian medium-lift launch vehicles derived from Soviet designs, renowned for its innovative use of a kerosene and liquid oxygen propellant combination. Developed primarily by the Yuzhmash plant in Dnipro, it served both military and commercial roles, most famously as the core component of the ill-fated Sea Launch venture. The family's operational history was marked by technical successes but also marred by geopolitical and financial challenges following the dissolution of the Soviet Union.

Overview

The Zenit rocket family was conceived as a versatile launch system intended to replace older Soviet designs like the R-36 and complement the Energia super-heavy launcher. Its two-stage core, the Zenit-2, was designed for high reliability and a rapid launch cadence, supporting missions for the Soviet Space Program and later for National Space Agency of Ukraine. The most notable derivative, the Zenit-3SL, was integrated into the international Sea Launch consortium, performing launches from a floating platform in the Pacific Ocean. Key payloads included commercial communications satellites for operators like Intelsat and EchoStar, as well as modules for the International Space Station.

Development and design

Development of the Zenit began in the late 1970s under the direction of the Soviet design bureau Yuzhnoye Design Office, with Vladimir Utkin as a chief designer. The rocket's first stage was powered by the innovative RD-171 engine, one of the most powerful liquid-fueled rocket engines ever built, manufactured by NPO Energomash. The vehicle featured a fully automated launch sequence and was designed for assembly in a horizontal position, similar to the Proton rocket. The upper stages varied; the Zenit-3SL used a DM-SL stage from RKK Energia, while the land-based Zenit-3F utilized a Fregat upper stage from Lavochkin Association.

Launch history

The maiden flight of the Zenit-2 occurred on 13 April 1985 from Site 45 at the Baikonur Cosmodrome, though it ended in failure due to a first-stage engine shutdown. The rocket achieved its first successful launch the following year, deploying a Tselina-2 electronic intelligence satellite for the Soviet Armed Forces. The Zenit-3SL's inaugural mission for Sea Launch in March 1999 successfully orbited a DemoSat simulator. Notable missions include the launch of the NASA CloudSat and CALIPSO Earth observation satellites in 2006. The final flight, a Zenit-3F, launched the AngoSat-1 communications satellite for Angola from Baikonur on 26 December 2017.

Variants

The primary variants include the Zenit-2, the original two-stage vehicle used for heavy military payloads into low Earth orbit. The Zenit-2SL was a modified version for the Sea Launch system, though it never flew operationally. The Zenit-3SL was a three-stage version comprising the Zenit-2S core and a DM-SL upper stage, designed for geostationary transfer orbit missions from the Odyssey platform. The Zenit-3SLB, known as Land Launch, was a configuration launched from Baikonur. The Zenit-3F, the last variant, paired the core stages with a Fregat-SB upper stage for high-energy orbits.

Launch sites

The primary launch site for land-based Zenit missions was Site 45/1 at the Baikonur Cosmodrome in Kazakhstan, leased by Roscosmos. The revolutionary Sea Launch program utilized the converted Odyssey launch platform, a former North Sea oil rig, positioned on the equator in the Pacific Ocean near Christmas Island. The Land Launch variant also operated from Baikonur, using the same infrastructure as the Zenit-2. Plans for launches from the Svobodny Cosmodrome in Russia and a new site at the Alcântara Launch Center in Brazil were proposed but never realized.

Operators

The original operator was the Soviet Space Program, with the Russian Aerospace Forces taking over military launches after 1991. The commercial Sea Launch program was operated by the multinational Sea Launch consortium, which included Boeing, RKK Energia, Yuzhnoye Design Office, and Aker Solutions. Launch services and vehicle production were managed by the Ukrainian state-owned enterprises Yuzhmash (manufacturing) and Yuzhnoye Design Office (design). The Land Launch service was a collaboration between Roscosmos and the National Space Agency of Ukraine.
