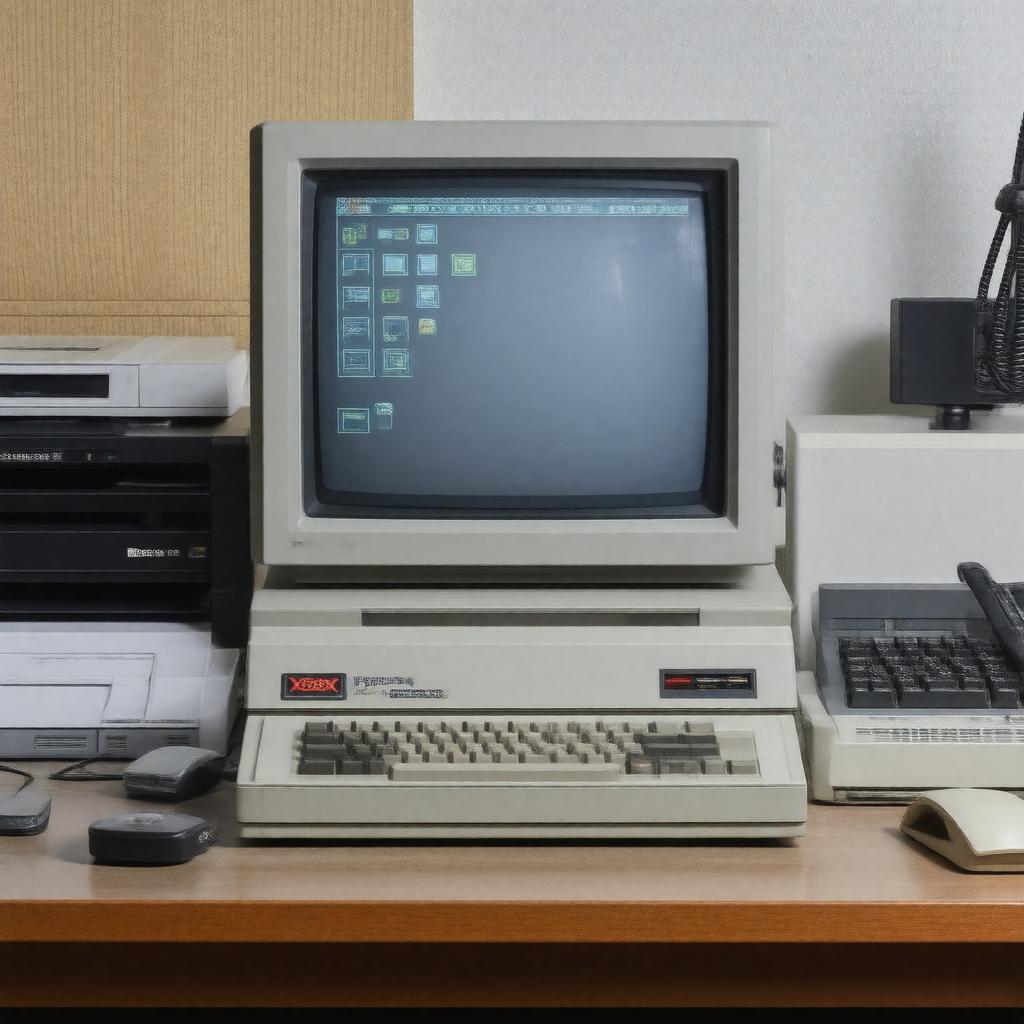

Xerox Star

Xerox Star. Officially known as the Xerox 8010 Information System, it was a revolutionary workstation introduced by the Xerox Corporation in 1981. Developed at the Xerox Palo Alto Research Center, it was the first commercial system to integrate key technologies like a graphical user interface, desktop metaphor, WYSIWYG editing, and Ethernet networking into a single product. Although not a commercial success, its pioneering concepts profoundly influenced the future of personal computing.

Development and history

The project originated from earlier research at Xerox PARC, most notably the Xerox Alto, an experimental machine that served as its direct predecessor. Key figures in its development included David Liddle, Charles Irby, and a large team of engineers and designers who aimed to create an "office of the future." The system was intended for the professional office market, competing with products from IBM and Digital Equipment Corporation. Its development was closely tied to the creation of the Pilot operating system and the Xerox Network Systems architecture. The first units shipped in 1981 with a price tag of approximately $16,000, which limited its market penetration primarily to corporations and government agencies like the CIA.

Design and user interface

The system's design was centered on the now-ubiquitous desktop metaphor, where the screen represented an office desktop containing documents and folders. It introduced the foundational concept of direct manipulation using a computer mouse to click on icons representing objects like documents, printers, and file drawers. The interface was rigorously consistent, employing principles such as WYSIWYG display, where on-screen text matched printed output, and a modeless interaction style. Key interface elements it pioneered included overlapping windows, menu bars, dialog boxes, and the use of bitmap graphics for display. This cohesive design philosophy was a radical departure from the command-line interfaces of contemporaries like the IBM PC or CP/M systems.

Hardware specifications

The workstation was built around a proprietary processor using AMD Am2900 bit-slice chips, microcoded to execute the Mesa instruction set. It featured a high-resolution, 17-inch CRT monitor displaying a monochrome bitmap of 1024 by 808 pixels. Standard memory configurations ranged from 384 KB to 1.5 MB. For storage, it relied on a 10, 29, or 40 MB hard disk drive, and included a two-button computer mouse and a specialized keyboard with dedicated function keys. A critical innovation was its built-in connection to a high-speed Ethernet network, enabling file sharing and printing to networked Xerox laser printers like the Xerox 9700.

Software and applications

The system ran the Pilot operating system, which managed memory, processes, and the network. Applications were not separate programs but tools integrated into the overall environment, including a word processor, spreadsheet, graphics editor, and email client. All documents were created and managed within this integrated framework, ensuring consistent user interaction. The software was written almost entirely in the Mesa programming language, developed at Xerox PARC. This integrated application suite set a standard for office productivity software that would later be emulated by Apple Inc. and Microsoft.

Impact and legacy

Despite its commercial failure, the system's influence on the technology industry was immense and enduring. Its concepts were directly observed and adapted by engineers from Apple Inc., notably during visits by Steve Jobs, and profoundly inspired the development of the Apple Lisa and, most successfully, the Apple Macintosh. Key developers, including Charles Simonyi and Robert Metcalfe, later brought their expertise to Microsoft and the broader Silicon Valley ecosystem, influencing products like Microsoft Windows and network technology. The integration of Ethernet, the graphical user interface, and the desktop metaphor became standard in subsequent generations of computers from Sun Microsystems, NeXT, and eventually in the ubiquitous Microsoft Windows and macOS operating systems, cementing its role as a foundational milestone in the history of computing.
