X-10 Graphite Reactor

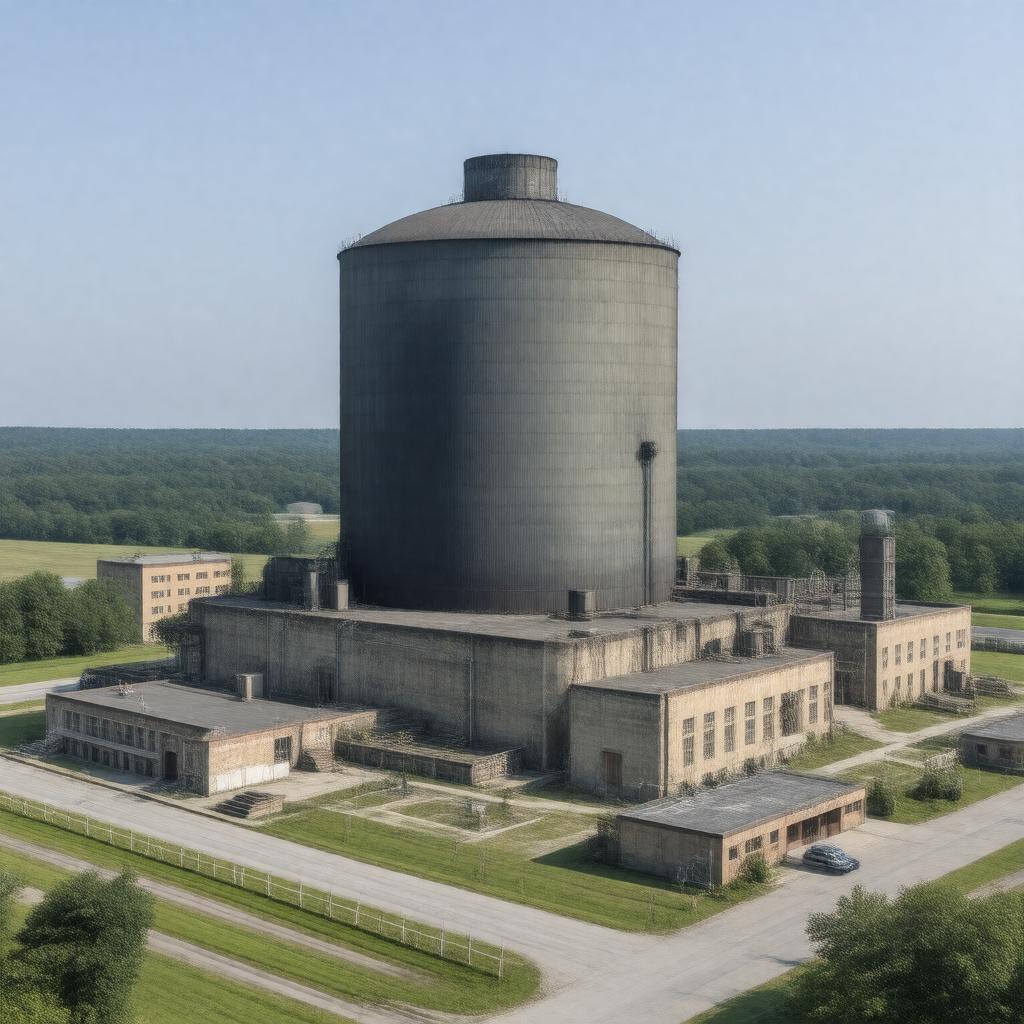

X-10 Graphite Reactor was the world's second artificial nuclear reactor and the first designed and built for continuous operation. Located at the Clinton Engineer Works in Oak Ridge, Tennessee, it served as a crucial pilot plant and plutonium production research facility for the Manhattan Project. Its success directly enabled the design and operation of the larger production reactors at the Hanford Site in Washington.

History and development

Following the breakthrough of the first sustained nuclear chain reaction at Chicago Pile-1 under Enrico Fermi in December 1942, the Manhattan Project required a pilot-scale reactor to produce research quantities of plutonium. The United States Army Corps of Engineers, led by Leslie Groves, selected the Clinton Engineer Works site in Tennessee. The design was overseen by physicist Eugene Wigner and his team at the Metallurgical Laboratory at the University of Chicago. Construction by the firm Stone & Webster began in early 1943, and the reactor achieved criticality on November 4, 1943, under the direction of physicist Arthur H. Compton.

Design and operation

The reactor was an air-cooled, graphite-moderated pile, fueled by uranium slugs sealed in aluminum cans. Its core was a 24-foot cube of graphite blocks, pierced by 1,248 horizontal channels for fuel and control rods. Cooling was provided by drawing air through the core with large fans, which was then filtered and exhausted through a 200-foot stack. The reactor operated at a power level of up to 4 megawatts, significantly higher than its predecessor, Chicago Pile-1. Operators, including future Nobel laureate Alvin Weinberg, loaded and discharged fuel slugs using remote handling tools from the front face, with irradiated slugs pushed out the rear into a deep water pool for initial cooling.

Role in the Manhattan Project

The primary mission of the X-10 Graphite Reactor was to produce milligram quantities of plutonium for chemical separation studies and to prove the viability of large-scale production. The plutonium it generated was used by chemists like Glenn T. Seaborg to develop and refine the bismuth phosphate process for plutonium separation. This chemical process data was vital for designing the massive separation facilities at the Hanford Site. The reactor also provided crucial neutron flux data, fuel irradiation experience, and operational procedures that directly informed the construction and startup of the B Reactor and its sister reactors along the Columbia River.

Post-war use and decommissioning

After World War II, the reactor was transferred to the United States Atomic Energy Commission. It became a key research tool for the newly established Oak Ridge National Laboratory, producing a wide array of radioisotopes for medical, industrial, and scientific research. It generated the first substantial quantities of cobalt-60 for cancer therapy and other isotopes for programs like the Atomic Energy Commission's "Atoms for Peace" initiative. After twenty years of service, the reactor was permanently shut down on November 4, 1963. Decommissioning involved removing fuel and coolant systems, but the reactor core was left largely intact.

Legacy and historical significance

The X-10 Graphite Reactor was designated a National Historic Landmark in 1965 and is recognized as an International Historic Mechanical Engineering Landmark. It is open to the public as part of the American Museum of Science and Energy tour in Oak Ridge, Tennessee. The reactor is celebrated as the prototype for all subsequent graphite-moderated reactors and a foundational instrument in the development of nuclear science and technology. Its operations bridged the gap between the experimental proof-of-concept at the University of Chicago and the industrial-scale production that culminated in the atomic bombings of Hiroshima and Nagasaki, while its post-war work helped launch the field of peaceful nuclear applications. Category:Nuclear research reactors Category:Manhattan Project Category:National Historic Landmarks in Tennessee Category:Oak Ridge National Laboratory
